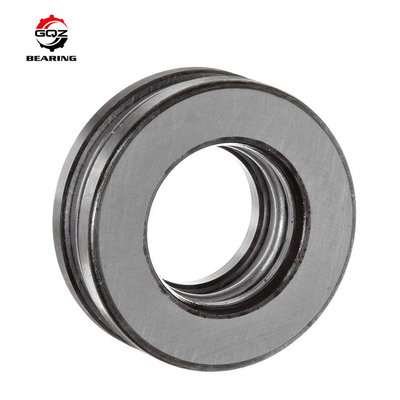

Orgional Car Clutch Thrust Industrial Ball Bearings 51212 Fast Delivery
Discription of Thrust Ball Bearing
Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Features of Thrust ball bearings
Thrust ball bearing 51212 SKF
Technical Specifications:
| Basic load ratings | ||
| dynamic | Ca | 62,4 kN |
| static | C0 | 150 kN |
| Designation | ||
| 51212 | ||
| Fatigue load limit | ||
| Pu | 5,6 kN | |
| Mass | ||
| 0,65 kg | ||
| Minimum load factor | ||
| A | 0,12 | |
| Principal dimensions | ||
| H | 26 mm | |
| D | 95 mm | |
| d | 60 mm | |
| Speed ratings | ||
| Limiting speed | 3800 r/min | |
| Reference speed | 2800 r/min | |
SKF is the world's premier manufacturer of bearings and a vast range of other related products such as maintenance tools, seals, lubrication systems, linear motion products etc,. Marat Sp. z.o.o. is an Authorized Distributor and SKF Certified Maintenance Partner. Therefore, we take the authenticity and quality very seriously and ensure that all our bearings and related products are sourced directly from the manufacturer (SKF).
Specification of thrust ball bearings
|
Own Brand |
ZGJB |
|
OEM Brand |
According to your requirement |
|
Product Name |
thrust ball bearings |
|
Series |
thrust ball bearing 52220 |
|
Rings Material |
Chrome steel-GCr15, high Carbon steel-GCR11,Stainless steel-440C,304 316 |
|
Cages Material |
steel,brass,nylon thrust ball bearing 51212 |
|
ID size |
10-400mm thrust ball bearing 51212 |
|
Quality standard |
ISO9001:2000 thrust ball bearing 51212 |
|
Precsion |
P0,P6,P5,P4 thrust ball bearing 51212 |
|
|
ABEC-1,ABEC-3,ABEC-5 etc. thrust ball bearing 51212 |
|
Clearance |
C0,C1,C2,C3,C4,C5 thrust ball bearing 51212 |
|
Noise |
Z1,Z2,Z3 thrust ball bearing 51212 |
|
Vibration |
V1,V2,V3 thrust ball bearing 51212 |
|
HRC |
58-65 thrust ball bearing 51212 |
|
Tolerance Grade |
GB/T307.1-205 thrust ball bearing 51212 |
|
Delivery time |
20-25 days thrust ball bearing 51212 |
|
Payment term |
A:30% TT in advance,and balance against BL COPY |
|
B: 100% LC AT SIGHT |
|
|
Services |
OEM,ODM,OBM Services |
|
Packing |
Single box,tube packing,industrial packing or according to customers' requirement |
|
Main Market |
Asia,Europe,America,Africa,Middle East,Australia etc. |
51100 series and also can order according to your drawings:
|
Thurst bearing Type |
Old Code |
Boundary Dimensions(mm) |
||
|
d |
D |
T |
||
|
51106 |
8106 |
30 |
47 |
11 |
|
51107 |
8107 |
35 |
52 |
12 |
|
51108 |
8108 |
40 |
60 |
13 |
|
51109 |
8109 |
45 |
65 |
14 |
|
51110 |
8110 |
50 |
70 |
14 |
|
51111 |
8111 |
55 |
78 |
16 |
|
51112 |
8112 |
60 |
85 |
17 |
|
51113 |
8113 |
65 |
90 |
17 |
|
51114 |
8114 |
70 |
95 |
18 |
|
51115 |
8115 |
75 |
100 |
19 |
|
51116 |
8116 |
80 |
105 |
19 |
|
51117 |
8117 |
85 |
110 |
19 |
|
51118 |
8118 |
90 |
120 |
22 |
