Axial Needle Roller Cage needle thrust bearing AXK1528 with Washer AS1528

1 pcs
MOQ
negotiation
Price
Axial Needle Roller Cage needle thrust bearing AXK1528 with Washer AS1528
Features Gallery Product Description Request A Quote
Features
Specifications
Stock: 30000 Sets
Product Name: AXK1528
ID: 15mm
OD: 85mm
Thickness: 2mm
Washer No.:: AS1528
Direction: Single Direction
Cage: Steel
High Light:

Cam Follower Bearing

,

Thrust Needle Bearing

Basic Infomation
Place of Origin: China Jiangsu
Brand Name: GQZ or OEM
Certification: ISO
Model Number: AXK1528
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description

Axial Needle Roller And Cage Assemblies AXK1528 with Washer AS1528



1. Specification:

Metric Series Inch series Introduction
AXK TC Thrust needle roller and cage assemblies, single cage
NTB NTA Thrust needle roller and cage assemblies, double cage
AXW   Thrust needle roller bearings with centering
AX   Thrust needle roller bearings with washer
K811,K812,K893,K874,K894   Thrust roller and cage assembly
GS811,812,893,874,894   Thrust race, outer surface grinding
WS811,812,893,874,894   Thrust shaft ring, the inner surface grinding
LS   Thrust washers, economical, no grinding inner and outer surfaces
ZS   Center washer



AS

TWA,TWAB,TWC,TWD; Thrust washer
TRA,TRB,TRC,TRD Thrust washer

2. Feature:

(1) Thrust needle roller bearing

(2) with 2 piece washer per set

(3) Steel cage
(4) Competitive price

(5) Good qualtiy

(6) Rich stock

(7) Quick delivery

(8) Single direction

(9) 1 year's quality guarantee

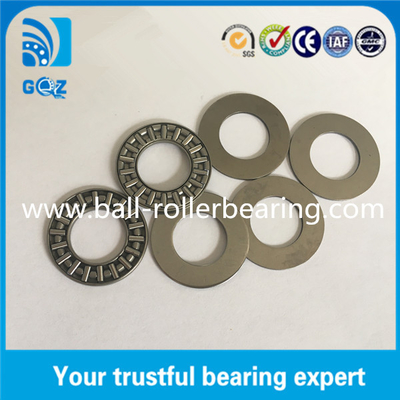

3. Bearing Picture:

Axial Needle Roller Cage needle thrust bearing AXK1528 with Washer AS1528 0

Axial Needle Roller Cage needle thrust bearing AXK1528 with Washer AS1528 1



4. We also supply following needle roller bearings:

Shaft Diameter(mm) Bearing Type Boundary Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(g)
Current Type Original Type d D B Dynamic Static Grease Oil
8 AXK0821   8 21 2 7100 13500 11000 4000 2
10 AXK1024   10 24 2 7800 24000 9500 3600 3
12 AXK1226   12 26 2 8200 26700 7200 3200 3
15 AXK1528   15 28 2 9500 33000 6500 3000 4
17 AXK1730   17 30 2 10200 36500 5500 2800 4
20 AXK2035   20 35 2 11000 43000 5000 2600 5
25 AXK2542   25 42 2 12500 538000 4500 2300 7
30 AXK3047   30 47 2 14000 656000 4100 2100 8
40 AXK4060+2AS   40 60 3 25000 1100000 3200 1900 16
45 AXK4565   45 65 3 25800 1250000 3000 1700 18
55 AXK5578   55 78 3 35000 1950000 2600 1500 28
60 AXK6085   60 85 3 38600 2400000 2500 1100 33
70 AXK7095   70 95 4 50000 2670000 2100 950 60
75 AXK75100   75 100 4 51000 2750000 1900 900 61
90 AXK90120   90 120 4 66000 4100000 1580 800 86
100 AXK100135   100 135 4 76000 5570000 1400 770 104
110 AXK110145   110 145 4 82000 6000000 1300 740 122
130 AXK130137   130 137 5
150 AXK150190   150 190 5 118000 9600000 950 580 232
160 AXK160200   160 200 5 125000 10000000 900 500 246
