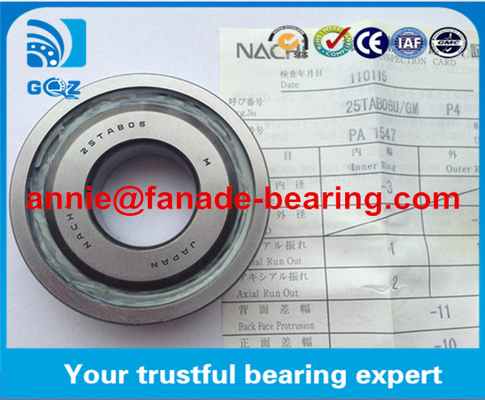

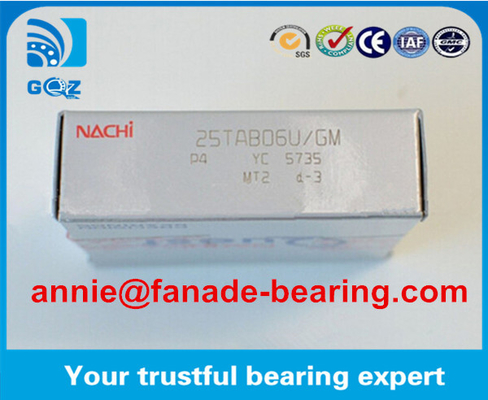

Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06 25*62*15 mm

Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06 25*62*15 mm

    • Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm
    • Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm
  • Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm

    Product Details:

    Place of Origin: JAPAN
    Brand Name: KOYO
    Certification: ISO
    Model Number: 25TAB06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 25TAB06 Lubrication: Grease Or Oil
    Certification: ISO9001:2008 Number Of Row: Single Row

    Super precision P4 NACHI ball screw bearing 25TAB06 NACHI 25TAB06, Angular contact Ball Screw support Bearings 25TAB06





    Super precision P4 NACHI ball screw bearing 25TAB06 introduction .



    NACHI ball screw bearing 25TAB06 belongs to Angular contact thrust ball bearing for screw drives, single direction, super-precision, will usually be more than two bearings used in pairs and applications to metal cutting machine tools, forging and pressing machinery, casting machinery, woodworking machinery, etc.

    Every end-user who uses NACHI ball screw bearings 25TAB06DFGMP4 all knows it's high-precision bearing,and widely used in machine tools.This kind of bearings are very durable and can be used in many ways,such as face to face,back to back and face to back.Generally,the accuracy class for 25TAB06DFGMP4 is P4/P5.Compare to standard angular contact ball bearings, ball screw bearings have longer life and better reliability.They are much smaller but can support heavier load rating,rely on their best design for among all ball bearings.



    Super precision P4 NACHI ball screw bearing 25TAB06 specifications :



    Commodity name NACHI ball screw bearing
    Bearing model bearing 25TAB06
    Bearing specification 25*62*15 mm
    Weight /KG 0.48 KG / pair
    Bearing Series TAB series
    Ring Materical Chrome Steel
    Quality standard ISO9001:2008
    Bearing Precision P4
    Main use Machine tool,Ball screw
    Service OEM service offer




    Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm

    Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm

    Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm

    Precision P4 NACHI bearing 25TAB06 for machine tools Ball Screw Bearing spindle bearing 25TAB06  25*62*15 mm




    Bearing No. Dimensions (mm)
      d D B
    15TAB04DB/GM P4 15 47 15
    15TAB04U/GM P4 15 47 15
    17TAB04DB/GM P4 17 47 15
    17TAB04DF/GM P4 17 47 15
    17TAB04U/GM P4 17 47 15
    20TAB04DB/GM P4 20 47 15
    20TAB04DF/GM P4 20 47 15
    20TAB04DT/GM P4 20 47 15
    20TAB04U/GM P4 20 47 15
    25TAB06DB/GM P4 25 62 15
    25TAB06DF/GM P4 25 62 15
    25TAB06DT/GM P4 25 62 15
    25TAB06U/GM P4 25 62 15
    30TAB06DB/GM P4 30 62 15
    30TAB06DF/GM P4 30 62 15
    30TAB06DT/GM P4 30 62 15
    30TAB06U/GM P4 30 62 15
    35TAB07DB/GM P4 35 72 15
    35TAB07DF/GM P4 35 72 15
    35TAB07DT/GM P4 35 72 15
    35TAB07U/GM P4 35 72 15
    40TAB07DB/GM P4 40 72 15
    40TAB07DF/GM P4 40 72 15
    40TAB07DT/GM P4 40 72 15
    40TAB07U/GM P4 40 72 15
    40TAB09DB/GM P4 40 72 15
    40TAB09DF/GM P4 40 90 20
    40TAB09DT/GM P4 40 90 20
    40TAB09U/GM P4 40 90 20
    45TAB10DB/GM P4 45 100 20
    45TAB10DF/GMP4 45 100 20
    45TAB10DT/GMP4 45 100 20
    45TAB10U/GM P4 45 100 20
    50TAB10DB/GM P4 50 100 20
    50TAB10DF/GM P4 50 100 20
    50TAB10DT/GM P4 50 100 20
    50TAB10U/GM P4 50 100 20
    55TAB12DB/GM P4 55 120 20
    55TAB12DF/GM P4 55 120 20
    55TAB12DT/GM P4 55 120 20
    55TAB12U/GM P4 55 120 20
    60TAB12DB/GM P4 60 120 20
    60TAB12DF/GM P4 60 120 20
    60TAB12DT/GM P4 60 120 20
    60TAB12U/GM P4 60 120 20
