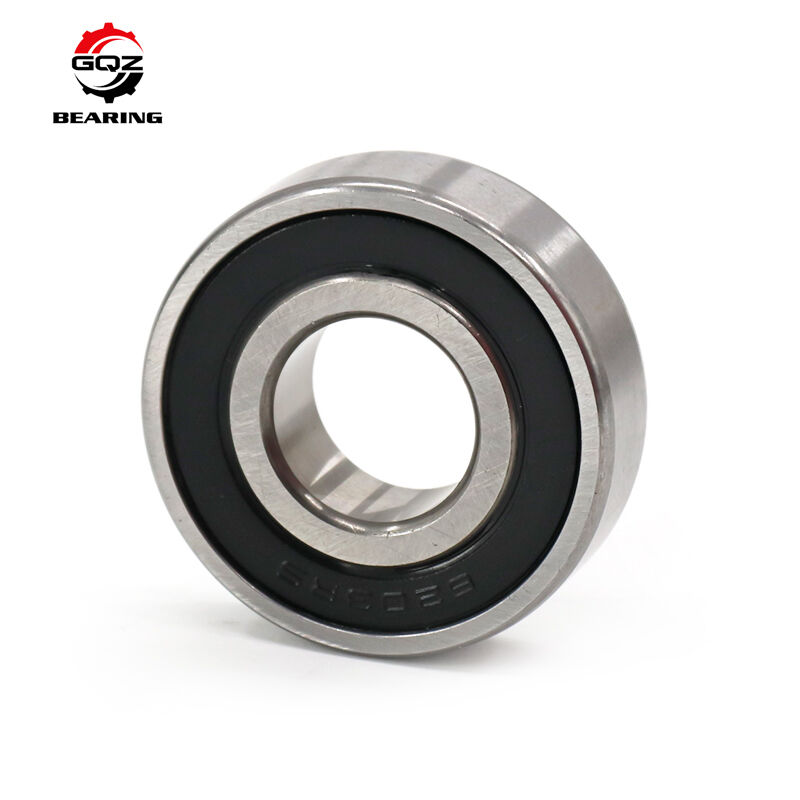

GQZ 6201 2Z/C3 Bearing 12×32×10mm Double Shielded With C3 Clearance For Motors & Automation Equipment

6201 2Z/C3 is single row deep groove ball bearing. 2Z represents double-sided stamped metal dust shields; C3 means increased internal clearance compared to standard CN clearance, adapting to thermal expansion caused by continuous operation temperature rise. This bearing can bear radial load and minor bidirectional axial load simultaneously. Double metal shields block dry dust and debris, and the bearing is pre-filled with grease for initial operation. Widely used in small and medium motors, water pumps, fans, automation equipment, agricultural machinery and medium-load rotary assemblies.

Formal quotation will be sent within 24 hours upon your inquiry.

Model

6201 2Z/C3

Dimensions

d12 mm, D32 mm, B10 mm

Net weight

approx 0.037 kg

Dynamic load rating Cr

9.72 kN

Static load rating Cor

4.92 kN

Limiting speed

Grease 11000 rpm, Oil 13000 rpm

Structure

Single row deep groove ball bearing

Material

GCr15 bearing chrome steel, stamped steel cage

Clearance

C3 enlarged clearance

Sealing

2Z double-sided metal dust shield

Alternative versions

Open type / 2RS double rubber seal available

Complete dimension drawings and load data available on request.

1. C3 extra clearance reserves allowance for thermal expansion during high-temperature operation
2. 2Z double metal shields effectively prevent dry dust from entering bearing interior
3. Capable of bearing radial load together with slight bidirectional axial load
4. Low rolling friction, stable and quiet continuous medium-high speed operation
5. Standard metric size with good interchangeability for equipment maintenance replacement
6. Customizable options: OEM laser marking, anti-rust treatment, special high-temperature grease

Universal miniature supporting component for diversified medium-load rotary machinery.

• Small and medium-sized electric motors, cooling fans and blower assemblies
• Mini water pumps and household power equipment rotating parts
• Automated equipment miniature transmission mechanisms
• Agricultural machinery and small processing equipment
• Textile machinery and packaging equipment rotary positions
• Medium-speed rotary assemblies with dusty environment and temperature rise

25 years professional bearing manufacturer

Products exported to over 50 countries worldwide

Strict inspection on raw material hardness, surface finish, load capacity and rotational smoothness before delivery

24-hour professional technical support for clearance and sealing selection guidance

Sufficient bulk stock for machinery distributors

We supply stable dimensional accuracy, reliable performance and long-term cooperative support.

GCr15 raw material chemical composition and hardness inspection

Complete quenching & tempering heat stabilization treatment

Precision superfinishing grinding for rings and steel balls

Metal shield assembly and pre-lubrication processing

Full dimension tolerance, C3 clearance testing and rotational noise inspection

If you need 6201 2Z/C3 deep groove ball bearings:

Send inquiry to obtain below supports:

• Quick formal quotation within 24 hours
• Professional clearance and model matching suggestions
• Optional open/2RS alternative configurations
• Competitive factory direct price

Contact our sales team for full technical datasheets and formal offer.

Q1: What do 2Z and C3 mean?

2Z = double-sided metal dust shields; C3 = internal clearance larger than standard CN group.

Q2: Main dimensions of 6201 2Z/C3?

12×32×10 mm deep groove ball bearing.

Q3: When to choose C3 clearance?

Suitable for tight fit, high rotating speed and working conditions with obvious temperature rise.
