Place of Origin: | China |
Brand Name: | OEM OR GQZ |
Certification: | ISO9001 |
Model Number: | 71920 |
Minimum Order Quantity: | 1.pcs |
---|---|
Price: | USD0.1-1000/PC |
Packaging Details: | Standard Carton Box / Wooden Pallet Case |
Delivery Time: | 3 ~ 5 working days |
Payment Terms: | T/T, Western Union,Paypal, |
Supply Ability: | 100000pcs/Week |
Structure: | Angular Contact | Type: | Ball |
---|---|---|---|
Size: | 100x140x20 Mm | Precision: | P6, P5 ,P4 ,P2 |
Material: | Chrome Steel Gcr15 | Clearance: | C0,C2,C3,C4 |
Service: | OEM&ODM | Certificate: | ISO9001:2008,CE,BV |

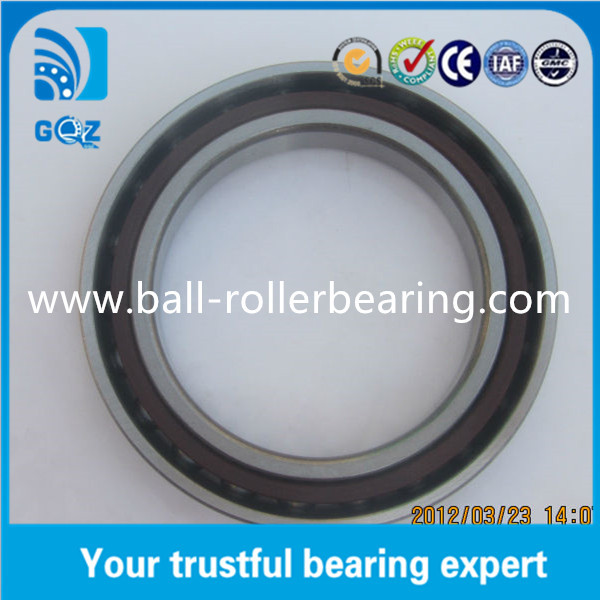

71920ACE/HCP4A Angular Contact Ball Bearing
Material |
Gcr15 Material/Chrome Steel |
Quality |
P0,P6 |
Structure |
Single row,Double row |
Brand |
Customers' brand,Our own brand:GQZ |
Series |
7000C type,7000AC type,7000B type |
Certificate |
ISO9001:2008,CE,BV |
Service |
OEM&ODM |
Market |
Europe,South America,North America,Middle East,Southeast Asia |
Application |
used in many areas of large steel mills, aviation,aerospace,marine,railway,metallurgy,steel,ect. |
Angular contact ball bearing:
Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Drawing:
Angular Contact Thrust Ball Bearing 719 Serise | |||||||
model number | d | D | B | Cr Cor | Grease Oil | Cr Cor | Grease Oil |
71900 | 10 | 22 | 6 | 2.1 0.9 | 94000 159000 | 2.0 0.9 | 84000 139000 |
71901 | 12 | 24 | 6 | 2.2 1.1 | 89000 149000 | 2.1 1.1 | 79000 129000 |
71902 | 15 | 28 | 7 | 3.2 1.7 | 79000 129000 | 3.1 1.6 | 69000 109000 |
71903 | 17 | 30 | 7 | 3.3 1.8 | 74000 119000 | 3.2 1.7 | 62000 94000 |
71904 | 20 | 37 | 9 | 5.0 2.9 | 62000 94000 | 4.8 2.7 | 52000 79000 |
71905 | 25 | 42 | 9 | 5.2 3.4 | 52000 79000 | 4.9 3.3 | 44000 66000 |
71906 | 30 | 47 | 9 | 5.8 3.8 | 47000 69000 | 5.4 3.6 | 39000 59000 |
71907 | 35 | 55 | 10 | 7.7 5.4 | 39000 59000 | 7.4 5.1 | 33000 49000 |
71908 | 40 | 62 | 12 | 9.8 7.0 | 33000 49000 | 9.3 6.6 | 27000 42000 |
71909 | 45 | 68 | 12 | 10.3 7.7 | 2.7E+09 | 9.7 7.3 | 25000 39000 |
71910 | 50 | 72 | 12 | 13.2 10.0 | 25000 39000 | 12.5 9.5 | 21000 35000 |
71911 | 55 | 80 | 13 | 16.0 12.6 | 21000 35000 | 15.0 11.9 | 18000 31000 |
71912 | 60 | 85 | 13 | 16.6 13.8 | 19000 33000 | 15.7 3.1 | 17000 29000 |
71913 | 65 | 90 | 13 | 16.8 14.5 | 18000 31000 | 16.0 13.7 | 16000 27000 |
71914 | 70 | 100 | 16 | 20.9 17.8 | 17000 29000 | 19.7 16.9 | 14000 23000 |
71915 | 75 | 105 | 16 | 21.7 19.3 | 16000 27000 | 20.5 18.2 | 14000 23000 |
71916 | 80 | 110 | 16 | 22.4 20.8 | 15000 25000 | 21.2 19.6 | 13000 21000 |
71917 | 85 | 120 | 18 | 26.1 24.2 | 14000 23000 | 24.7 22.9 | 12000 19000 |
71918 | 90 | 125 | 18 | 27.0 26.0 | 13000 22000 | 25.5 24.6 | 11000 18000 |
71919 | 95 | 130 | 18 | 27.3 26.9 | 12000 2000 | 25.8 25.4 | 11000 18000 |
71920 | 100 | 140 | 20 | 40.1 37.6 | 11000 18000 | 37.9 35.5 | 9000 16000 |
71921 | 105 | 145 | 20 | 40.7 39.1 | 10000 17000 | 38.4 36.9 | 8000 15000 |
71922 | 110 | 150 | 20 | 41.3 40.5 | 9000 16000 | 39.0 38.3 | 7000 14000 |
71924 | 120 | 165 | 22 | 43.1 44.9 | 8000 15000 | 40.7 42.4 | 7000 13000 |
71926 | 130 | 180 | 24 | 53.1 56.6 | 7000 13000 | 50.1 53.4 | 6500 12000 |
71928 | 140 | 190 | 24 | 53.7 59.1 | 6000 11000 | 50.7 55.8 | 5500 10000 |
71930 | 150 | 210 | 28 | 65.2 72.8 | 5500 10000 | 61.58.7 | 5000 9000 |
71932 | 160 | 220 | 28 | 66.0 75.8 | 5000 9000 | 62.3 71.6 | 4700 8000 |
71934 | 170 | 230 | 28 | 66.7 78.7 | 5700 9000 | 63.0 74.3 | 5000 8000 |
71936 | 180 | 250 | 33 | 79.6 95.0 | 5000 8000 | 75.2 89.7 | 4600 7500 |
71938 | 190 | 260 | 33 | 80.6 98.6 | 4600 7500 | 76.1 93.1 | 4000 6500 |
71940 | 200 | 280 | 38 | 82.8 105.4 | 4000 6500 | 78.2 99.5 | 3500 5700 |
