Metal Roller Cylindrical Thrust Bearing 29232 Low Friction Minimum Lubrication

1.pcs
MOQ
USD 0.1-1000/PC
Price
Metal Roller Cylindrical Thrust Bearing 29232 Low Friction Minimum Lubrication
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Thrust
Type: Roller
Size: 160x225x39mm
Cage Material: Steel/brass
Seals Type: Open
Number Of Row: Single Row
Material: Bearing Steel, Stainless Steel
Vibration: V1,V2,V3,V4
Clearance: C2,C0,C3,C4,C5
Noise Level: Z1,Z2,Z3,Z4
High Light:

roller thrust bearing

,

axial thrust bearing

Basic Infomation
Place of Origin: CHINA
Brand Name: Optional
Certification: ISO9001
Model Number: 29232
Payment & Shipping Terms
Packaging Details: Standard Carton Box / Wooden Pallet Case
Delivery Time: 2 ~ 5 working days
Payment Terms: T/T, Western Union,Paypal,
Supply Ability: 10000000PCS/Week
Product Description

Metal Roller Cylindrical Thrust Bearing 29232 Low Friction Minimum Lubrication







      1) Low friction
       2) Minimum lubrication
       3) Wear resistant
       4) Running in not required
       5) Requires little attention
       6) Dimensions relatively small
       7) No scraping required to fit shaft
       8) Easy replacement



Thrust roller bearings consist of two precision chrome steel washers (ring) and a roller complement spaced by bronze retainer. They can be supplied with or without radius roller grooves in the rings. Thrust bearings

are used under purely axial loads.Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the rollers.



Item

Specification

Type

Spherical thrust roller bearing

Model Number

29232

Brand

NTN TIMKEN

Outer Ring

Chrome steel

Inner Ring

Chrome steel

Cage

Steel sheet

Precision Grade

P0 ( ABEC1 ), P6 ( ABEC-3 ), P5 ( ABEC-5 )

Vibration Grade

Z1V1 Z2V2 Z3V3

Dynamic Load Rate(KN)

400

Static Load Rate(KN)

1080

Grease lubrication

2400

Oile lubrication

4000



Part of  the bearing specification:



Bearing No. Size/mm installation dimension/mm Basic load ratings/kN Limiting load rarting Limiting speeds/(r/min)
New Old d D T E da Da ras Ca Coa A Grease Oil
min max max
29330 9039330 150 250 60 87 195 220 2.1 781 2 753 0.774 1 300
29430 9039430   300 90 92 220 253 3 1 452 4 680 2.285 900
29332 9039332 160 270 67 92 210 236 2.5 927 3 253 1.063 1 200
29432 9039432   320 95 99 230 271 4 1 589 5 315 2.969 800
29334 9039334 170 280 67 96 220 247 2.5 940 3 358 1.16 1 100
29434 9039434   340 103 104 245 288 4 1 878 6 265 4.015 750
29336 9039336 180 300 73 103 235 263 2.5 1 111 4 056 1.628 1 000
29436 9039436   360 109 110 260 305 4 2 056 6 867 4.936 670
29338 9039388 190 320 78 110 250 281 3 1 301 4 861 2.294 900
29438 9039438   380 115 117 275 322 4 2 297 7 774 6.228 600
29240 9039240 200 280 48 108 235 258 2 612 2 518 0.759 1 400
29340 9039340   340 85 116 265 298 3 1 430 5 181 2.827 900
29440 9039440   400 122 122 290 338 4 2 483 8 386 7.588 600
29244 9039244 220 300 48 117 260 277 2 634 2 705 0.749 1 300
29344 9039344   360 85 125 285 316 3 1 524 5 661 3.21 800
29444 9039444   420 122 132 310 360 5 2 588 8 990 8.583 560
29248 9039248 240 340 60 130 285 311 2.1 915 3 951 1.483 1 100
29348 9039348   380 85 135 300 337 3 1 583 6 014 3.569 750

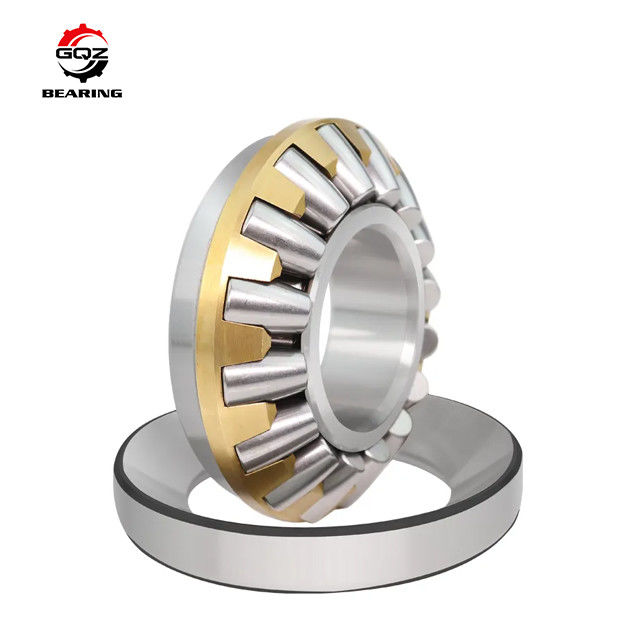

Metal Roller Cylindrical Thrust Bearing 29232 Low Friction Minimum Lubrication 0



Our Advantages:



1. Manufacturer,the most competive price and good quality



2. Perfect group of technical engineers give you the best support



3. Well-trained group of international sales provide the best service



4. OEM brand aviliable



5. Rich stock and quick delivery



How to expand the lifetime of 29232  spherical thrust roller bearing:



1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.

2. Don't allow strong impact, such as hammer striking, transfer roller pressure

3. Use the accurate installation tool, avoid to use cloth kind and short fibers

4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer

5. General inspection, such as the surrounding temperature, vibrate, noise inspection

6. Keep bearing cleaning from dirt, dust,pollutant, moisture.
