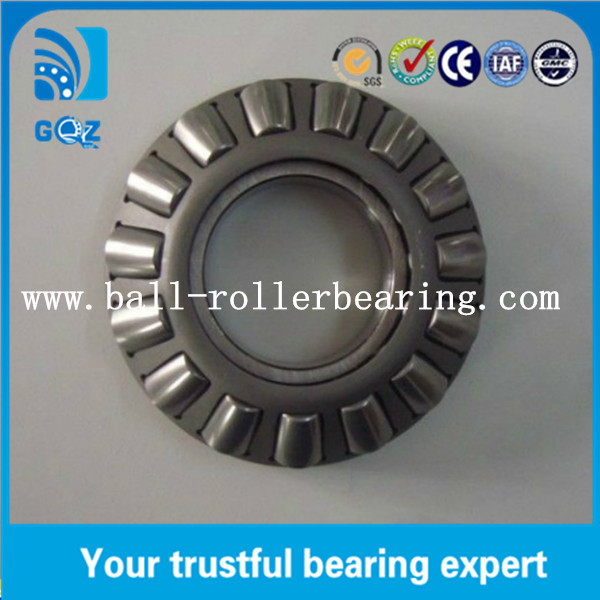

29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification

29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification

  • High Light

    high speed thrust bearing

    ,

    axial thrust bearing

  • Structure
    Thrust
  • Type
    Roller
  • Size
    150x2250x60mm
  • Precision Rating
    P0,P5,P6
  • Vibration
    V1,V2,V3,V4
  • Clearance
    C2,C0,C3,C4,C5
  • Cage Material
    Steel/brass
  • Stock
    Large Stock
  • Noise Level
    Z1,Z2,Z3,Z4
  • Material
    Bearing Steel, Stainless Steel
  • Place of Origin
    CHINA
  • Brand Name
    Optional
  • Certification
    ISO9001
  • Model Number
    29330
  • Minimum Order Quantity
    1.pcs
  • Price
    USD 0.1-1000/PC
  • Packaging Details
    Standard Carton Box / Wooden Pallet Case
  • Delivery Time
    2 ~ 5 working days
  • Payment Terms
    T/T, Western Union,Paypal,
  • Supply Ability
    10000000PCS/Week

29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification

29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification





Introduction

      1) Low friction
       2) Minimum lubrication
       3) Wear resistant
       4) Running in not required
       5) Requires little attention
       6) Dimensions relatively small
       7) No scraping required to fit shaft
       8) Easy replacement



Thrust roller bearings consist of two precision chrome steel washers (ring) and a roller complement spaced by bronze retainer. They can be supplied with or without radius roller grooves in the rings. Thrust bearings

are used under purely axial loads.Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the rollers.



Item

Specification

Type

Spherical thrust roller bearing

Model Number

29330

Brand

NTN TIMKEN

Outer Ring

Chrome steel

Inner Ring

Chrome steel

Cage

Steel sheet

Precision Grade

P0 ( ABEC1 ), P6 ( ABEC-3 ), P5 ( ABEC-5 )

Vibration Grade

Z1V1 Z2V2 Z3V3

Dynamic Load Rate(KN)

400

Static Load Rate(KN)

1080

Grease lubrication

2400

Oile lubrication

4000


29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification 0

Part of  the bearing specification:



NO ID/mm OD/mm BO/mm CR/kn COR/kn r/min w/kg
29420 40 80 18 25.5 18.0 10000 0.368
29413 65 140 45 344 1000 2500 3.34
29456 280 520 145 3380 12000 550 134
29322 110 190 48 457 1530 2000 5.58
29330 150 250 60 711 2500 1550 11.6
29412 60 130 42 293 854 2700 2.61
29268 340 460 73 1150 5300 900 33.6
81217 85 125 31 217 660 2300 1.28
29340 200 240 85 1360 5040 1050 31.2
81109 45 65 14 59 163 4400 0.13
81107 35 52 12 39 101 5500 0.04
81124 120 155 24       1.36
81188 44 54 80       2.23




29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification 1

29330 CNC Spherical Thrust Roller Bearing Durable ISO9001 Certification 2

Our Advantages:



1. Manufacturer,the most competive price and good quality



2. Perfect group of technical engineers give you the best support



3. Well-trained group of international sales provide the best service



4. OEM brand aviliable



5. Rich stock and quick delivery



How to expand the lifetime of 29330 spherical thrust roller bearing:



1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.

2. Don't allow strong impact, such as hammer striking, transfer roller pressure

3. Use the accurate installation tool, avoid to use cloth kind and short fibers

4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer

5. General inspection, such as the surrounding temperature, vibrate, noise inspection

6. Keep bearing cleaning from dirt, dust,pollutant, moisture.
