Place of Origin: | CHINA |
Brand Name: | Optional |
Certification: | ISO9001 |
Model Number: | 51306 |
Minimum Order Quantity: | 1.pcs |
---|---|
Packaging Details: | Standard Carton Box / Wooden Pallet Case |
Delivery Time: | 2 ~ 5 working days |
Payment Terms: | T/T, Western Union,Paypal, |
Size: | 30x60x21mm | Stock Quantity: | 2200.pcs |
---|---|---|---|
Type: | Single Direction Thrust Ball Bearing | Precision: | P0 , P6, P5 ,P4 ,P2 |
Material: | Bearing Steel ; Others | Operating Temp: | –30 °C ~ +150 °C |

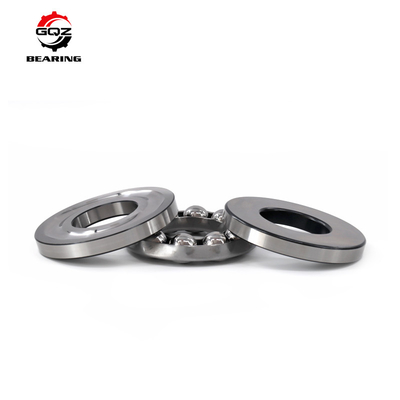

51306 Axial Metal Steel Gcr15 Thrust Ball Bearing With Sheet Steel Cage 30x60x21mm
BearingModel | 51306 |
Material | Bearing Steel GCr15 ; Others |
Type | Thrust Deep Groove Ball Bearing |
d (mm) | 30 |
D (mm) | 60 |
B (mm) | 21 |
Mass (KG) | 0.25 |
Precision |
P0, P6, P5 ,P4 ,P2 |
We currently have 2200.pcs of 51306 Single Direction Thrust Deep Groove Ball Bearing In Stock.If you are in need of 51306 Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of 51306 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the "
Contact Now "button for Price & other Information.
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
51100 | 10 | 24 | 9 | 51200 | 10 | 26 | 11 | 51405 | 25 | 60 | 24 |
51101 | 12 | 26 | 9 | 51201 | 12 | 28 | 11 | 51406 | 30 | 70 | 28 |
51102 | 15 | 28 | 9 | 51202 | 15 | 32 | 12 | 51407 | 35 | 80 | 32 |
51103 | 17 | 30 | 9 | 51203 | 17 | 35 | 12 | 51408 | 40 | 90 | 36 |
51104 | 20 | 35 | 10 | 51204 | 20 | 40 | 14 | 51409 | 45 | 100 | 39 |
51105 | 25 | 42 | 11 | 51205 | 25 | 47 | 15 | 51410 | 50 | 110 | 43 |
51106 | 30 | 47 | 11 | 51206 | 30 | 52 | 16 | 51411 | 55 | 120 | 48 |
51107 | 35 | 52 | 12 | 51207 | 35 | 62 | 18 | 51412-MP | 60 | 130 | 51 |
51108 | 40 | 60 | 13 | 51208 | 40 | 68 | 19 | 51413-MP | 65 | 140 | 56 |
51109 | 45 | 65 | 14 | 51209 | 45 | 73 | 20 | 51414-MP | 70 | 150 | 60 |
51110 | 50 | 70 | 14 | 51210 | 50 | 78 | 22 | 51415-MP | 75 | 160 | 65 |
51111 | 55 | 78 | 16 | 51211 | 55 | 90 | 25 | 51416-MP | 80 | 170 | 68 |
51112 | 60 | 85 | 17 | 51212 | 60 | 95 | 26 | 51417-MP | 85 | 180 | 72 |
51113 | 65 | 90 | 18 | 51213 | 65 | 100 | 27 | 51418-MP | 90 | 190 | 77 |
51114 | 70 | 95 | 18 | 51214 | 70 | 105 | 27 | 51420-MP | 100 | 210 | 85 |
51115 | 75 | 100 | 19 | 51215 | 75 | 110 | 27 | 51422-MP | 110 | 230 | 95 |
51116 | 80 | 105 | 19 | 51216 | 80 | 115 | 28 | 51424-MP | 120 | 250 | 102 |
51117 | 85 | 110 | 19 | 51217 | 85 | 125 | 31 | 51305 | 25 | 52 | 18 |
51118 | 90 | 120 | 22 | 51218 | 90 | 135 | 35 | 51306 | 30 | 60 | 21 |
51120 | 100 | 135 | 25 | 51220 | 100 | 150 | 38 | 51307 | 35 | 68 | 24 |
51122 | 110 | 145 | 25 | 51222 | 110 | 160 | 38 | 51308 | 40 | 78 | 26 |
51124 | 120 | 155 | 25 | 51224 | 120 | 170 | 39 | 51309 | 45 | 85 | 28 |
51126 | 130 | 170 | 30 | 51226 | 130 | 190 | 45 | 51310 | 50 | 95 | 31 |
51128 | 140 | 180 | 31 | 51228 | 140 | 200 | 46 | 51311 | 55 | 105 | 35 |
51130-MP | 150 | 190 | 31 | 51230-MP | 150 | 215 | 50 | 51312 | 60 | 110 | 35 |
51132-MP | 160 | 200 | 31 | 51232-MP | 160 | 225 | 51 | 51313 | 65 | 115 | 36 |
51134-MP | 170 | 215 | 34 | 51234-MP | 170 | 240 | 55 | 51314 | 70 | 125 | 40 |
51136-MP | 180 | 225 | 34 | 51236-MP | 180 | 250 | 56 | 51315 | 75 | 135 | 44 |
51138-MP | 190 | 240 | 37 | 51238-MP | 190 | 270 | 62 | 51316 | 80 | 140 | 44 |
51140-MP | 200 | 250 | 37 | 51240-MP | 200 | 280 | 62 | 51317 | 85 | 150 | 49 |
51144-MP | 220 | 270 | 37 | 51244-MP | 220 | 300 | 63 | 51318 | 90 | 155 | 50 |
51148-MP | 240 | 300 | 45 | 51248-MP | 240 | 340 | 78 | 51320 | 100 | 170 | 55 |
51152-MP | 260 | 320 | 45 | 51252-MP | 260 | 360 | 79 | 51322-MP | 110 | 190 | 63 |
51156-MP | 280 | 350 | 53 | 51256-MP | 280 | 380 | 80 | 51324-MP | 120 | 210 | 70 |
51160-MP | 300 | 380 | 62 | 51260-MP | 300 | 420 | 95 | 51326-MP | 130 | 225 | 75 |
51164-MP | 320 | 400 | 63 | 51264-MP | 320 | 440 | 95 | 51328-MP | 140 | 240 | 80 |
51168-MP | 340 | 420 | 64 | 51268-MP | 340 | 460 | 96 | 51330-MP | 150 | 250 | 80 |
51172-MP | 360 | 440 | 65 | 51272-MP | 360 | 500 | 110 | 51332-MP | 160 | 270 |
87 |
Introduction
Axial deep groove ball bearings comprise shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining; the ball and cage assembly and bearing washers can therefore be fitted separately.
Single direction axial deep groove ball bearings can support axial forces in one direction.Bearings of series 511, 512, 513 and 514 have a flat housing locating washer. They do not permit angular misalignment or skewing between the shaft and housing.
Operating Temperature
Axial deep groove ball bearings can be used at operating temperatures from –30 °C to +150 °C, restricted by the lubricant.
