Width 240mm Metric Tapered Roller Bearing 29348E High performance OEM

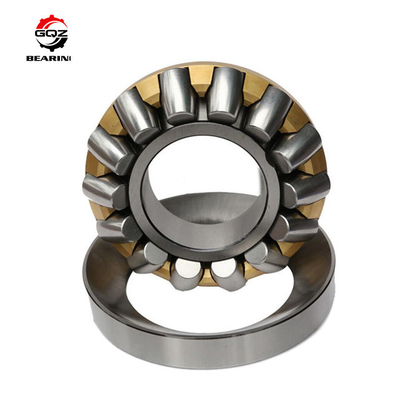

Thrust Roller Bearing:
Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.
Thrust roller bearings are mainly used for heavy-duty machine tools, power marine gear boxes, oil rig, electrical and other machinery in the vertical.
Technical Specifications:
|
Bore diameter |
240 mm |
|
Outside diameter |
380 mm |
|
Width |
240 mm |
|
Model |
29348 |
|
Tolerance |
Normal (PN) |
|
Product performance |
H&K |
|
Bore type |
Tapered |
|
Number of rows |
Two |
|
Cage |
Sheet metal |
|
Sealing |
None |
|
Radial internal clearance |
Group 3 (C3) |
|
Locating feature - bearing outside |
None |
|
Relubrication feature |
With |
|
Lubricant (in bearing) |
None |
|
Material/Treatment |
Bearing steel |
|
Dimension type |
Metric |
Application:
spherical roller thrust bearings apply to precise instrument, the electrical appliance of low noise,
automobile, motorbike and other machines. It is used the most widely in mechanical industry.
We can also supply various types of bearings according to your sample and design.
Manufacturing high-grade products is our permanent goal.
| Bearing No. | Size(mm) | ||||
| New | Old | d | D | T | E |
| 29412 | 9039412 | 60 | 130 | 42 | 38 |
| 29413 | 9039413 | 65 | 140 | 45 | 42 |
| 29414 | 9039414 | 70 | 150 | 48 | 44 |
| 29415 | 9039415 | 75 | 160 | 51 | 47 |
| 29416 | 9039416 | 80 | 170 | 54 | 50 |
| 29317 | 9039317 | 85 | 150 | 39 | 50 |
| 29417 | 9039417 | 180 | 58 | 54 | |
| 29318 | 9039318 | 90 | 155 | 39 | 52 |
| 29418 | 9069418 | 190 | 60 | 56 | |
| 29320 | 9039320 | 100 | 170 | 42 | 58 |
| 29420 | 9039420 | 210 | 67 | 62 | |
| 29322 | 9039322 | 110 | 190 | 48 | 64 |
| 29422 | 9039422 | 230 | 73 | 69 | |
| 29324 | 9039324 | 120 | 210 | 54 | 70 |
| 29424 | 9039424 | 250 | 78 | 74 | |
| 29326 | 9039326 | 130 | 225 | 58 | 76 |
| 29426 | 9039426 | 270 | 85 | 81 | |
| 29328 | 9039328 | 140 | 240 | 60 | 82 |
| 29428 | 9039428 | 280 | 85 | 86 |
|
