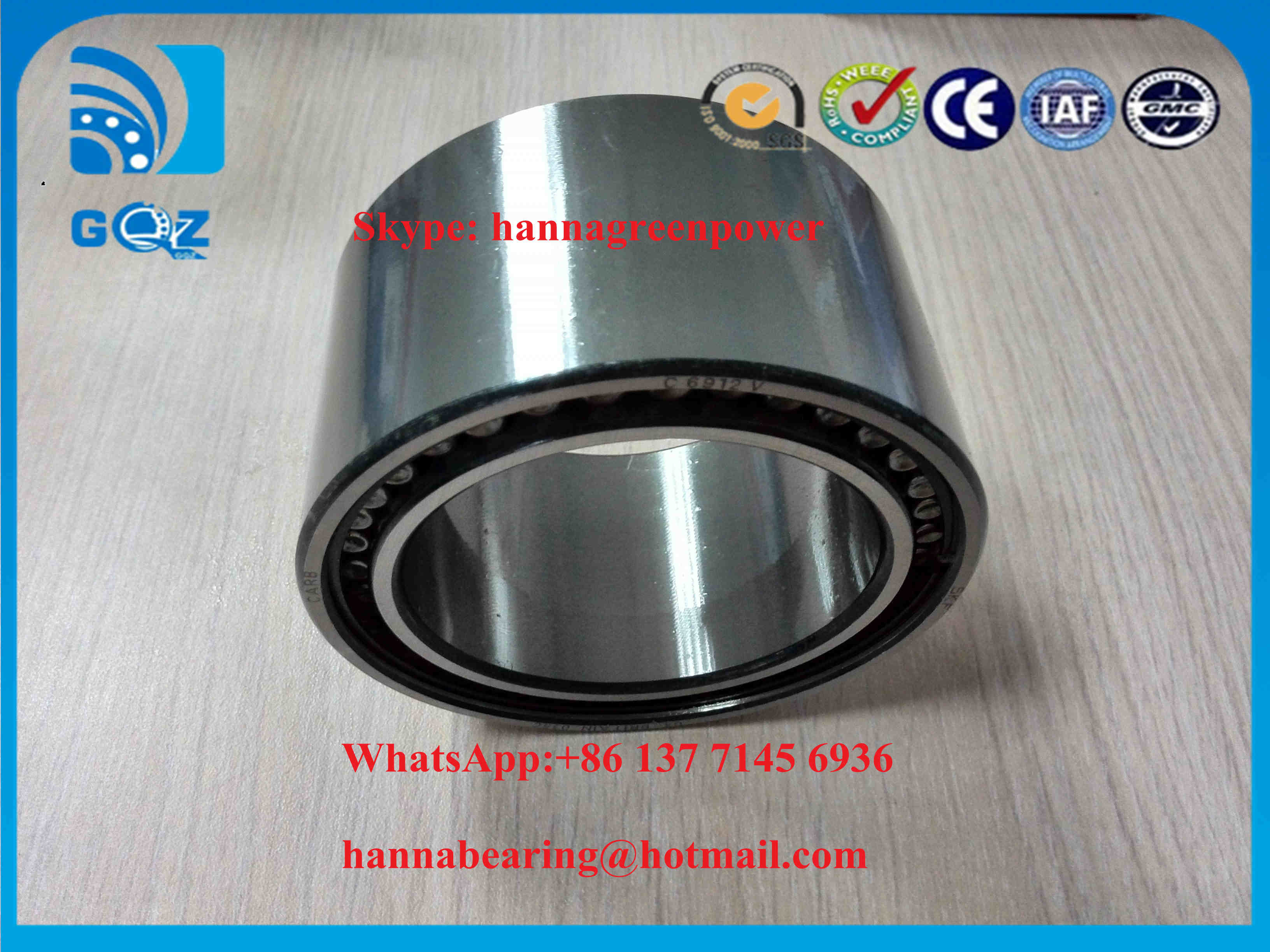

Full Complement CARB Toroidal Roller Bearing C6915V/VE240 75x105x54mm

Full Complement CARB Toroidal Roller Bearing C6915V/VE240 75x105x54mm

    • Full Complement CARB Toroidal Roller Bearing C6915V/VE240 75x105x54mm
    • Full Complement CARB Toroidal Roller Bearing C6915V/VE240 75x105x54mm
  • Full Complement CARB Toroidal Roller Bearing C6915V/VE240 75x105x54mm

    Product Details:

    Place of Origin: CHINA ; GERMANY ; GREAT BRITAIN
    Brand Name: Optional
    Certification: ISO9001
    Model Number: C 6915 V/VE240

    Payment & Shipping Terms:

    Minimum Order Quantity: 1.pcs
    Packaging Details: Standard Carton Box / Wooden Pallet Case
    Delivery Time: 2 ~ 5 working days
    Payment Terms: T/T, Western Union,Paypal,
    Contact Now
    Detailed Product Description
    Size: 75x105x54mm Size: 75x105x54mm
    Stock Quantity: 610.pcs Cage Type: No Cage
    Precision: P6 ; P5 ; P4 Material: Bearing Steel GCr15
    Structure: CARB Toroidal Roller

    C6915V/VE240 CARB  Full Complement Toroidal Roller Bearing 75x105x54mm





    Stock QTY : 610.pcs        (More on the way)



    Size : 75x105x54mm          Weight : 1.40KG



    Bearing Model

    C 6915 V/VE240

    Structure

    CRAB Toroidal Roller Bearing

    Size (dxDxB) mm

    75x105x54mm

    (mm)

    75

    (mm)

    105

    (mm)

    54

    Weight /Mass (KG)

    1.40

    Contact Person

    Hanna (Ms)

    SKYPE

    hannagreenpower

    WhatsApp / Webchat   +86 137 7145 6936

    E-mail

    hannabearing@hotmail.com



    We currently have 610.pcs of C 6915 V/VE240 CARB  Full Complement Toroidal Roller Bearing In Stock.If you are in need of C 6915V/VE240  Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.



    For more details of C6915V/VE240 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.



    Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Price & other Information.



    C 6006 V C 5910 V C 6913 V
    C 4908 V C 5911 V C 6914 V
    C 4909 V C 5912 V C 2205 V
    C 4910 V C 5913 V C 2206 V
    C 4911 V C 5914 V C 2207 V
    C 4912 V C 5915 V C 2208 V
    C 4913 V C 5916 V C 2209 V
    C 4914 V C 5917 V C 2210 V
    C 4915 V C 5918 V C 2211 V
    C 4916 V C 5919 V C 2212 V
    C 4917 V C 5920 V C 2213 V
    C 4918 V C 6908 V C 2214 V
    C 4919 V C 6909 V C 2215 V
    C 4920 V C 6910 V C 2216 V
    C 5908 V C 6911 V C 2217 V
    C 5909 V C 6912 V C 2218 V





    Prefix


    C : Bearing with standardized
    BSC : Special bearing



    Suffix



    K : Tapered bore, Taper 1:12
    K30 : Tapered bore, Taper 1:30



    C2 Radial internal clearance smaller than Normal
    C3 Radial internal clearance greater than Normal
    C4 Radial internal clearance greater than C3
    C5 Radial internal clearance greater than C4


    2CS Sheet steel reinforced acrylonitrile-butadiene rubber seal (NBR) on both sides of the bearing1)
    2CS5 Sheet steel reinforced hydrogenated acrylonitrile-butadiene rubber seal (HNBR) on both sides
    of the bearing2)

    HA3 Case-hardened inner ring


    M Window-type machined brass cage, roller centred
    MB Machined brass cage, inner ring centred
    2NS Highly efficient acrylonitrile-butadiene rubber seal on both sides of the bearing2)
    TN9 Injection moulded cage of glass fibre reinforced polyamide 4,6, roller centred
    V Full complement type of rollers (no cage)
    VE240 Bearing modified for greater axial displacement
    VG114 Surface hardened pressed steel cage
