51118 Single Direction Thrust Ball Bearing With Seat Washers

51118 Single Direction Thrust Ball Bearing With Seat Washers

    • 51118 Single Direction Thrust Ball Bearing With Seat Washers
    • 51118 Single Direction Thrust Ball Bearing With Seat Washers
    • 51118 Single Direction Thrust Ball Bearing With Seat Washers
    • 51118 Single Direction Thrust Ball Bearing With Seat Washers
  • 51118 Single Direction Thrust Ball Bearing With Seat Washers

    Product Details:

    Place of Origin: Germany
    Brand Name: FAG
    Certification: ISO
    Model Number: 51118

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 51118 ID: 90mm
    OD: 120mm Thickness: 22mm
    Cage Type: Steel Row Type: Double Row
    Direction Type: Single Direction Origin: Germany

    51118 Single Direction Thrust Ball Bearing With Seat Washers



    1. Specification:



    Specification of Bearing

    Bearing type

    Thrust ball bearing

    Brand type

    INA,IKO,SKF,FAG,NSK and so on

    Precision Rating

    Germany and so on

    Vibration

    Z1V1,Z2V2,Z3V3

    Durability

    Long

    Material

    chrome steel

    Certificate

    ISO9001:2008

    Main market abroad

    South America,USA,European,Southeast

    Asia,Middle East

    Packaging Details

    1. inner: polyester bag outer:paper carton

    2. industrial standard packing

    3. Poly bag+box+packing

    4.  as your order

    Delivery Time

    Within 3-5 days after receiving

    your subscription

    Payment Terms

    T/T,Western Union,Paypal



    2. Feature:

    (1) Double row

    (2) Single direction

    (3) Steel cage
    (4) Contact angle:  >45o

    (5) Rich stock

    (6) Fast delivery



    3. Cage type:

    (1) With M: Brass cage

    (2) Without M: Steel cage

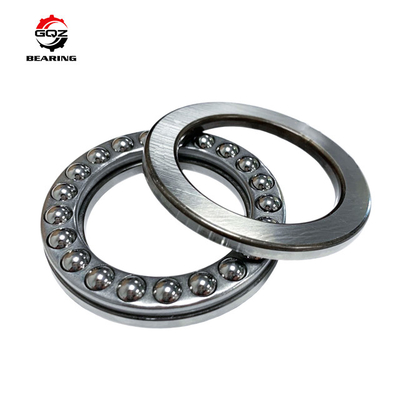

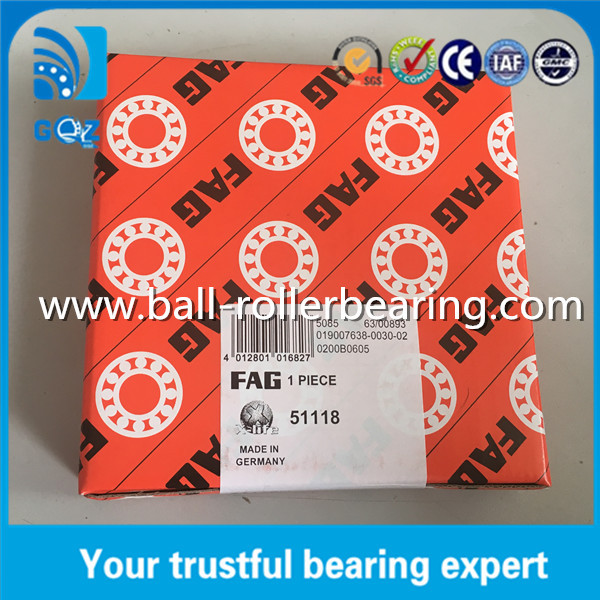

    4. Bearing Picture:

    51118 Single Direction Thrust Ball Bearing With Seat Washers

    51118 Single Direction Thrust Ball Bearing With Seat Washers

    51118 Single Direction Thrust Ball Bearing With Seat Washers

    51118 Single Direction Thrust Ball Bearing With Seat Washers



    5. We aslo supply following thrust ball bearing:

    ITEM SIZE (mm) WEIGHT(kg)
    d D T d1smin D1sman rsmin
    51100 10 24 9 11 24 0.3 0.0193
    51101 12 26 9 13 26 0.3 0.0214
    51102 15 28 9 16 28 0.3 0.0243
    51103 17 30 9 18 30 0.3 0.0253
    51104 20 35 10 21 35 0.3 0.0376
    51105 25 42 11 26 42 0.6 0.0562
    51106 30 47 11 32 47 0.6 0.0665
    51107 35 52 12 37 52 0.6 0.0826
    51108 40 60 13 42 60 0.6 0.120
    51109 45 65 14 47 65 0.6 0.150
    51110 50 70 14 52 70 0.6 0.160
    51200 10 26 11 12 26 0.6 0.0293
    51201 12 28 11 14 28 0.6 0.0324
    51202 15 32 12 17 32 0.6 0.0444
    51203 17 35 12 19 35 0.6 0.0506
    51204 20 40 14 22 40 0.6 0.0773
    51205 25 47 15 27 47 0.6 0.109
    51206 30 52 16 32 52 0.6 0.142
    51207 35 62 18 37 62 1 0.147
    51208 40 68 19 42 68 1 0.278
    51209 45 73 20 47 73 1 0.338
    51210 50 78 22 52 78 1 0.380
