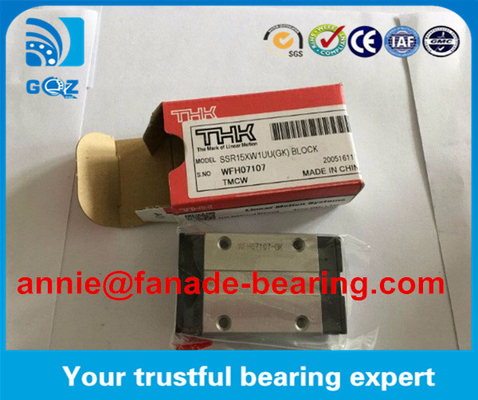

THK SSR series linear rail and block for CNC machine SSR15XW1UU linear guide linear block THK SSR15XW1GG
The Brief Description of LINEAR GUIDE SYSTEMS:
We are THK linear guide bearings sales center and technology service center.We can supply kinds of Original THK products.The Linear Motion Guide Series is a range of machine parts that are indispensable for reducing linear motion friction in the positioning mechanisms of machinery.We supply a large range of products including the linear way and linear motion rail guiding systems, and a ball spline-based shaft guiding system. Available sizes range from the world’s smallest track rail at just 1 mm wide, to a very large version which provides high rigidity and high-load capacity.
Linear Guide Rail Series Structures and Options:
SHS Series: SHS15 SHS15C SHS15LC SHS20C SHS20LC SHS25C SHS25LC SHS30C SHS30LC SHS35C SHS35LC SHS45C SHS15V SHS15LV SHS20V SHS20LV SHS25V SHS25LV……
HSR Series: HSR15A HSR15AM HSR15B HSR15BM HSR15R HSR20A HSR20LA HSR25A HSR25LA HSR30A HSR30LA HSR35A HSR35LA HSR45A HSR45LA ……
SSR Series: SSR15XWY SSR20XW SSR25XWY SSR35XW SSR15XVY SSR20XV SSR25XVY SSR15XTBY SSR20XTB SSR25XTBY SSR15XWMY SSR25XWMY……
SRS Series: SRS7M SRS9M SRS12M SRS15M SRS20M SRS25M SRS7WM SRS9WM SRS12WM SRS15WM SRS20M SRS12WGM SRS15WGM……
SR Series: SR15W SR15V SR20W SR20V SR25W SR25V SR35W SR35V SR45W
SR15TB SR15SB SR20TB SR20SB SR25TBY SR25SBY……
RSR Series: RSR3M RSR3N RSR5M RSR5N RSR7M RSR7N RSR9KM RSR9N RSR12VM RSR12N RSR15VM RSR15N RSR20VM RSR20N……
RSH Series: RSH7M RSH9KM RSH12VM RSH7ZM RSH9ZM RSH12ZM RSH15ZM RSH7WZM RSH9WZM RSH12WZM RSH15WZM
SHW Series: SHW12CAM SHW14CAM SHW17CAM SHW21CA SHW27CA SHW35CA SHW50CA SHW12CRM SHW12HRM SHW14CRM SHW17CRM
NR/SNS Series: SNR25 SNR25L SNR25LR SNR25C SNR25LC SNR30 SNR30R SNR30LR SNS35R SNS45R SNS55R SNS64R SNS85LR SNS25C SNS35C
THK SRRX15W1UU Linear Guideway System Photos:
THK Series Linear Guide System Catalog:
| Model No. | Outer dimensions | Basic load rating | |||
| Radial | |||||
| Height M |
Width W |
Length L |
Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | kN | kN | |
| SSR 15XW | 24 | 34 | 56.9 | 14.7 | 16.5 |
| SSR 15XWM | 24 | 34 | 56.9 | 14.7 | 16.5 |
| SSR 20XW | 28 | 42 | 66.5 | 19.6 | 23.4 |
| SSR 20XWM | 28 | 42 | 66.5 | 19.6 | 23.4 |
| SSR 25XW | 33 | 48 | 83 | 31.5 | 36.4 |
| SSR 25XWM | 33 | 48 | 83 | 31.5 | 36.4 |
| SSR 30XW | 42 | 60 | 97 | 46.5 | 52.7 |
| SSR 30XWM | 42 | 60 | 97 | 46.5 | 52.7 |
| SSR 35XW | 48 | 70 | 110.9 | 64.6 | 71.6 |
