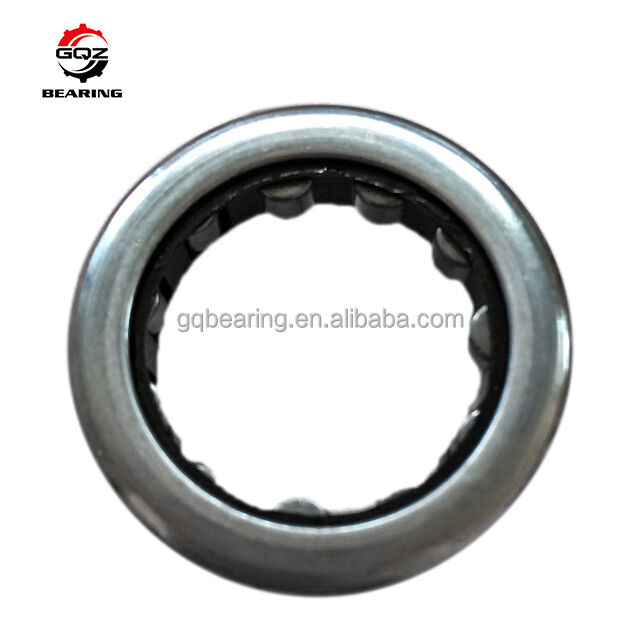

HF173516 One Way Clutch Bearing for Treadmill / HF17X35X16 17*35*16 mm

HF173516 and HF17X35X16 are two different marking formats for the identical metric drawn cup one-way needle roller overrunning clutch bearing, unified dimension Fw=17mm matching shaft diameter, outer diameter D=35mm, total width C=16mm.

It belongs to HF series pure clutch unit without built-in bilateral radial needle supports, must be matched with HK17 series drawn cup needle bearings to bear radial load during operation. Integral stamped thin steel outer cup adopts interference press-fit installation mode, no extra positioning sleeves or snap rings required to simplify assembly steps.

Internal stainless steel leaf springs push inclined needle rollers to realize unidirectional torque transmission and automatic anti-reverse self-locking; free rotation in forward direction, rigid locking reverse rotation to eliminate equipment reverse backlash and avoid component damage. Outer shell and needle rollers adopt GCr15 bearing steel with overall quenching treatment, double-end open structure facilitates regular grease replenishment and maintenance. Widely applied to textile winding machinery, packaging conveyor equipment, small gear reducers, treadmill drive parts, office automation transmission assemblies and light industrial anti-reverse overrunning devicesAlibaba.co....

• Ultra-compact thin drawn cup press-fit structure, directly pressed into housing interference hole, greatly simplify equipment transmission layout and reduce spare part stocking varieties
• Independent single-direction overrunning clutch core design, stable locking torque, reliable anti-reverse self-locking performance under frequent start-stop reciprocating torque impact load
• Stainless steel elastic leaf spring positioning needle rollers, uniform wedge locking force, no slippage during torque transmission, long contact fatigue service life
• Narrow radial cross-section saves internal installation space, perfect for miniaturized light-duty unidirectional transmission mechanical design
• Double-end open design facilitates regular lubrication maintenance, effectively reduce abnormal wear caused by insufficient grease supply
• Customizable options: single/double RS rubber dust seals, stainless steel anti-rust outer cup, OEM laser marking, low-temperature food-grade special lubricant filling

Effectively eliminate equipment reverse rotation backlash and reduce transmission system overhaul maintenance frequency

This HF173516 / HF17X35X16 single-way drawn cup needle clutch bearing set is widely matched for the following light industrial unidirectional transmission equipment:

• Textile yarn winding machinery, loom take-up roller anti-reverse overrunning assemblies
• Food packaging production line conveyor roller anti-backward rotation supporting parts
• Miniature gear reducers, small speed reducer output shaft one-way locking components
• Treadmill, fitness equipment internal drive anti-reverse transmission parts
• Printing equipment, office automation reciprocating transmission drive mechanisms
• Aftermarket replacement spare parts for 17mm bore drawn cup one-way needle clutch bearing equipment

Ideal cost-effective compact anti-reverse clutch solution for light load unidirectional transmission machinery

• 25 years of professional HF series drawn cup one-way needle clutch bearing manufacturing experience
• Two marking versions fully dimensionally interchangeable with international standard HF173516 series overrunning bearings, consistent locking torque and rotational smoothness
• Complete OEM & ODM customized service supporting dust seal addition, stainless steel outer shell and special lubricant customization
• Full-process strict inspection: raw material hardness test, drawn cup forming precision, spring locking torque uniformity and high-speed reciprocating torque cycle durability testing before delivery
• Professional one-way clutch technical team provides housing interference tolerance and matching shaft installation guidance within 24 hours
• Stable mass production capacity with preferential bulk wholesale price for long-term textile, fitness and packaging machinery manufacturers

We focus on reliable anti-slip locking torque, compact press-fit performance and long-term win-win cooperation with global industrial buyers

• Raw material chemical composition and hardness inspection of GCr15 chrome steel and stainless spring steel
• Precision deep drawing, trimming and inner inclined raceway grinding processing for integral outer drawn cup
• Standardized quenching & tempering heat treatment process to stabilize metal internal stress and improve wear resistance
• Special clutch performance testing: unidirectional locking torque consistency, high-speed anti-reverse durability, radial clearance uniformity inspection
• Uniform needle roller and spring assembly inspection, dimensional & appearance recheck before anti-rust oil packaging and shipment

Every batch of HF173516 bearings passes full sampling reciprocating torque cycle durability test to guarantee stable long-term anti-reverse transmission operation

If you need high locking torque HF173516 / HF17X35X16 drawn cup one-way needle clutch bearings for textile winding machines, fitness treadmills and packaging conveyor anti-reverse equipment, send your inquiry to us directly.

You will receive full professional supporting services after submitting inquiry:

• Fast official factory quotation reply within 24 hours
• One-on-one housing interference tolerance & shaft surface hardness matching technical guidance by professional clutch bearing engineers
• Customized bearing solution suggestions including RS dust sealed variants and stainless steel anti-rust outer cup options
• Competitive direct factory bulk wholesale price for large machinery spare parts bulk orders

Send your required purchase quantity and equipment working environment to obtain detailed formal quotation

1. Q1: What is the difference between HF173516 and HF17X35X16?
   A1: The two are different industry marking formats of the exact same one-way clutch bearing, dimensions, torque, load parameters and installation performance are fully consistent and interchangeable.
2. Q2: What is the difference between HF series and HFL series one-way bearings?
   A2: HF173516 is independent clutch unit without radial supporting needles, must match HK series needle bearings to bear radial load; HFL integrates bilateral radial needle supports, can work alone without auxiliary bearings.
3. Q3: Can HF173516 bear radial load alone?
   A3: Cannot. It only realizes unidirectional locking function without radial supporting structure, must be combined with HK1724 drawn cup needle bearing to bear radial load jointly.
