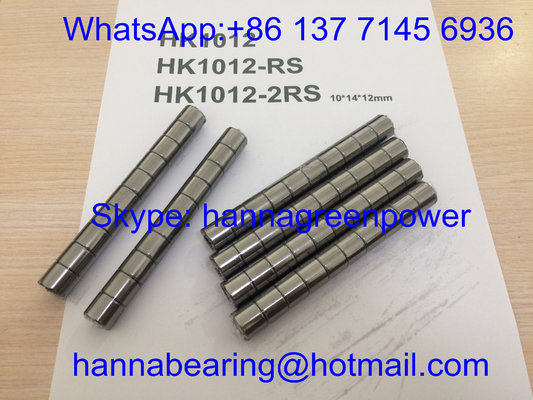

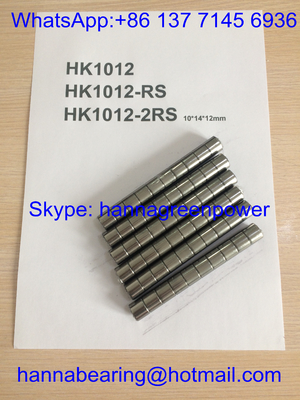

HK101412 / HK1012 / HK1012-RS / HK1012-2RS Drawn Cup Needle Roller Bearing With Seals 10*14*12mm

1. Product Overview

HK101412, HK1012, HK1012-RS and HK1012-2RS are metric single-row through open drawn cup needle roller bearings without inner ring, unified outer diameter D=14mm, roller assembly inner diameter Fw=10mm, differentiated by width, roller layout and sealing configuration. HK series adopts integrated one-piece stamped thin steel outer cup, directly pressed into housing interference hole without extra snap rings or positioning sleeves to simplify assembly work.

• HK1012: Standard 12mm width open type without rubber seal, excellent heat dissipation for clean dry indoor production environments;
• HK1012-RS: 12mm width single-lip NBR contact rubber seal on one end, blocks light dust and slight moisture for lightly polluted workshops;
• HK1012-2RS: 12mm width double-sided RS rubber seals on both ends, full dust & moisture isolation for harsh dusty humid working conditions;
• HK101412: 12mm width thickened dense needle roller layout, larger contact area to upgrade dynamic & static radial load capacity for medium heavy shock load equipment.

Stamped thin steel cage evenly separates dense needle rollers to realize ultra-high radial bearing capacity under ultra-narrow radial cross-section. Matching installation shaft surface must be quenched to HRC60–64 and mirror superfinished to act as inner raceway. This series only bears pure radial load, widely used for miniature gearboxes, handheld power tools, textile tension rollers, automation sliding components, micro hydraulic valves and light agricultural machinery transmission assemblies with strict radial space limits.

2. Technical Specifications

Unified Base Standard Parameters

Fw (Needle assembly inner diameter): 10 mm
Outer Diameter D: 14 mm
Overall Width C: 12 mm
Structure: Single row through open drawn cup needle bearing, no inner ring, stamped steel roller retainer
Material: Drawn cup & needle rollers GCr15 high-carbon chrome bearing steel
Standard Radial Clearance: CN normal clearance
Reference grease limiting rotation speed: 19500 r/min
Oil lubrication limiting rotation speed: 24800 r/min
Required matching shaft hardness: HRC60–64 mirror superfinishing
Minimum chamfer r: 0.4 mm

HK1012

Sealing: Both ends open without rubber seal
Dynamic Load Cr: 4920 N
Static Load Cor: 6350 N
Fatigue Load Limit Pu: 1080 N
Net Weight: 0.0036 kg

HK1012-RS

Sealing: Single side RS NBR contact rubber dust seal
Dynamic Load Cr: 4680 N
Static Load Cor: 6090 N
Fatigue Load Limit Pu: 1030 N
Net Weight: 0.0038 kg

HK1012-2RS

Sealing: Double sides 2RS NBR contact rubber dust seals
Dynamic Load Cr: 4450 N
Static Load Cor: 5780 N
Fatigue Load Limit Pu: 980 N
Net Weight: 0.0040 kg

HK101412

Sealing: Open both ends, thickened dense needle roller heavy load structure
Dynamic Load Cr: 5750 N
Static Load Cor: 7420 N
Fatigue Load Limit Pu: 1210 N
Net Weight: 0.0041 kg
Complete dimensional drawings and full technical load data of four models are available upon customer request.
