Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X

Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X

    • Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X
    • Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X
  • Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X

    Product Details:

    Place of Origin: Japan
    Brand Name: KOYO/OEM
    Certification: ISO90001
    Model Number: CT55BL1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1.PCS
    Price: Negotiable
    Packaging Details: Standard Carton Box
    Delivery Time: Within 3 days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 10000.pcs / Month
    Contact Now
    Detailed Product Description
    Material: Chrome Steel (GCR-15) Packing: Original KOYO Packing
    Application: Automotive Auto Car Clutch Truck Size: 55*87.8*19.5mm

    Auto spare parts clutch release bearing 87.5X55X19.5, CT55BL1, TK55-1A1U3, 55TMK804X Automotive bearing







    The Brief Description of Bearings:



    Clutch release bearing is one of the more important parts, car bad if the maintenance fails, will not only cause economic losses, and disassembling time quite trouble, take many hours.So, find out the clutch release bearing failure reason, and in the use of preventive maintenance and reasonably, to prolong the life of release bearing, improve labor productivity, achieving good economic benefit has important significance.



    Clutch release bearing installed between the clutch and gearbox, the separation of bearing loose tube on the first shaft transmission tubular extension part of the bearing cover, release bearing by return spring convex fork shoulder always resist separation, and return to the last position, and separation of lever end (separation) keep about 3 ~ 4 mm gap.



    Because the clutch pressure plate, separate leverage and engine crank synchronous operation, and the separation of the fork can only move, the clutch output shaft axis with separation fork to dial directly separate lever is obviously not enough, by rotating a separation bearings can make separation lever side edge of the clutch output shaft axial movement, so as to ensure the clutch can engage a smooth, separation of downy, reduce wear and tear, prolong the service life of the clutch and the whole drive train.



    Name KOYO clutch release bearing CT55BL1:
    Sizes 55*87.8*19.5mm
    Material Chrome steel Gcr15
    Delivery 2-3 days
    Price Factory price
    Service 24 hours online
    Appication All automotive clutch release
    Specialty

    KOYO CT55BL Cluth Release bearing:

    1) Very durable

    2) High speed running
    3) High quality

    4) 2 years warranty

    5) Good & competitive price



    Stock List of KOYO clutch release bearing:

    Model Brand Sizes

    TK40-4A NSK 40*75 RCT4075-1S 40TRK-1 NACHI
    TK55-1A NSK 55*87.5 CT55BL1 55TMK804
    TK80-1A NSK 80*127 80TNK20 KOYO
    40TKD07 NSK 40*67 40TRBC07-7 RCTS4067A
    45TKD07 NSK 45*71.6 KOYO RCTS45
    CT35S KOYO 35*56.7 35TMK29B2
    CT55BL1 KOYO 55*87.8 NSK TK55-1A 55TMK804
    RCT322SA KOYO NSK 48TKA3201
    RCTS338SA1 KOYO 33*65.8 50TKE3301
    RCT38SL1 KOYO 38*76 24TK308B2
    RCT401SA KOYO 54TKA3501
    RCT4068A2RSE KOYO
    RCT4075-1S KOYO 40*74.7 NSK TK40-4A
    RCTS45 KOYO NSK 45TKD07

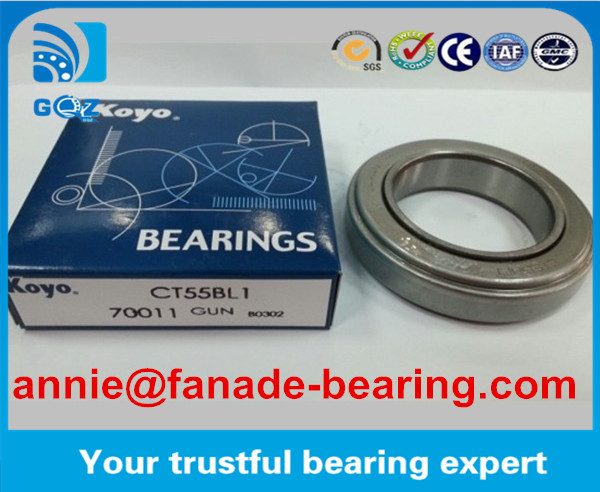

    Pictures Shows of KOYO Automotive clutch release bearing:



    Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X





    Auto Spare Parts Clutch Release Automotive Bearings CT55BL1 TK55-1A1U3 55TMK804X

    Different Brand Clutch Release Bearings:



    BOUNDARY DIMENSIONS
    KOYO
    NSK
    NTN
    NACHI
    DMB
    OEM NO.
    CARTYPE
    67×38.1×16.4
    RCT38SL1
    24TK308B
    SF0816
    BC12S4
    RCT38SL1
    9-0095-040-1
    ISUZU
    57×35×14
    CT35S
    35TMK29B

    35TRK-1
    35TRK-1
    90043-63002
    MITSUBISH
    63.5×40×16
    RCT4064SL1
    TK40-14AU3
    SF0815
    40TRK39-4SB
    40TRK39-4SB
    90363-40003
    TOYOTA
    67×40×19.8
    RCT4067A2RS
    40TKD07
    SF0859
    40TRBC07-27SB
    40TRBC07-27B
    90363-40022
    TOYOTA
    70×40×18.5
    TCT40
    TK40-16AU3
    SF0845
    TOTRK30W2SB
    40TRK30W2SB

    TOYOTA
    66.6×37×20.7

    48TKA3214

    RCT37SA7
    48TKA3214

    ISUZU
    51.5×28.2×16
    28TAG12
    28TAG12
    28TAG12
    28TAG12
    28TAG12

    65.5×33×24.5
    RCT338SA1
    50TKE3301

    RCT338SA1

    74×45×18
    RCT45-1S
    TK40-4B
    SF0914

    RCT45-1S

    ISUZU
    74.5×45×19
    RCT4075-1S
    TK40-4A
    SF0820
    40TRK1
    RCT4075-1S
    30502-21000
    NISSAN
    60×33×17
    RCT3360A
    33TKD03/TK33-Z1
    SF0743
    BC7S1W2SB
    RCT3360A
    90363-3302
    TOYOTA
    87.5×55×19.5
    CT55BL1

    55TMK804X
    55TMK804
    TK55-1A1U3

    ISUZU
    116.5×70×27
    CT70B
    TK70-1A
    SF1412
    70TNK-1
    CT70B
    0345221003
    HINO/MITSUBISH
    73.5×45×16
    CT45-1S
    TK45-4
    45TMK804X
    40TNK804
    TK45-4U3
    90363-4009
    NISSAN/MAZAD
    96.5×52.4×20
    CT52A-1
    TK52Z-1BA
    52TMK804
    BC11S3
    CT52A-1

    101.8×65×22
    65TNK20
    65TNK20
    65TNK20
    65TNK20
    65TNK20

    NISSAN
    89×60×22
    60TNK20
    60TNK20
    60TNK20
    60TNK20
    60TNK20

    MITSUBISH
    77×45×19
    45TNK20
    45TNK20
    45TNK20
    45TNK20
    45TNK20

    74×45×18
    RCT45-4S
    45TKD02
    SF0914
    45TMK-1
    RCT45-4S

    92×52.4×26.2

    052TRBC09-7
    053TRBC09-7

    TOYOTA
    100×55×17

    41211




    Other Series Clutch Release Bearings:



    Type Nominal Torque Overrunning Limiting Speeds r/min Diamension in Coutour / mm weight
    N·m Out Race Size Inner Race Size
      Inner Race Outer Race D / h7 D1/H7 B F n-M E H d/H7 C bn×tn e kg
    CKZ-B 25110 404 700 300 110 80 68 95 6-M8 15 20 25 70 10×3.3 4.5 3.98
    CKZ-B35130 825 560 250 130 90 85 100 6-M10 15 25 35 87 10×3.3 4.5 7.01
    CKZ-B45150 1464 490 200 150 110 90 130 6-M10 20 25 45 92 14×3.8 4.5 9.69
    CKZ-B50165 1830 420 150 165 120 92 145 6-M12 20 25 50 97 14×3.8 5 12.36
    CKZ-B50180 2990 420 150 180 125 106 160 6-M12 20 25 50 108 16×3.8 5 16.51
    CKZ-B60200 3494 350 120 200 150 115 180 6-M12 25 25 60 117 20×4.9 6 22.02
    CKZ-B70240 4920 350 120 240 170 122 210 6-M14 25 30 70 124 22×5.4 6 34.65
    CKZ-B75260 5760 280 100 260 200 130 230 6-M18 25 35 75 138 22×5.4 8 42.38
    CKZ-B80300 7500 280 100 300 230 136 265 6-M18 25 35 80 138 22×5.4 8 57.17
    CKZ-B25100 400 750 350 100 75 80 88 6-M18 10 16 25 82 8×3.3 4.5 2.62
    CKZ-B28105 400 700 300 105 80 68 95 6-M8 15 16 28 70 10×3.3 4.5 2.75
    CKZ-B3090 350 800 380 90 62 49 75 6-M6 10 15 30 50 8×2.0 4 4.86
    CKZ-B3290 380 800 380 90 65 60 80 8-M6 10 16 32 60 10×3.7 4 4.32
    CKZ-B30110 404 700 300 110 80 68 95 6-M8 15 16 30 70 10×3.3 4.5 3.91
    CKZ-B32125 1021 560 250 125 95 90 110 8-M8 15 12 32 92 10×3.3 4.5 6.53
    CKZ-B35115 800 700 300 115 72 78 95 6-M11 15   35 78 10×3.3 4.5 4.63
    CKZ-B40125 800 600 300 125 95 76 110 6-M8 15 18 40 80 12×3.3 4.5 5.6
    CKZ-B45190 2150 380 130 190 130 86 160 4-M4 20   45 86 14×3.8 6 17.5
    CKZ-B55155 1735 490 200 155 125 100 140 8-M8 20 20 55 102 16×4.3 5 10.96
    CKZ-B55175 1800 420 150 175 110 79 155 6-M10 20 15 55 87 16×4.3 5 14.92
    CKZ-B60180 3100 420 150 180 140 124 158 8-M10 25 20 60 128 18×4.4 6 17.25
    CKZ-B65180 3100 420 150 180 140 122 158 8-M10 25 20 65 124 18×4.4 6 16.68
    CKZ-B80160 1830 420 150 -160 130 100 145 6-M8 25 20 80 112 22×5.4 6 11.42
