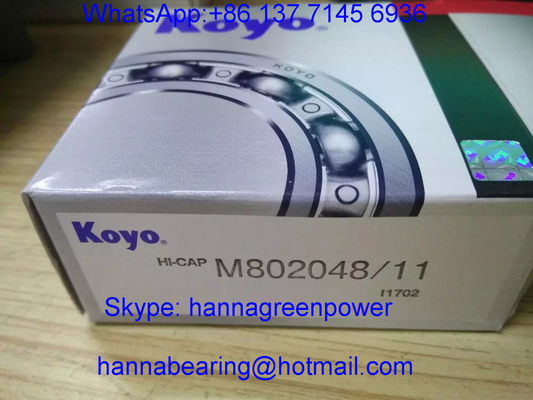

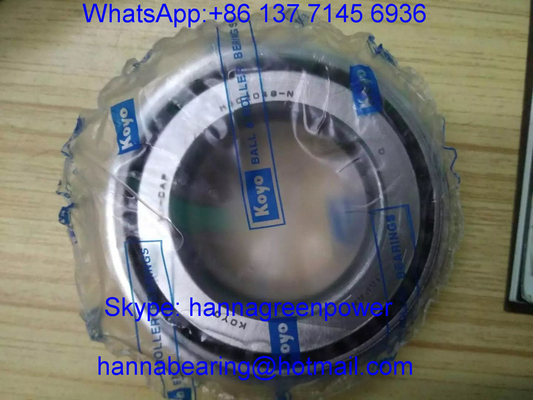

M802048/11 / HI-CAP M802048-N Taper Roller Bearing , M802048-M802011 Automobile Bearing 41.275*82.55*26.543

1. Product Overview

M802048/11, HI-CAP M802048-N and M802048-M802011 are fully interchangeable inch single row separable tapered roller bearings under M802000 series, unified core mounting dimension d=41.275mm, D=82.55mm, T=26.543mm, consistent inner cone M802048 matched with outer cup M802011.

Model suffix technical difference explanation:

1. M802048-M802011 / M802048/11: Standard general base version, stamped steel cage, conventional integral quenching heat treatment, cost-effective for intermittent medium-load truck and construction equipment working conditions.
2. HI-CAP M802048-N: HI-CAP heavy load upgraded grade; N reinforced surface hardening process, optimized logarithmic roller contact curve, thicker roller body and improved surface finish, stronger wear resistance, anti-impact and high temperature durability, lower running noise, extended service life under 24h continuous heavy shock load.

Open split cone & cup independent structure, inner cone assembly (inner ring + tapered rollers + cage) and outer cup can be disassembled separately, convenient independent component replacement, preload adjustment and on-site maintenance of truck differential, vehicle drive axles and medium construction machinery reduction assemblies. All rings and rolling elements adopt through-hardened GCr15 chrome bearing steel, strict roller sorting and ultra-precision raceway superfinishing, stable low-vibration rotation under long-term alternating heavy radial & axial combined impact load. Widely matched for heavy-duty truck differential, agricultural tractors, light loaders and mining transport vehicle axle systems.

2. Technical Specifications

Unified universal base dimension for all three interchangeable models
d=41.275mm, D=82.55mm, T=26.543mm
Inner ring width B=25.654mm, Outer ring width C=20.193mm
Min inner ring fillet r=3.5mm, Min outer ring fillet r1=3.3mm
Structure: Single row separable tapered roller bearing, open without seal
Raw material: GCr15 through-hardened chrome steel
Standard cage: Stamped steel cage; solid brass cage optional for long-time high temperature operation
Standard clearance: C0 normal clearance, C3 enlarged clearance customizable
Operating temperature range: -40℃ ~ 120℃ (HI-CAP M802048-N up to 130℃)
Net weight: 0.63kg
Mounting limit size: da max=57mm, db min=50.6mm, Da min=70mm, Db max=79mm
Calculation coefficient: e=0.55, axial factor Y=1.10, static axial factor Y0=0.60
Basic dynamic radial load Cr: 105kN
Basic static radial load C0r: 105kN
Fatigue limit load Cu:15.4kN
Limiting speed: Grease lubrication 4900r/min, Oil lubrication 6500r/min

Performance difference between standard and HI-CAP upgraded version

1. M802048/11 & M802048-M802011: Standard heat treatment, general anti-abrasion performance, fit intermittent transportation and light construction load.
2. HI-CAP M802048-N: Exclusive N reinforced surface hardening + HI-CAP heavy load structural optimization, 30% longer overhaul cycle under continuous heavy impact, better anti-peeling and heat dissipation performance.
   Complete installation drawings, load characteristic curves and accelerated heavy impact fatigue test reports can be provided upon customer request.

3. Core Advantages

1. Three model numbers share fully interchangeable installation dimensions, customers can select cost-control standard M802048/11 for intermittent working or reinforced HI-CAP M802048-N for long-term continuous heavy-load truck and mining equipment.
2. Standard inch compact width design, balanced radial-axial combined load capacity, perfectly fit narrow housing layout of truck differential and vehicle drive axle assemblies.
3. Fully separable independent cone & cup split structure, damaged inner cone or outer cup can be replaced separately without overall disassembly of transmission housing, greatly reduce vehicle maintenance downtime and spare part procurement cost.
4. Precision mirror superfinished tapered raceway + logarithmic optimized roller contact curve, uniform stress distribution on roller contact surface, effectively reduce edge stress concentration and delay raceway peeling failure.
5. Dual cage configuration options: cost-effective stamped steel cage for general intermittent medium load; solid brass cage anti-deformation for non-stop high-temperature harsh transportation production lines.
6. Full customizable service support: C3 enlarged radial clearance, P5/P6 high precision grade, OEM laser marking, special high-temperature anti-oxidation grease filling, neutral export brand packaging.
7. HI-CAP M802048-N exclusive N surface strengthening heat treatment process, uniform internal material hardness and structural strength, reduce abnormal wear failure rate of vehicle axle bearings.
8. Open unsealed design supports built-in gearbox circulating oil bath lubrication, adapt to differential internal abundant circulating lubricating oil system, realize long-term stable continuous operation.

4. Application Scenarios

M802048 series inch heavy-duty tapered roller bearing is core vulnerable spare part for transportation and light construction machinery:

• Heavy-duty truck differential main support bearing assemblies, tractor drive axle positioning bearings
• Light loader, mini road roller auxiliary transmission reduction bearing units
• Underground mining small transport vehicle wheel hub heavy load bearing positions
• Medium agricultural harvester and engineering vehicle half shaft rotary support assemblies
• Small industrial gearbox compact transmission shaft support bearings

Aftermarket interchangeable 41.275mm bore M802000 series inch separable tapered roller bearing
Cost-effective two-grade interchangeable bearing solution for truck parts OEM manufacturers, vehicle repair factories and agricultural machinery bulk matching.

5. Why Choose GQZ Bearing

25 years professional manufacturing experience for M802000 series inch tapered roller bearings including M802048/11, HI-CAP M802048-N and M802048-M802011
All three model numbers fully dimensionally interchangeable with international ABMA standard inch tapered roller bearings, consistent mounting size, load rating and assembly tolerance indicators.
Complete OEM & ODM customization service supporting brass cage, C3 clearance upgrade, high precision grade and special high/low temperature lubricant filling.
Full strict pre-delivery inspection: raw material hardness test, cone raceway grinding precision inspection, heavy load reciprocating impact fatigue cycle test, contact surface roughness detection.
Professional tapered bearing engineering team provides vehicle shaft and differential housing tolerance matching installation technical guidance within 24 hours.
Stable mass production lines with favorable bulk wholesale prices for long-term truck parts OEM, vehicle repair factories and agricultural equipment suppliers.
We focus on compact inch heavy-load separable design, balanced radial-axial combined load capacity, easy independent maintenance structure and long-term win-win cooperation with global transportation & light construction machinery spare parts buyers.

6. Quality Control

Raw material chemical composition and surface hardness inspection of GCr15 chrome bearing steel
Precision turning, quenching tempering and mirror superfinishing processing for inner and outer ring tapered raceways
Differentiated targeted heat treatment process: M802048/11 standard integral quenching; HI-CAP M802048-N extra N special surface strengthening hardening to eliminate internal processing residual stress.
Classified targeted performance testing: Standard M802048 series long-cycle intermittent load aging test; HI-CAP M802048-N continuous heavy impact wear resistance test, high-speed low friction torque temperature rise detection.
Tapered roller sorting, steel/brass cage assembly, full dimensional and appearance recheck before anti-rust oil packaging and shipment.
Each batch of M802048 series bearings passes full sampling heavy-load reciprocating rotation fatigue test to guarantee stable long-term operation inside truck differential, agricultural axle and light construction transmission equipment.

7. Get A Quote Now

If you need cost-effective standard M802048/11 and HI-CAP reinforced anti-wear M802048-N inch tapered roller bearings for truck differential, agricultural machinery and light construction equipment maintenance & OEM matching, send your inquiry directly.
You will receive complete professional supporting services after submitting your inquiry:
Fast official factory quotation reply within 24 hours
One-on-one vehicle shaft & differential housing matching tolerance installation technical guidance from professional M802000 series inch bearing engineers
Customized bearing scheme suggestions including brass cage and C3 enlarged clearance upgrade options
Competitive direct factory bulk wholesale price for large spare parts bulk orders
Send your required purchase quantity and equipment continuous heavy-load & medium-high temperature working environment to obtain detailed formal quotation.

8. FAQ

1. Q1: What is the relation between M802048/11, HI-CAP M802048-N and M802048-M802011?
   A1: They adopt identical inner cone M802048 and outer cup M802011, fully interchangeable in installation size; M802048/11 & M802048-M802011 are standard base models, HI-CAP M802048-N is upgraded heavy-load reinforced version with better wear and high temperature resistance.
2. Q2: What structural characteristic do M802048 series bearings have?
   A2: Inch standard open separable single row tapered roller bearing, inner cone assembly and outer cup can be disassembled separately, standard stamped steel cage, no built-in seal, suitable for differential and gearbox with internal circulating oil lubrication.
3. Q3: What loads can M802048 series bearings bear?
   A3: It can bear combined radial load plus unidirectional axial thrust load; bidirectional axial positioning requires two bearings installed back-to-back/O-type with reasonable preload.
