NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

    • NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery
    • NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery
  • NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

    Product Details:

    Place of Origin: Japan
    Brand Name: INA//OEM
    Certification: ISO9001:2008
    Model Number: NN3009MBKR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Structure: Cylindrical Type: Roller
    Application: Vibration Machinary,CNC Machine And So On Packing Style: According To Your Request
    Material: GCR-15 Bearing Steel Precision: P0,P6,P5,P4

    Imported NSK double row Cylindrical roller bearing NN3009MBKR NN3009TBKR rock drilling machinery bearing



    Cylindrical roller bearings NN3009MBKR

    Bearing number : NN3009MBKR

    Size (mm) : 45x67.5x23

    Brand : NSK

    Bore Diameter (mm) : 45

    Outer Diameter (mm) : 67,5

    Width (mm) : 23

    Bearing dimensions and specification in brand catalogue :

    d - 45 mm

    D - 75 mm

    E - 67,5 mm

    B - 23 mm

    C - 23 mm

    r min. - 1 mm

    Weight - 0,407 Kg

    Basic dynamic load rating (C) - 52 kN

    Basic static load rating (C0) - 68,5 kN

    (Grease) Lubrication Speed - 12 500 r/min

    (Oil) Lubrication Speed - 15 000 r/min



    Introduction about NSK double row Cylindrical roller bearing NN3009MBKR :

    NSK’s double row cylindrical roller bearing’s rigidity makes them a perfect match for use in machine tool spindles. Tipically,single row and double row cylindrical roller bearings have either bore or a tapered bore. Double row culindrical roller bearings with a tapered bore are often mounted to the main shaft as a fixedend bearing.Simplicity in design and the ability to adjust radial internal clearance after mounting continue to make these bearings populor among machine tool users .

    NSK offers several types of cylindrical roller bearings. Users can request and E44 configuration,which includes both lubrication holes and a machined lubrication groove on the outside surface of the outer ring. Types of bearings include the NNU type, which feathures double ribbed outer rings, and the NN type,which features excellent grease discharge during the initial running-in period,and helps promote steady oil flow throught the bearing.

    For thin section type bearings , the narrower NN39 series is more suitable than the wider NN49 series due to less heat generation and greater roller stability.Machined brass cages are most common wth cylindrical roller bearings. NSK offers a roller guide pps resin cage for the NN30 series, and a PEEK resin cage, which is guided by the outer ring, for N10 series series of ultra high-speed single-row cylindrical roller bearings.



    Types of cylindrical roller bearing:

    .Single row cylindrical roller bearing: NU, NJ, NUP, NUB series

    .Double row cylindrical roller bearings:NNU series

    .Four row cylindrical roller bearing:FC series

    .Single row full complement cylindrical roller bearing:SL18 series, SL 19 series

    .Double row full complement cylindrical roller bearing

    .SL01 series, SL02 series, SL18 series.



    NSK double row Cylindrical roller bearing NN3009MBKR numbering system :

    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery





    Bearing type Cage symbol Specification Available size
    NN MB Roller guided machined brass cage

    NN3005,NN3026-NN3040

    NN3920-NN3956,NN4920-NN4940

    TB Roller guided PPS resin cage NN3006-NN3024
    NNU MB Roller guided machined brass cage NNU4920-NNU4940
    N MR Roller guided machined brass cage N1006-N1028
    TP Outer ring guided PEEK resin cage N1009-N1017





    Rock drilling machinery bearing cylindrical roller bearing NN3009MBKR model series :



    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery



    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

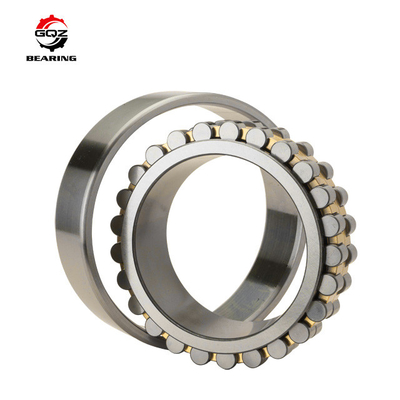

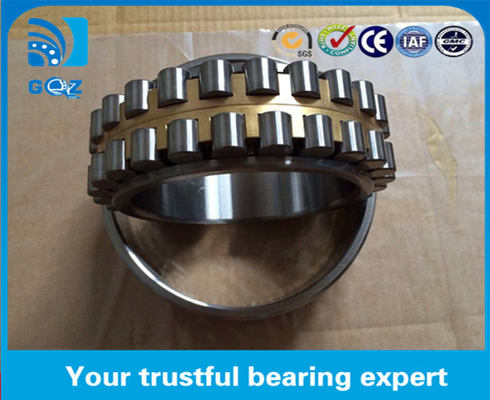

    NSK double row Cylindrical roller bearing NN3009MBKR pictures :



    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery



    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery

    NSK GCR-15 P5 P4 Double Row Roller Bearing NN3009MBKR For Rock Drilling Machinery
