Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

    • Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013
    • Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013
  • Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

    Product Details:

    Place of Origin: Japan
    Brand Name: NACHI/OEM
    Certification: ISO9001:2008
    Model Number: SL185013

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Structure: Cylindrical Type: Roller
    Material: Chrome Steel Application: Vibration Machinary,CNC Machine And So On

    cylindrical roller bearing SL185013 pressure roller bearings Double row full complement roller bearing SL185013



    Our range of products:
    • Angular Contact Ball Bearing
    • Ball Bearing
    • Cylindrical Roller Bearing
    • Deep Groove Ball Bearing
    • Double Row Ball Bearing
    • Extra Large Size Ball Bearing
    • Linear Bushing
    • Miniature Ball Bearing
    • Needle Roller Bearing
    • Pillow Block
    • Precision Ball Bearing
    • Radial Ball Bearing
    • Roller Bearing
    • Self-Aligned Ball Bearing
    • Single Row Ball Bearing
    • Spherical Roller Bearing
    • Super Precision Ball Bearing
    • Tapered Roller Bearing
    • Thrust Ball Bearing
    • Thrust Roller Bearing
    • Wider Inner Ring Ball Bearing
    • Etc.



    Description:



    Full complement cylindrical roller bearings have solid inner and outer rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to their kinematic conditions, however, they cannot achieve the high speeds that are possible when using cylindrical roller bearings with cage.



    Single row full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs.

    The cylindrical roller bearings are supplied in an open design.

    Series: SL1830



    Full complement cylindrical roller bearing SL185013 shanghai factory bearing design :



    Bearing number : SL185013

    Size (mm) : 65x100x46 mm

    Bore Diameter (mm) : 65

    Outer Diameter (mm) : 100

    Width (mm) : 46

    Bearing dimensions and specification in brand catalogue :

    d - 65 mm

    D - 100 mm

    B - 46 mm

    C - 46 mm

    Weight - 1,32 Kg

    Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013





    cylindrical roller bearing SL185013 pressure roller bearings model series :

    model d D B
    mm mm mm
    SL182204 20 47 18
    SL182205 25 52 18
    SL182206 30 62 20
    SL182207 35 72 23
    SL182208 40 80 23
    SL182209 45 85 23
    SL182210 50 90 23
    SL182211 55 100 25
    SL182212 60 110 28
    SL182213 65 120 31
    SL182214 70 125 31
    SL182215 75 130 31
    SL182216 80 140 33
    SL182217 85 150 36
    SL182218 90 160 40
    SL182219 95 170 43
    SL182220 100 180 46
    SL182222 110 200 53
    SL182224 120 215 58
    SL182226 130 230 64





    cylindrical roller bearing SL185013 pressure roller bearings application :

    Full-complement cylindrical roller bearings for crane sheaves
    Gear box producers
    Transmission motor producers
    Steel industry
    Producers for construction equipment
    Forest technology
    Synthetic material industry
    Machine tool producers
    Producers of measuring devices and dividing units
    Rotary table manufactures
    Maritime industry
    Metal forming technology
    Crane sheave on the sea
    Deck crane
    Transmission
    Planetary speed reducer

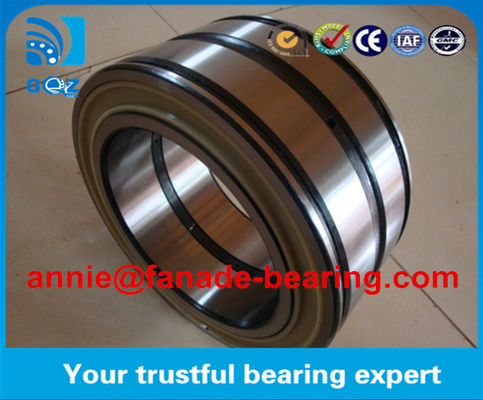

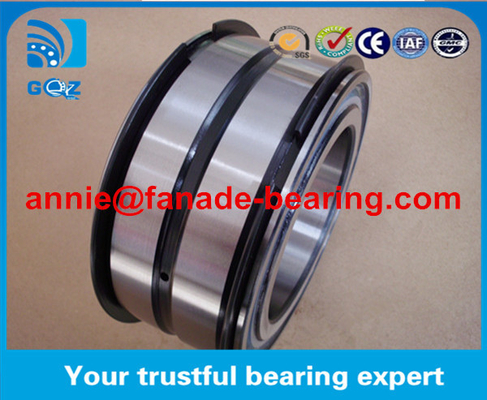

    cylindrical roller bearing SL185013 pressure roller bearings pictures :

    Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

    Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

    Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013

    Cylindrical Roller Bearing SL185013 Pressure Roller Bearings Double Row Full Complement Roller Bearing SL185013
