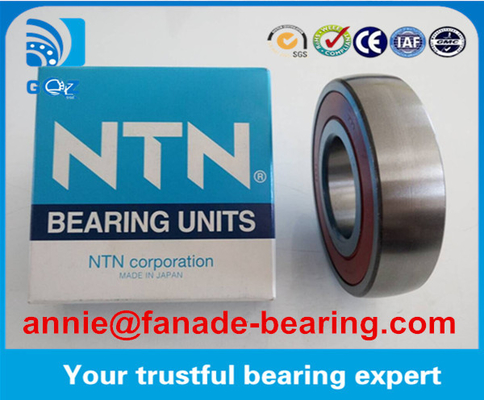

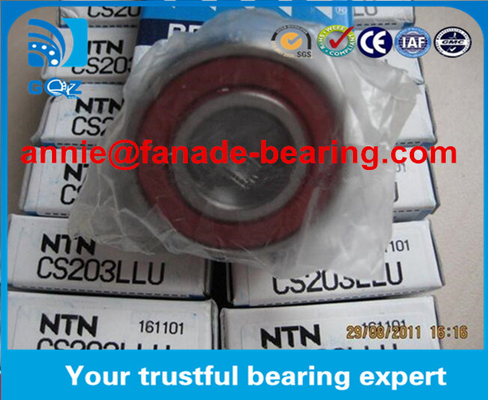

Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

    • Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm
    • Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm
  • Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

    Product Details:

    Place of Origin: JAPAN
    Brand Name: NTN/OEM
    Certification: ISO9001
    Model Number: CS203LLU

    Payment & Shipping Terms:

    Minimum Order Quantity: 1.pcs
    Price: USD0.1-1000/PC
    Packaging Details: 1pc/plastic bag + color box + carton + plywood pallets 2. wooden box 3. as your requirements
    Delivery Time: 2 ~ 5 working days
    Payment Terms: T/T, Western Union,Paypal,
    Supply Ability: 100000PCS/Week
    Contact Now
    Detailed Product Description
    Structure: Deep Groove Ball Bearing Type: Ball
    Size: 17*40*12mm Number Of Row: Single Row
    Cage: Nylon; Steel; Brass; Bronze Main Market: America, European, Africa, Middle East

    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm​



    NTN bearing are machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings. miniature ball bearings are available in inch and metric sizes, open or shielded and flanged or unflanged. For extreme noise sensitive applications, superior hardness and corrosion resistance our ball bearings are manufactured with DD400™ stainless steel material. Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
    In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.





    SEAL OR SHIELD

    No Symbol: Open Type

    LB, LLB: Non-contact rubber seal

    LU, LLU: Double-lip contact rubber seal

    LH,LLH: Light contact rubber seal

    LUA,LLUA: Polyacrylic rubber seal

    LUA1,LLUA1: Fluorocarbon rubber seal

    Z, ZZ: Shield

    Z1, ZZ1: Stainless steel shield

    ZA, ZZA: Removable shield



    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm



    Deep groove ball bearings CS203LLU

    Bearing number : CS203LLU

    Size (mm) : 17x40x12 mm

    Brand : NTN

    Bore Diameter (mm) : 17,000

    Outer Diameter (mm) : 40,000

    Width (mm) : 12,000

    Bearing dimensions and specification in brand catalogue :

    d - 17,000 mm

    D - 40,000 mm

    B - 12,000 mm

    C - 12,000 mm

    Weight - 0,06 Kg



    Model d/mm D/mm B/mm Weight/KG
    6000LLU/ZZ 10 26 8 0.042
    6001LLU/ZZ 12 28 8 0.049
    6002LLU/ZZ 15 32 9 0.066
    6003LLU/ZZ 17 35 10 0.086
    6004LLU/ZZ 20 42 12 0.152
    6005LLU/ZZ 25 47 12 0.216
    6006LLU/ZZ 30 55 13 0.256
    6007LLU/ZZ 35 62 14 0.342
    6008LLU/ZZ 40 68 15 0.423
    6009LLU/ZZ 45 75 16 0.54
    6010LLU/ZZ 50 80 16 0.575
    6200LLU/ZZ 10 30 9 0.071
    6201LLU/ZZ 12 32 10 0.082
    6202LLU/ZZ 15 35 11 0.099
    6203LLU/ZZ 17 40 12 0.143
    6204LLU/ZZ 20 47 14 0.234
    6205LLU/ZZ 25 52 15 0.282
    6206LLU/ZZ 30 62 16 0.439
    6207LLU/ZZ 35 72 17 0.635
    6208LLU/ZZ 40 80 18 0.807
    6209LLU/ZZ 45 85 19 0.897
    6210LLU/ZZ 50 90 20 1.02
    6300LLU/ZZ 10 35 11 0.117
    6301LLU/ZZ 12 37 12 0.132
    6302LLU/ZZ 15 42 13 0.181
    6303LLU/ZZ 17 47 14 0.254
    6304LLU/ZZ 20 52 15 0.317
    6305LLU/ZZ 25 62 17 0.511
    6306LLU/ZZ 30 72 19 0.763
    6307LLU/ZZ 35 80 21 1.01
    6308LLU/ZZ 40 90 23 1.4
    6309LLU/ZZ 45 100 25 1.84
    6310LLU/ZZ 50 110 27 2.36


    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm

    Janpan Brand NTN Printing Machine Bearing Single Row Deep Groove Ball Bearing CS203LLU with size 17*40*12mm
