15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing

15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing

    • 15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing
    • 15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing
  • 15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing

    Product Details:

    Place of Origin: Germany
    Brand Name: FAG or other brand
    Certification: ISO
    Model Number: B7003-C-T-P4S-UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: B7003-C-T-P4S-UL ID: 17 Mm
    OD: 35 Mm Height: 10 Mm
    Precision: P4S Material: Gcr15
    Contact Angle: 15 Degree Stock: 325 Piece

    15 degree Contact Angle P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing



    1. Specification:



    Specification of Bearing

    Bearing type

    Angular contact ball bearing

    Brand type

    FAG

    Precision Rating

    Germany

    Vibration

    Z1V1,Z2V2,Z3V3

    Durability

    Long

    Material

    Bearing steel

    Certificate

    ISO9001:2008

    Main market abroad

    South America,USA,European,Southeast

    Asia,Middle East

    Packaging Details

    1. inner:polyester bag outer:paper carton

    2. industrial standard packing

    3. Poly bag+box+packing

    4. 4. as your order

    Delivery Time

    Within 3-5 days after receiving

    your subscription

    Payment Terms

    T/T,Western Union,Paypal



    2. Feature:

    (1) Singe row

    (2) P4S precision

    (3) Universal matching type
    (4) Germany origin

    (5) 15 degree contact angle



    3. Anguar contact contact angle:

    AC: 25 degree

    B: 40 degree

    C: 15 degree

    A: 30 degress



    4. Matching type:

    DB: back to back

    DF: face to face

    DT: Series connect

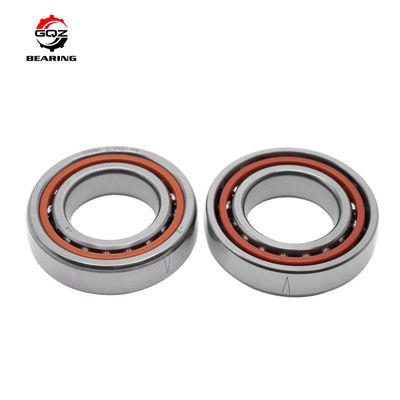

    5. Bearing Picture:

    15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing

    15 Degree Angular Contact Ball Bearing P4S Precision FAG B7003-C-T-P4S-UL Super Precision Ball Bearing



    6. We also supply following angular contact ball bearing:

    Designation Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass
            dynamic static Reference speed Limiting speed
      d D B C C0 Pu
    - mm     kN   kN r/min   kg
    7200BEP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
    7200BECBP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
    7201BEP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
    7201BECBP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
    7201BEGAP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
    7301BEP 12 37 12 10,6 5 0,208 24000 24000 0,063
    7202BEP 15 35 11 8,84 4,8 0,204 24000 24000 0,045
    7202BECBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
    7202BEGAP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
    7202BEGBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
    7302BEP 15 42 13 13 6,7 0,28 20000 20000 0,081
    7302BECBP 15 42 13 13 6,7 0,28 20000 20000 0,081
    7203BEP 17 40 12 10,4 5,5 0,236 20000 20000 0,064
    7203BEY 17 40 12 11,1 6,1 0,26 20000 20000 0,064
    7203BECBP 17 40 12 11 5,85 0,25 22000 22000 0,064
    7203BEGAP 17 40 12 11 5,85 0,25 22000 22000 0,064
    7203BECBM 17 40 12 11 5,85 0,25 22000 22000 0,07
    7303BEP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
    7303BECBP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
    7303BEGAP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
    7204BEP 20 47 14 13,3 7,65 0,325 18000 18000 0,11
    7204BECBM 20 47 14 13,3 7,65 0,325 18000 19000 0,11
    7204BECBY 20 47 14 14 8,3 0,355 18000 18000 0,11
    7204BECBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
    7204BEGAP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
    7204BEGBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
    7304BEP 20 52 15 17,4 9,5 0,4 16000 16000 0,14
    7304BEY 20 52 15 19 10,4 0,44 16000 16000 0,15
    7304BECBY 20 52 15 19 10,4 0,44 16000 16000 0,15
    7304BECBP 20 52 15 19 10 0,425 18000 18000 0,14
    7304BEGAP 20 52 15 19 10 0,425 18000 18000 0,14
    7304BEGBP 20 52 15 19 10 0,425 18000 18000 0,14
    7304BECBPH 20 52 15 19 10 0,425 18000 18000 0,14
    7304BECBM 20 52 15 19 10 0,425 18000 18000 0,15
    7205BEP 25 52 15 14,8 9,3 0,4 15000 15000 0,13
    7205BEY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
    7205BECBY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
    7205BEGAY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
