C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing

C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing

    • C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing
    • C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing
  • C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing

    Product Details:

    Place of Origin: Japan
    Brand Name: NTN
    Certification: ISO9001:2008
    Model Number: NU209EMC3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3 working days after received your payment
    Payment Terms: T/T or western Union or PayPal
    Supply Ability: 3,000pcs per month
    Detailed Product Description
    Product Name: NU209EMC3 ID: 45 Mm
    OD: 85 Mm Height: 19 Mm
    Clearance: C3 Cage: Brass Cage
    Lubrication: Oil Or Grease Lead Time: Within 3 Days

    C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing



    1. Specification:

    Bearing No. NU209EMC3
    Type Cylindrical roller bearing
    ID 45mm
    OD 85mm
    Height 19mm

    (1) Bearing No.: NU209EMC3

    (2) Type:Singe row cylindrical roller bearing

    (3) Cage type:brass cage

    (4) Radial clearance:

    CC1: standard clearance for cylindrical bore

    CC0: standard clearance for tapered bore

    CCG: special radial clearance



    2. Feature:

    (1) Single row

    (2) Brass cage

    (3) chrome steel material

    (4) Standard clearance for cylindrical bore

    (5) 1/21 taper bore

    (6) P4 precision

    (7) High speed



    3. Type of  cylindrical roller bearing

    a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

    b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

    c. multi-row cylindrical roller bearings, caged.

    d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

    e. double row full complement cylindrical roller bearings, mainly of the NNF design.

    f.  multi-row full complement cylindrical roller bearings, with four rollers.



    4. Series of  cylindrical roller bearing

    1. Types NU, N, NNU, and NN are suitable as free-end bearings.
    2. Types NJ and NF can sustain limited axial loads in one direction.
    3. Types NH and NUP can be used as fixed-end bearings.
    4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type
    5.  L-shaped thrust collars.
    6. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the
    7.  marked side is on the outside.
    8. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
    9. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

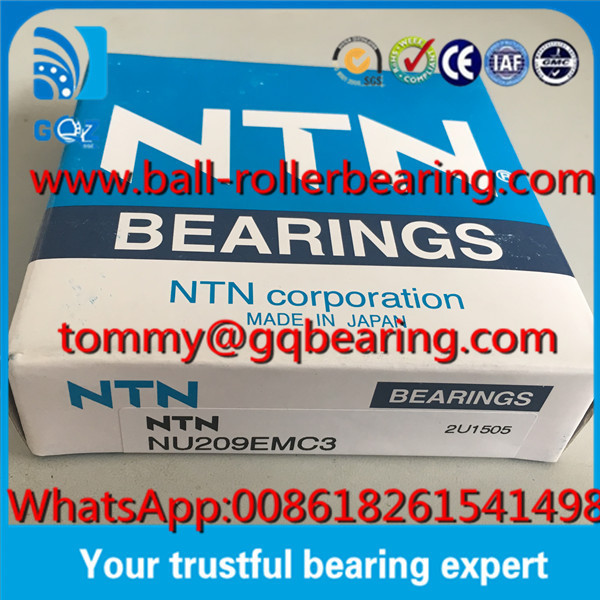

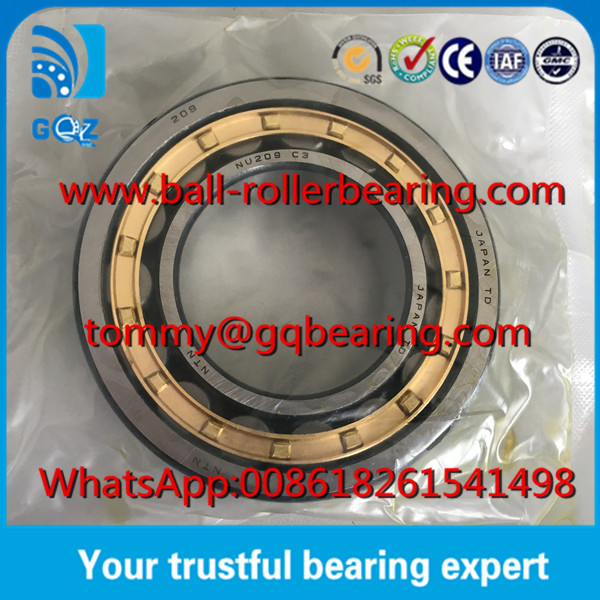

    5. Bearing Picture:

    C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing

    C3 Clerance Brass Cage NTN NU209EMC3 Cylindrical Roller Bearing

    If you want to buy this bearing,just contact us!
