150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer

1 pcs
MOQ
negotiation
Price
150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 150752307
ID: 35 Mm
OD: 86.5 Mm
Height: 50 Mm
Number Of Row: Double Row
Cage Type: Brass Cage
Material: Chrome Steel
Application: Reducer
High Light:

Nylon Cage Cylindrical Roller Bearing

,

Reducer Cylindrical Roller Bearing

,

Eccentric Cylindrical Roller Bearing

Basic Infomation
Place of Origin: China
Brand Name: GQZ or other brand
Certification: ISO9001:2008
Model Number: 150752307
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description

150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer

1. Specification:

Bearing No.150752307
TypeCylindrical roller bearing
Numbers of RowSinge Row
ApplicationEccentric Bearing
Size:35x86.5x50mm



  • Double eccentric bearing 150752307 is cycloidreducer inside a very important Parts , Has a central role in the , is a very used bearing types.
  • Mainly includes outer circle, inner circle, roller, roller basket.
  • Eccentric bearing structure is simple, easy to use, does not need to partiality axis can achieve eccentric function.
  • Making eccentric institutions greatly simplified and also make the eccentric institution of the mechanical processing save work, saving time, and assembly, and to reduce the eccentric institutions to the manufacturing cost
  • With in the inner ring of the hole for the eccentric hole, the eccentric hole on the inside wall of a vertical keyways

2. Feature:
(1) Double row
(2) Brass cage
(3) chrome steel material
(4) Eccentic bearing
(5) Reducer application

3. Type of  cylindrical roller bearing
a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.
b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.
c. multi-row cylindrical roller bearings, caged.
d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.
e. double row full complement cylindrical roller bearings, mainly of the NNF design.
f.  multi-row full complement cylindrical roller bearings, with four rollers.

4. Series of  cylindrical roller bearing

  1. Types NU, N, NNU, and NN are suitable as free-end bearings.
  2. Types NJ and NF can sustain limited axial loads in one direction.
  3. Types NH and NUP can be used as fixed-end bearings.
  4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type
  5.  L-shaped thrust collars.
  6. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the
  7.  marked side is on the outside.
  8. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
  9. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

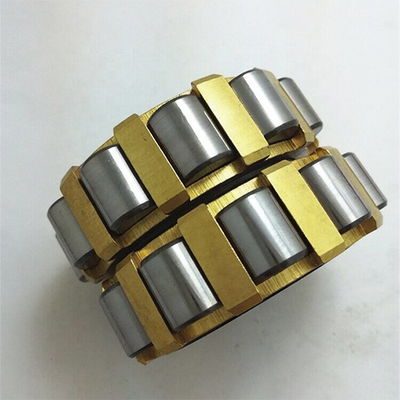

5. Bearing Picture:
150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer 0150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer 1
150752307 Eccentric Bearing 150752307K Brass Cage Cylindrical Roller Bearing for Reducer 2

6. We also supply following eccentic bearings:

NTN eccentric bearingKOYO eccentric bearingHI eccentric bearingTrans eccentric bearing
19UZS20822UZ2111115T2 PX1130712201TRANS61059
19UZS208T222UZ221143T2 PX1150712201TRANS60959
20UZS8022UZ2112529T2 PX1180712201TRANS61071
20UZS80T222UZ2117187T2 PX1200712201TRANS61087
22UZ21117T222UZ411 5159T2X-EX250712201TRANS6110608
22UZ21111T2 PX122UZ411 7187T2X-EX300712201TRANS6111115
22UZ831122UZ7187350712201TRANS6111317
22UZ83172925UZ414 43-59T2X-EX45712202TRANS61121
22UZ831729T225UZ61413-17T250712202TRANS6112529
25UZ41725UZ61406-11T270712202TRANS61135
25UZ45925UZ852125/417T2S75712202TRANS61143
25UZ48725UZ852935T280712202TRANS6115159
25UZ85061125UZ857187T2S100712202TRANS6117187
25UZ8506-11T235UZ8617-25T2S130712202TRANS61406-11
25UZ8513-17T235UZ862935T2150712202TRANS61413-17
25UZ854359H-33UZSF25T2S180712202TRANS6142125
25UZ854359T2H-37UZSF25T2S200712202TRANS6142935
25UZ858760UZS417T2-SX250712202TRANS61443-59
35UZ61160UZS417T2X-SX300712202TRANS6147187
35UZ860608T260UZS87T2 RC350712202TRANS61513-17
35UZ86293565UZS418T2-SX150712202KTRANS6160608

If you want to buy this bearing,just contact us!
