INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing

INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing

  • High Light

    P5 Precision Slewing Ring Bearing

    ,

    Axial Radial Slewing Ring Bearing

    ,

    Non Gear Type Slewing Ring Bearing

  • Type
    Slewing Bearing
  • Feature
    Cross Roller
  • Material
    42CrMo/50Mn /Chrome Steel
  • Application
    All Types Crane,Crane,Rotating Machine,Excavator Accessories
  • Place of Origin
    Germany
  • Brand Name
    INA
  • Certification
    ISO9001
  • Model Number
    YRT150-C or YRTC150-XL
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiation
  • Packaging Details
    in individual packing box
  • Delivery Time
    3-5 working days
  • Payment Terms
    T/T, Western Union, MoneyGram,PayPal
  • Supply Ability
    1000 Sets per month

INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing

INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing



1. Specification:

• YRT rotary table bearings consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical rollers. Housing washer and shaft washer have equally spaced fitting bolt.
• These bearings have high axial and radial load, and high tilting rigidity and high precision.
• Applications: mainly used on the machine tools, high precision machinery of the rotary table or sub-set, and chuck, measuring instruments and test equipment and rotary table.
• Outer Diameters: range from 126 mm to 1300 mm.



2. Feature:

(1) Double direction

(2) For screw mounting

(3) Good quality

(4) Competitive price

(5) Quick delivery

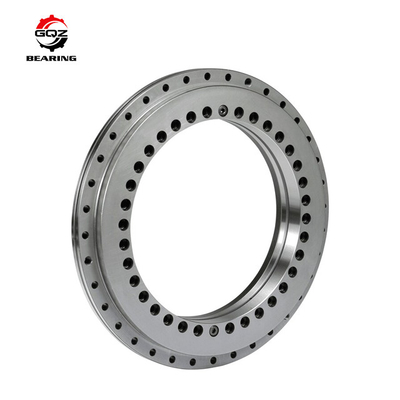

3. Bearing Picture:

INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing 0INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing 1

INA YRT150-C Rotary Table Bearing INA YRTC150-XL Axial/Radial Slewing Bearing 2

4. We also supply following slewing ring bearing:

Bearing Type Boundary dimensions (mm) Gear Teeth
Nongeared External Gear Internal Gear D d H D1 d1 dn n n1 H1 h b m
010.20.250 011.20.250   330 170 60 298 202 16 18 2 50 10 40 4
010.20.280 011.20.280   360 200 60 328 232 16 18 2 50 10 40 4
010.25.315 011.25.315 013.25.315 408 222 70 372 258 18 20 2 60 10 50 5
010.25.355 011.25.355 013.25.355 448 262 70 412 298 18 20 2 60 10 50 5
010.25.400 011.25.400 013.25.400 493 307 70 457 343 18 24 2 60 10 50 6
010.25.450 011.25.450 013.25.450 543 357 70 507 393 18 24 2 60 10 50 6
010.30.500 011.30.500 013.30.500 602 398 80 566 434 18 20 4 70 10 60 5
012.30.500 014.30.500 602 398 80 566 434 18 20 4 70 10 60 6
010.30.560 011.30.560 013.30.560 662 458 80 626 494 18 20 4 70 10 60 5
012.30.560 014.30.560 662 458 80 626 494 18 20 4 70 10 60 6
010.30.630 011.30.630 013.30.630 732 528 80 696 564 18 24 4 70 10 60 6
012.30.630 014.30.630 732 528 80 696 564 18 24 4 70 10 60 8
010.30.710 011.30.710 013.30.710 812 608 80 776 644 18 24 4 70 10 60 6
012.30.710 014.30.710 812 608 80 776 64 18 24 4 70 10 60 8
010.40.800 011.40.800 013.40.800 922 678 100 878 722 22 30 6 90 10 80 8
012.40.800 014.40.800 922 678 100 878 722 22 30 6 90 10 80 10
010.40.900 011.40.900 013.40.900 1022 778 100 978 822 22 30 6 90 10 80 8
012.40.900 014.40.900 1022 778 100 978 822 22 30 6 90 10 80 10
010.40.1000 011.40.1000 013.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 10
012.40.1000 014.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 12
010.40.1120 011.40.1120 013.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 10
012.40.1120 014.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 12
010.45.1250 011.45.1250 013.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 12
012.45.1250 014.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 14
010.45.1400 011.45.1400 013.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 12
012.45.1400 014.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 14
010.45.1600 011.45.1600 013.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 14
012.45.1600 014.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 16



If you want to buy INA YRT150-C bearing,just contact us.
