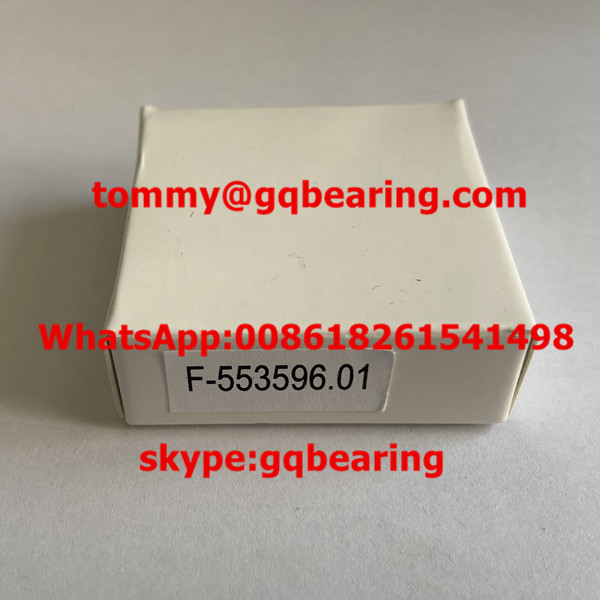

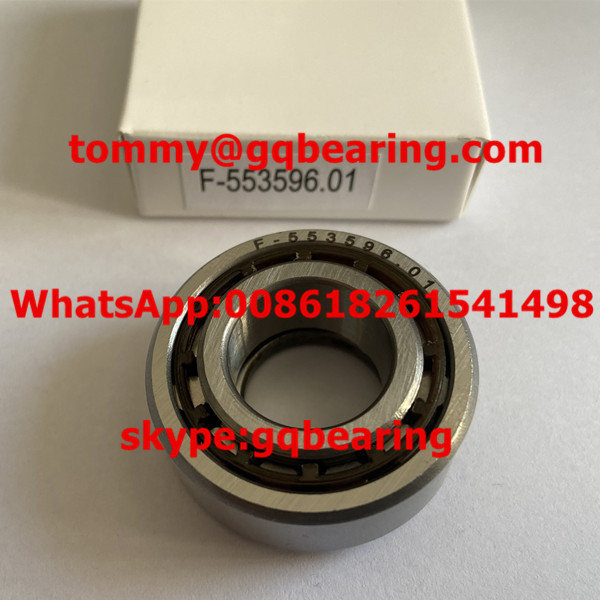

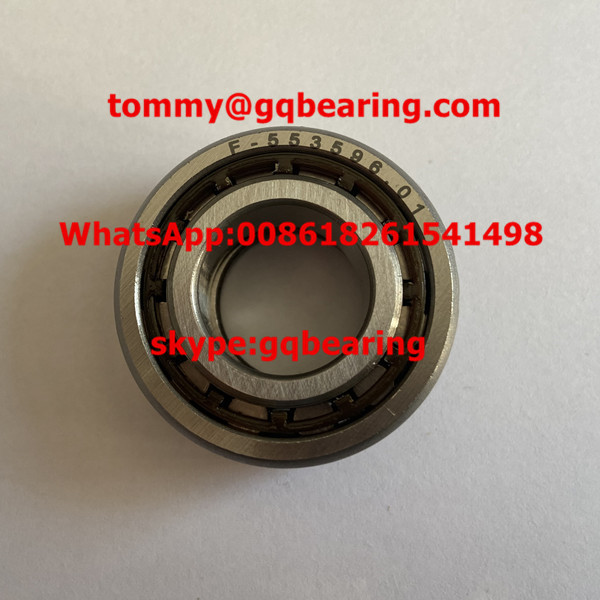

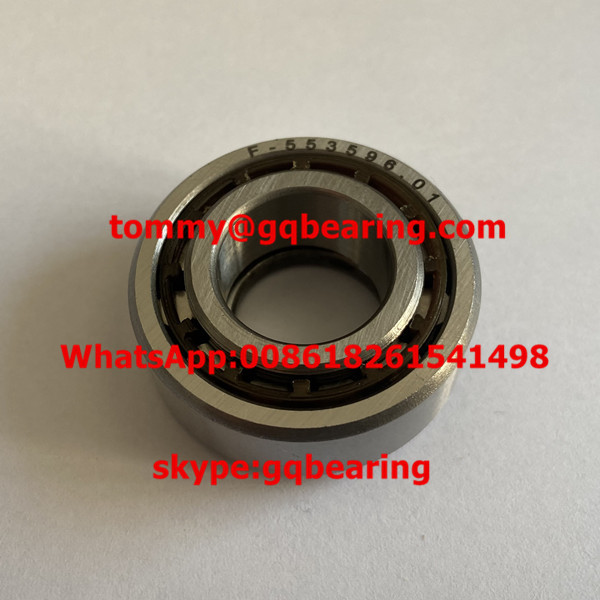

Gcr15 steel Material F-553596.01.NUP Single Row Cylindrical Roller Bearing
Bearing name :cylindrical roller bearing
Model : F-553596.01
Size : 17*35*14 mm
Weight : 0.1 KG
Material : GCR-15
Precision : P4
Quality : ISO9001:2008 approved
OEM service: Offer
Types of cylindrical roller bearing:
. Single row cylindrical roller bearing: NU, NJ, NUP, NUB series
. Double row cylindrical roller bearings:NNU series
. Four row cylindrical roller bearing:FC series
. Single row full complement cylindrical roller bearing:SL18 series, SL 19 series
. Double row full complement cylindrical roller bearing
. SL01 series, SL02 series, SL18 series.
| Bearing type | Cage symbol | Specification | Available size |
| NN | MB | Roller guided machined brass cage |
NN3005,NN3026-NN3040 NN3920-NN3956,NN4920-NN4940 |
| TB | Roller guided PPS resin cage | NN3006-NN3024 | |
| NNU | MB | Roller guided machined brass cage | NNU4920-NNU4940 |
| N | MR | Roller guided machined brass cage | N1006-N1028 |
| TP | Outer ring guided PEEK resin cage | N1009-N1017 |
Import NSK precision spindle Cylindrical roller bearing NN3026MBKRCC1P5 design draft :
Bearing number : F-553596.01
Size (mm) : 17x35x14
Brand : NSK
Bore Diameter (mm) : 17
Outer Diameter (mm) :35
Width (mm) :14
Bearing dimensions and specification in brand catalogue :
d - 17 mm
D - 35 mm
B - 14 mm
C - 12 mm
Weight - 0.1 Kg
|
Dimension (mm) |
Weight (kg) |
Rated load ( KN) |
Limiting speed (r/min) |
Type | |||||||
| d | D | B | r min | F | E | Cr | Cor | Grease | oil | ||
| 100 | 140 | 40 | 1.1 | 113 | 137 | 1.88 | 125 | 244 | 4300 | 5100 | NNU4920 |
| 150 | 37 | 1.5 | -- | 146 | 245 | 4000 | 4800 | NN3020 | |||
| 105 | 145 | 40 | 1.1 | 118 | 146 | 1.96 | 132 | 270 | 4100 | 4800 | NNU4921 |
| 160 | 41 | 2 | -- | 2.96 | 192 | 310 | 3800 | 4100 | NN3021 | ||
| 110 | 150 | 40 | 1.1 | 123 | 155 | 2.04 | 132 | 258 | 3900 | 4600 | NNU4922 |
| 170 | 45 | 2 | -- | 3.76 | 226 | 365 | 3600 | 4300 | NN3022 | ||
| 120 | 165 | 45 | 1.1 | 134.5 | 165 | 2.76 | 170 | 328 | 3600 | 4200 | NNU4924 |
| 200 | 80 | 1.112 | 141 | 11 | -- | -- | -- | -- | NNU4124 | ||
| 180 | 46 | 2 | -- | 4.1 | 232 | 390 | 3300 | 3900 | NN3024 | ||
| 130 | 180 | 50 | 1.5 | 146 | 182 | 3.79 | 187 | 368 | 3300 | 3900 | NNU4926 |
| 200 | 52 | 2 | -- | 6.04 | 284 | 475 | 3100 | 3600 |
NN3026 |
||
If you want to buy F-553596.01.NUP bearing,just contact us.
