NTN 608LLU Single Row Deep Groove Ball Bearing 608LLU/2AS 8x22x7mm
1.Type: deep groove ball type
2.Specification:
| Part number | 608LLU/2AS |
| Bore | 8 mm |
| Outer diameter | 22 mm |
| Thickness | 7 mm |
| Basis dynamic loading rate | 3450 N |
| Basis static loading rate | 1370 N |
| Row number | single row |
| Weight | 0.03 kg |
| Stock | 220 piece |

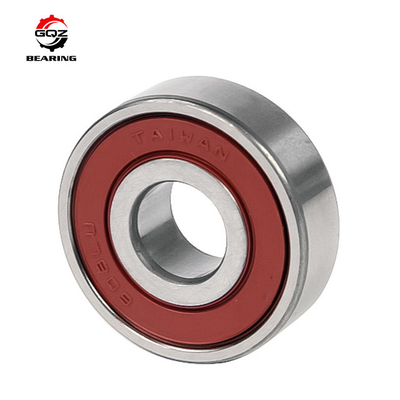

3.Bearing photos:
4.We currently have 220.pcs of 608LLU Sealed Type Deep Groove Ball Bearing 608LLU/2AS In Stock.If you are in need of NTN 608LLU/2AS Ball Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of NTN 608LLU Bearing, please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Details.
5.We also supply following bearings:
|
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| LR50/5-2RSR | 5 | 17 | 7 |
| LR50/6-2RSR | 6 | 19 | 9 |
| LR50/7-2RSR | 7 | 22 | 10 |
| LR50/8-2RSR | 8 | 24 | 11 |
| LR5000-2RS | 10 | 28 | 12 |
| LR5001-2RS | 12 | 30 | 12 |
| LR5002-2RS | 15 | 35 | 13 |
| LR5003-2RS | 17 | 40 | 14 |
| LR5004-2RS | 20 | 47 | 16 |
| LR5005-2RS | 25 | 52 | 16 |
| LR5006-2RS | 30 | 62 | 19 |
| LR5007-2RS | 35 | 68 | 20 |
| LR604-2RSR | 4 | 13 | 4 |
| LR605-2RSR | 5 | 16 | 5 |
| LR606-2RSR | 6 | 19 | 6 |
| LR607-2RSR | 7 | 22 | 6 |
| LR608-2RSR | 8 | 24 | 7 |
| LR6000-2RSR | 10 | 28 | 8 |
| LR6001-2RSR | 12 | 30 | 8 |
|
Bearing Model |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| LFR50/5-4-2Z | LFR50/5-KDD-4 | 5 | 16 | 8 |
| LFR50/5-6-2Z | LFR50/5-KDD | 5 | 17 | 8 |
| LFR50/8-6-2Z | LFR50/8-KDD | 8 | 24 | 11 |
| LFR5201-10-2Z | LFR5201-KDD | 12 | 35 | 15,9 |
| LFR5301-10-2Z | LFR5301-KDD | 12 | 42 | 19 |
| LFR5201-12-2Z | LFR5201-12-KDD | 12 | 35 | 15,9 |
| LFR5302-10-2Z | LFR5302-KDD | 15 | 47 | 19 |
| LFR5204-16-2Z | LFR5204-16-KDD | 20 | 52 | 22,6 |
| LFR5206-20-2Z | LFR5206-20-KDD | 25 | 72 | 25,8 |
| LFR5206-25-2Z | LFR5206-25-KDD | 25 | 72 | 25,8 |
| LFR5207-30-2Z | LFR5207-30-KDD | 30 | 80 | 29 |
| LFR5208-40-2Z | LFR5208-40-KDD | 40 | 98 | 38 |
| LFR5308-50-2Z | LFR5308-50-KDD | 40 | 110 | 46 |
