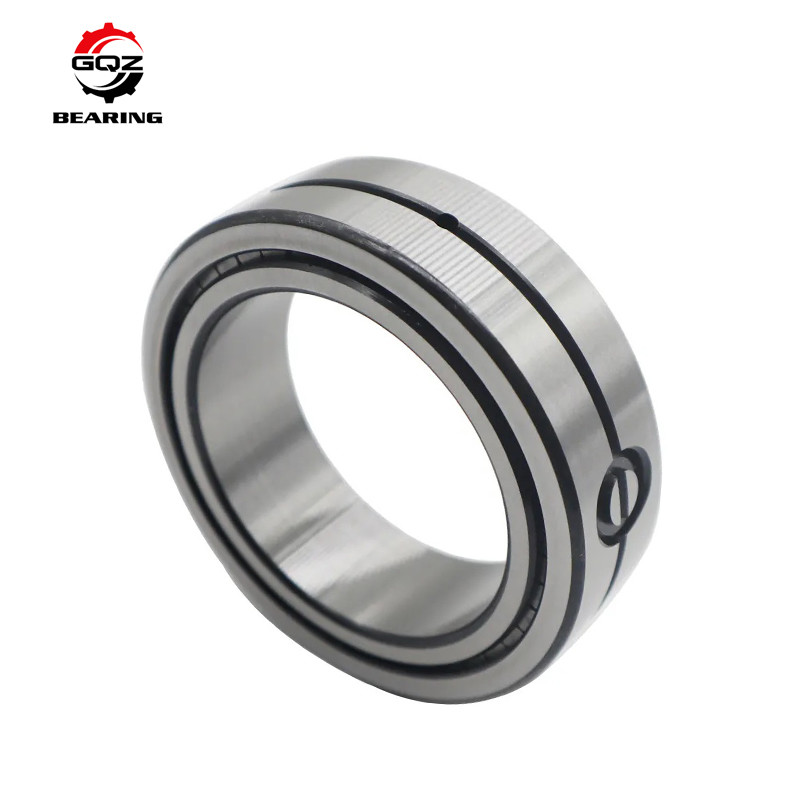

High precision cylindrical roller bearing SL11930 full loaded cylindrical roller bearing

Name: High precision cylindrical roller bearing SL11930 full loaded cylindrical roller bearing
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: SL11930
Price: 1,578.00 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	SL11930
MOQ:	1.PCS
Price:	Negotiable
Delivery Time:	Within 3 days
Payment Terms:	T/T, , Paypal,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Outside Diameter:

8.268 Inch | 210 Millimeter

Bore:

5.906 Inch | 150 Millimeter

Width:

3.465 Inch | 88 Millimeter

Material:

Bearing Steel Gcr15

Weight / LBS:

25.677

Clearance:

C3 C4 C5

Packaging Details:

Plastic Box + Carton Box

Supply Ability:

1000.pcs / Month

Highlight:

full loaded cylindrical roller bearing

SL11930 cylindrical roller bearing

High precision cylindrical roller bearing

Product Description

High precision cylindrical roller bearing SL11930 full loaded cylindrical roller bearing

Full complement cylindrical roller bearings are designed to withstand heavy loads. Under the same width, this kind of bearing has a very high load carrying capacity compared with the traditional caged bearing, the radial cross section is small, it can save space, but the speed is relatively low. In order to make the bearing work normally, in the case of continuous operation, the bearing must bear a certain minimum load, that is, C/P<25. Otherwise, wear will increase due to insufficient lubriion and high-speed operation. All multi-row cylindrical roller bearings have a lubriion groove and a lubriion hole on the outer ring.

d	D	B	weight KG	new bearing model	Old bearing model
20	42	30	0.2	SL04 5004 PP	NNF 5004 ADB-2LSV
25	47	30	0.24	SL04 5005 PP	NNF 5005 ADB-2LSV
30	55	34	0.37	SL04 5006 PP	NNF 5006 ADB-2LSV
35	62	36	0.48	SL04 5007 PP	NNF 5007 ADB-2LSV
40	68	38	0.56	SL04 5008 PP	NNF 5008 ADB-2LSV
45	75	40	0.7	SL04 5009 PP	NNF 5009 ADB-2LSV
50	80	40	0.76	SL04 5010 PP	NNF 5010 ADB-2LSV
55	90	46	1.2	SL04 5011 PP	NNF 5011 ADB-2LSV
60	95	46	1.25	SL04 5012 PP	NNF 5012 ADB-2LSV
65	100	46	1.35	SL04 5013 PP	NNF 5013 ADB-2LSV
70	110	54	1.85	SL04 5014 PP	NNF 5014 ADB-2LSV
75	115	54	1.95	SL04 5015 PP	NNF 5015 ADB-2LSV
80	125	60	2.7	SL04 5016 PP	NNF 5016 ADA-2LSV
85	130	60	2.85	SL04 5017 PP	NNF 5017 ADA-2LSV
90	140	67	3.7	SL04 5018 PP	NNF 5018 ADA-2LSV
95	145	67	3.9	SL04 5019 PP	NNF 5019 ADA-2LSV
100	150	67	3.95	SL04 5020 PP	NNF 5020 ADA-2LSV
110	170	80	6.45	SL04 5022 PP	NNF 5022 ADA-2LSV
120	180	80	6.9	SL04 5024 PP	NNF 5024 ADA-2LSV
130	190	80	7.5	SL04 130 PP	319426 DA-2LS
130	200	95	10.5	SL04 5026 PP	NNF 5026 ADA-2LSV
140	200	80	8	SL04 140 PP	319428 DA-2LS
140	210	95	11	SL04 5028 PP	NNF 5028 ADA-2LSV
150	225	100	13.5	SL04 5030 PP	NNF 5030 ADA-2LSV
160	220	80	8.8	SL04 160 PP	319432 DA-2LS
160	240	109	16.5	SL04 5032 PP	NNF 5032 ADA-2LSV
170	230	80	9.3	SL04 170 PP	319434 DA-2LS
170	260	122	22.5	SL04 5034 PP	NNF 5034 ADA-2LSV
180	240	80	9.8	SL04 180 PP	319436 DA-2LS
180	280	136	30	SL04 5036 PP	NNF 5036 ADA-2LSV
190	260	80	12.5	SL04 190 PP	319438 DA-2LS
190	290	136	31.5	SL04 5038 PP	NNF 5038 ADA-2LSV
200	270	80	13	SL04 200 PP	319440 DA-2LS
200	310	150	42	SL04 5040 PP	NNF 5040 ADA-2LSV
220	340	160	53.5	SL04 5044 PP	NNF 5044 ADA-2LSV
240	360	160	57.5	SL04 5048 PP	NNF 5048 ADA-2LSV
260	340	95	22.5	SL04 260 PP	-
300	380	95	25.5	SL04 300 PP	-

Boundary dimensions			Mass	Bearing NO.	Interchangable NO.
(mm)			(kg)	Bearing NO.
d	D	B		LSBC
20	42	30	0.2	SL18 5004	NNCF 5004 CV
25	47	30	0.23	SL18 5005	NNCF 5005 CV
30	55	34	0.35	SL18 5006	NNCF 5006 CV
35	62	36	0.46	SL18 5007	NNCF 5007 CV
40	68	38	0.56	SL18 5008	NNCF 5008 CV
45	75	40	0.71	SL18 5009	NNCF 5009 CV
50	80	40	0.76	SL18 5010	NNCF 5010 CV
55	90	46	1.15	SL18 5011	NNCF 5011 CV
60	85	25	0.48	SL18 4912	NNCF 4912 CV
60	85	25	0.49	SL01 4912	NNC 4912 CV
60	85	25	0.47	SL02 4912	NNCL 4912 CV
60	95	46	1.25	SL18 5012	NNCF 5012 CV
65	100	46	1.3	SL18 5013	NNCF 5013 CV
70	100	30	0.77	SL18 4914	NNCF 4914 CV
70	100	30	0.78	SL01 4914	NNC 4914 CV
70	100	30	0.75	SL02 4914	NNCL 4914 CV
70	110	54	1.85	SL18 5014	NNCF 5014 CV
75	115	54	1.95	SL18 5015	NNCF 5015 CV
80	110	30	0.87	SL18 4916	NNCF 4916 CV
80	110	30	0.88	SL01 4916	NNC 4916 CV
80	110	30	0.85	SL02 4916	NNCL 4916 CV
80	125	60	2.6	SL18 5016	NNCF 5016 CV
85	130	60	2.7	SL18 5017	NNCF 5017 CV
90	125	35	1.35	SL18 4918	NNCF 4918 CV
