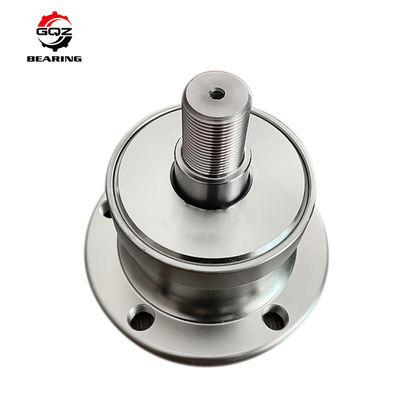

Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc

MOQ: 5pcs
Price: negotiable
Standard Packaging: Plastic Bag+cox+carton
Delivery Period: 5-8 working days
Payment Method: D/A,D/P,T/T
Supply Capacity: 10000/month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GQZ or Other famous brand
Certification
ISO9001,ROHS
Model Number
BAA-0005
Bore Type:
Cylindrical
Basic Dynamic Load Rating:
47.5 KN
Basic Static Load Rating:
37.5 KN
Weight:
2.2KG
Shaft Diameter:
28 Mm
Material, Bearing:
Bearing Steel
Application:
For Dic Harrows
Highlight:

Agricultural Wheel Hub Bearing

,

Wheel Hub Bearing

,

Harrow Disc Wheel Hub Bearing

Product Description
Agricultural Bearing BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc China Quality

Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability
Products Description
Applicable Industries For Dic harrows
Place of Origin China
Type BALL
Model Number BAA-0005
Brand Name GQZ or OEM
Weight 2.2KG
Material Chrome Steel
Outside diameter 117mm
Bore size 28mm
Feature Long Life
Certificate ISO9001:2008
Vibration Z1V1 Z2V2 Z3V3
Precision P0,P4,P6
Service OEM Service
Stock Rich
Package Original Packing
Detailed Images

Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 0 Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 1

Recommend Products
Cross reference No.Holes Dimension(mm) Basic load rating Type Disc diameter
D d J L1 L Gf Gs Cr(KN) Cor(KN)
BAA-0003A 4 117 28 98 60 M12*1.25 47.5 37.5 Type C From 500 to 610mm
BAA-0004 4 117 28 98 60 105 M12*1.25 M24*2.0 47.5 37.5 Type C From 500 to 610mm
BAA-0005 4 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm
BAA-0006 6 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm
AHU34120B-01 6 120 34 100 52 71.45 M10*1.5 M20*2.5 46.1 50.9 Type C From 500 to 610mm
AHU28140A-01 5 140 28 108 89 95 M12*1.25 M22*1.5 46.1 50.9 Type A From 500 to 700mm
BAA-0012 5 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm
BAA-0013 6 117 30 98 60 105 M12*1.25 M24*2.0 47.5 37.5 Type C From 500 to 610mm
BAA-0020 4 117 28 98 60 102 M12*1.25 7/8-14UNF 47.5 37.5 Type C From 500 to 610mm
AHU30140A-01 5 140 35 112 89 98.45 M12*1.5 M24*2.0 46.1 50.9 Type A From 500 to 700mm
Packaging & Shipping

Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 2

Company Introduction

Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 3 Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 4 Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 5 Agricultural BAA-0005 Wheel Hub Bearing BAA0005 For Harrow Disc 6

FAQ

How should maintenance routines be structured for agricultural wheel hub bearings?

Effective maintenance is key to maximizing lifespan and performance.

Inspection Schedules: Establish routine inspection schedules to detect potential issues early.

Re-lubrication Intervals: Determine appropriate intervals for re-lubrication based on usage and operating conditions.

Solution: To maintain agricultural wheel hub bearings effectively:

Develop a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of agricultural wheel hub bearings.

Maintain detailed records of maintenance activities to track condition and performance over time.

Are there specific considerations for selecting agricultural wheel hub bearings for heavy-duty applications?

Heavy-duty applications require robust solutions for substantial loads and stresses.

Load Capacity: Ensuring selected bearings have adequate load capacity is critical.

Durability: Materials and design features that enhance durability under heavy use are necessary.

Solution: When choosing agricultural wheel hub bearings for heavy-duty applications:

Opt for agricultural wheel hub bearings designed with higher load capacities and made from durable materials.

Consult manufacturers for products tailored to meet specific demands of your application.

Tags:

Disc Harrow Agricultural Bearing,

47.5 kN Agricultural Bearing,

BAA-0012 Agricultural Bearing
