BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery
  • name
  • name

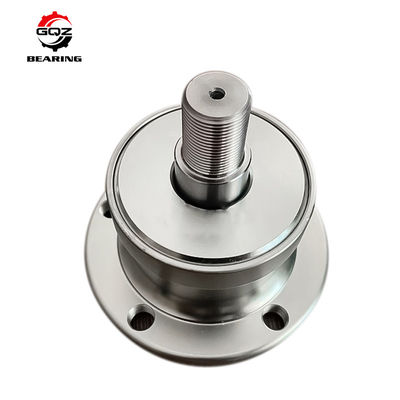

BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery

MOQ: 5pcs
Standard Packaging: Plastic Bag+cox+carton
Supply Capacity: 10000/month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GQZ or Other famous brand
Certification
ISO9001,ROHS
Model Number
BAA-0005A(R)
Bore Type:
Ball
Basic Dynamic Load Rating:
47.5kN
Basic Static Load Rating:
37.5kN
Weight:
2.28KG
Material, Bearing:
Bearing Steel
Application:
For Dic Harrows
Highlight:

Agricultural Machinery Hub Bearing

,

Vaderstad Disc Harrow Hub Bearing

Product Description

New Arrival Agricultural Hub Bearing BAA-0005A(R) Agri Hub Bearing for Vaderstad Disc Harrow Agricultural Machinery

Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability
Products Description
Applicable Industries
For Dic harrows
Place of Origin
China
Type
BALL
Model Number
BAA-0005A(R)
Brand Name
GQZ or OEM
Weight
2.28KG
Material
Chrome Steel
Outside diameter
135mm
Bore size
30mm
Feature
Long Life
Certificate
ISO9001:2008
Vibration
Z1V1 Z2V2 Z3V3
Precision
P0,P4,P6
Service
OEM Service
Stock
Rich



Package
Original Packing



Detailed Images

BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 0BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 1

Recommend Products
Cross reference No.Holes Dimension(mm) Basic load rating Type Application Disc diameter
D d J L1 L E Gf Gs Cr(KN) Cor(KN)
SKF BAA-0003A 4 117 28 98 60 　 　 M12*1.25 　 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0003 4 117 28 98 60 　 　 M12*1.25 　 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0004 4 117 28 98 60 105 15 M12*1.25 M24*2.0 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0005 4 117 28 98 60 102 15 M12*1.25 M22*1.5 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0006 6 117 28 98 60 102 15 M12*1.25 M22*1.5 47.5 37.5 Type C Dic harrows From 500 to 610mm
NSK AHU34120B-01 6 120 34 100 52 71.45 　 M10*1.5 M20*2.5 46.1 50.9 Type C Dic harrows From 500 to 610mm
NSK AHU28140A-01 5 140 28 108 89 95 　 M12*1.25 M22*1.5 46.1 50.9 Type A Dic harrows From 500 to 700mm
SKF BAA-0012 5 117 28 98 60 102 15 M12*1.25 M22*1.5 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0013 6 117 30 98 60 105 15 M12*1.25 M24*2.0 47.5 37.5 Type C Dic harrows From 500 to 610mm
SKF BAA-0020 4 117 28 98 60 102 17 M12*1.25 7/8-14UNF 47.5 37.5 Type C Dic harrows From 500 to 610mm
NSK AHU30140A-01 5 140 35 112 89 98.45 　 M12*1.5 M24*2.0 46.1 50.9 Type A Dic harrows From 500 to 700mm
SKF BAA-0026 4 168 35 133 67 82 　 13.5 3/4-16UNF 52.7 45 Type B Dic harrows From 700 to 750mm
SKF BAA-0037 4 168 35 133 67 82 　 M14*1.5 M20*1.5 52.7 45 Type B Dic harrows From 700 to 750mm
SKF BAA-0025 4 120 30 100 40 　 　 M8 　 44.9 31 Type B Fertilizing 　
PL-185L 5 185 35 160 62 113 　 12 M30*1.5 45.3 40.4 Type A Lemken rubin 9 620mm
PL-185R 5 185 35 160 62 113 　 12 M30*1.5 45.3 40.4 Type A Lemken rubin 9 　
PL-140 5 140 30 104 35 35 　 M12*1.75 　 30 21.2 Type A Vaderstad Disc Harrow 　
IL60-120/4H-M20 4 160 40 120 82 96 　 11 M20*1.75 66.35 56.5 Type B Disc harrows Over 710mm
SKF BAA-0026R 4 168 35 133 67 82 　 13.5 3/4-16UNF 72 107.1 Type B Disc harrows From 700 to 750mm
SKF
BAA-0029R		 6 168 35 133 67 82 　 13.5 3/4-16UNF 72 107.1 Type B Disc harrows From 700 to 750mm
IL50-120/4T-M24*2 6 145 32 120 63 129.2 　 M12*1.75 M24*2.0 46.41 60.19 Type C Dic harrows From 560 to 710mm
IL20-75/6T-B20 6 94 20 75 24 37.7 　 6.5 　 22 15.2 Type C Seeding machines 　
IL20-75/6H-B17 6 94 17 75 24 37.7 　 6.5 　 22 15.2 Type C Seeding machines 　
ACB0614-A 5 140 32 112 60 106 　 M12*1.5 M24*2.0 47.57 37.82 Type C Dic harrows 　
IL50-98/4T-M22*1.5 4 117 32 98 60 102 　 M12*1.25 M22*1.5 60.19 46.41 Type C Dic harrows From 560 to 710mm
IL40-98/4T-M22 4 117 30 98 60 102 　 M12*1.25 M22*1.5 42.9 36.3 Type C Dic harrows From 500 to 610mm
IL40-100/6T-M20*1.5 6 117 　 100 55 69 　 M10*1.5 M20*1.5 42.9 36.3 Type B Kuhn disc harrows From 500 to 610mm
IL40-104/5T-M22*1.5 5 145 32 104 55 101 　 M12*1.25 M22*1.5 42.76 36.3 Type C Dic harrows From 500 to 610mm
IL40-112/5T-M24*2 5 145 　 112 55 101 　 M12*1.5 M24*2.0 42.9 36.3 Type C Dic harrows From 500 to 610mm
PRB-45 3 390 45 　 　 55 　 M12 20.5 51 39 　 　 　
Lemken 55510016 6 235 40 195 86 150 　 12.2 M36*2 71.19 66.68 Type A Lemken rubin 12 736mm
Lemken 55510017 6 235 40 195 86 150 　 12.2 M36*2 71.19 66.68 Type A Lemken rubin 12 736mm
IL50-98/5T-M22*1.5 5 117 32 98 60 102 　 M12*1.25 M22*1.5 60.19 46.41 Type C Dic harrows From 560 to 710mm
IL50-98/6T-M22*1.5 6 117 32 98 60 102 　 M12*1.25 M22*1.5 60.19 46.41 Type C Dic harrows From 560 to 710mm
IL50-98/4T-B30-J 4 117 　 98 60 60 　 M12*1.25 　 60.19 46.41 Type C Vaderstad Disc Harrow From 560 to 710mm
IL50-98/6T-M24*2 6 117 32 98 60 102 　 M12*1.25 M24*1.5 60.19 46.41 Type C Dic harrows From 560 to 710mm
IL50-100/6T-M24 6 117 30 100 60 97.5 　 M10*1.25 M24*1.5 60 45.8 Type C Lemken disc harrows From 560 to 710mm
IL60-140/5T-M27*2 5 160 　 140 63 117.5 　 M12*1.25 M27*2 66.35 56.5 Type C Disc harrows Over 710mm
BAA-0005A(L) 4 135 30 107 60 105 　 13 M24*2.0 47.5 37.5 Type C Disc harrows From 500 to 610mm
BAA-0005B® 4 135 30 107 60 105 　 13 M24*2.0 47.5 37.5 Type C Disc harrows From 500 to 610mm
IL50-120/6T-44-R635A 6 145 30 120 　 133.2 　 M12*1.75 M27*2.0 60 45.8 Type C Disc harrows Over 710mm
IL50-120/4H-M20 4 145 30 120 60 100 　 11 M20 60.19 46.41 Type C Amazone disc harrows From 560 to 710mm
IL50-105/4H-M24*1.5-RH 4 145 　 105 60 97.5 　 12.3 M24*1.5-RH 60.19 46.41 Type C Lemken heliodor disc harrows 510mm
IL50-105/4H-M24*1.5-LH 4 145 　 105 60 97.5 　 12.3 M24*1.5-LH 60.19 46.41 Type C Lemken heliodor disc harrows 510mm
IL50-122/6H-M24*2-616 6 145 35 122 63 107.7 　 12 M24*2.0 60.19 46.41 Type C Disc harrows From 560 to 710mm
PL-185E 5 185 35 160 67 141 　 12 M30*1.5 52.48 44 Type A Lemken rubin 620mm
IL30-98/4T-B30 4 117 30 98 23.8 23.8 　 M12*1.25 　 29.6 21 Type C Disc harrows From 350 to 450mm
HUB-20MM-X-ASSY-A543 8 100 　 83 38 73 　 8*5/16"-18UNC 5/8"-18UNF 17.3 15.1 Type C Disc harrows Up to 350mm
BAA-0012R 5 117 30 98 63 105 15 M12*1.25 M24*1.5 47.5 37.5 Type C Disc harrows From 500 to 610mm
BAA-0012L 5 117 30 98 63 105 15 M12*1.25 M24*1.5 47.5 37.5 Type C Disc harrows From 500 to 610mm
Horsch Pn60044 3 117 59.8 97 55 130 　 M12*1.75 M16*2 　 　 Type B Dic harrows for horsch 　
Horsch Pn70042 5 127 40 106 80 106 　 M12*1.75 M20 160 110 Type B Dic harrows for horsch 520mm
IL50-120/6T-M24*2-04-R633 6 145 30 120 63 114.2 　 M12*1.75 M24*2 60 45.8 Type C Dic harrows From 560 to 710mm
Horsch Pn60043 3 117 　 97 　 　 　 M12*1.75 　 　 　 Type B Dic harrows for horsch 520mm
PL-7520 5 92 20 75 34 41.8 　 6.7 　 19.42 12.6 Type C Seeding machines 　
IL30-98/4H-B30 4 117 30 98 23.8 23.8 　 10 　 29.6 21 Type C Dic harrows for horsch From 350 to 450mm
IL40-110/4H-M24*1.5 4 145 32 110 74 129 　 13 M24*1.5 42.76 36.3 Type C Pottinger disc harrows From 500 to 610mm
IL40-110/4H-M30*2 4 145 32 110 76 134 　 13 M30*2 42.76 36.3 Type C Dic harrows From 500 to 610mm
PL-185-155-5H-M30*1.5-RH 5 185 30 155 65 129 　 5*12 M30*1.5 47.5 37.5 Type A Lemken rubin 10 620mm
Packaging & Shipping

BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 2

Company Introduction

BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 3BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 4BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 5BAA-0005A(R) Agri Hub Bearing For Vaderstad Disc Harrow Agricultural Machinery 6

FAQ



How should maintenance routines be structured for agricultural wheel hub bearings?

Effective maintenance is key to maximizing lifespan and performance.

Inspection Schedules: Establish routine inspection schedules to detect potential issues early.

Re-lubrication Intervals: Determine appropriate intervals for re-lubrication based on usage and operating conditions.

Solution: To maintain agricultural wheel hub bearings effectively:

Develop a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of agricultural wheel hub bearings.

Maintain detailed records of maintenance activities to track condition and performance over time.

Are there specific considerations for selecting agricultural wheel hub bearings for heavy-duty applications?

Heavy-duty applications require robust solutions for substantial loads and stresses.

Load Capacity: Ensuring selected bearings have adequate load capacity is critical.

Durability: Materials and design features that enhance durability under heavy use are necessary.

Solution: When choosing agricultural wheel hub bearings for heavy-duty applications:

Opt for agricultural wheel hub bearings designed with higher load capacities and made from durable materials.

Consult manufacturers for products tailored to meet specific demands of your application.
