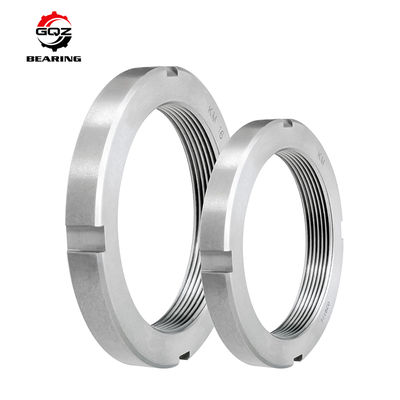

KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm
  • name
  • name
  • name
  • name

KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm

MOQ: 5pcs
Standard Packaging: Plastic Bag+cox+carton
Supply Capacity: 10000/month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GQZ or Other famous brand
Certification
ISO9001,ROHS
Model Number
KM16 KM-16
Product Type:
Expansion Coupling Sleeve
Application:
Automotive.tractor.construction Machinery.rolling Mill
Bore Diameter:
80mm
Outside Diameter:
105mm
Width:
15mm
Thread Designation:
M80x2
Product Net Weight:
0.41kg
Material, Bearing:
Bearing Steel
Highlight:

Tight Set Adapter Sleeve Lock Nut

,

KM-16 Adapter Sleeve Lock Nut

,

80mm bearing accessories

Product Description

KM-16 Adapter Sleeve Lock Nut,tight Set Lock Nut KM16
KM and KML lock nuts are used to locate bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. KM and KML lock nuts can be reused, provided they are not damaged.

Product Description

Applicable Industries
Automotive.tractor.construction Machinery.rolling Mill
Place of Origin
China
Type
Lock washer
Model Number
KM16,KM-16
Brand Name
GQZ or OEM
Seals Type
Open
Material
Chrome Steel
Outside diameter
80mm
Bore size
105mm
Feature
Long Life
Certificate
ISO9001:2008
Vibration
Z1V1 Z2V2 Z3V3
Precision
P0,P5,P6
Service
OEM Service
Stock
Rich





Lock Nut Sleeve Main Advantages

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new lock washer
  • Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40)

KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 0KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 1
KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 2
Unit No. Thread Dimentions(mm) Lock washer Weight
  G d d1 d2 B b h   W.t(kg)
KM06 M30*1.5 30 38 45 7 5 2 MB06 0.038
KM07 M35*1.5 35 44 50 8 5 2 MB07 0.058
KM08 M40*1.5 40 50 58 9 6 2.5 MB08 0.078
KM09 M45*1.5 45 56 65 10 6 2.5 MB09 0.11
KM10 M50*1.5 50 61 70 11 6 2.5 MB10 0.14
KM11 M55*2 55 67 75 11 7 3 MB11 0.15
KM12 M60*2 60 73 80 11 7 3 MB12 0.16
KM13 M65*2 65 79 85 12 7 3 MB13 0.19
KM14 M70*2 70 85 92 12 8 3.5 MB14 0.22
KM15 M75*2 75 90 98 13 8 3.5 MB15 0.27
KM16 M80*2 80 95 105 15 8 3.5 MB16 0.36
KM17 M85*2 85 102 110 16 8 3.5 MB17 0.42
KM18 M90*2 90 108 120 16 10 4 MB18 0.51
KM19 M95*2 95 113 125 17 10 4 MB19 0.58
KM20 M100*2 100 120 130 18 10 4 MB20 0.68
KM21 M105*2 105 126 140 18 12 5 MB21 0.81
KM22 M110*2 110 133 145 19 12 5 MB22 0.89
Company Information

KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 3

KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 4KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 5KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 6KM-16 Adapter Sleeve Tight Set Lock Nut KM16 Bore Diameter 80mm 7

FAQ

Can adapter sleeves withstand harsh environmental conditions?

Harsh environments, characterized by moisture, dust, and extreme temperatures, pose significant challenges.

Corrosion Resistance: Exposure to moisture can lead to corrosion, affecting the sleeve's performance.

Solution: For operations in harsh environments, select adapter sleeves made from corrosion-resistant materials or consider protective coatings to enhance the durability of adapter sleeves.



How should maintenance routines be structured for systems utilizing adapter sleeves?

Effective maintenance is crucial for maximizing lifespan and performance.

Inspection Schedules: Establishing routine inspection schedules helps detect potential issues early.

Lubrication Needs: Proper lubrication ensures smooth operation and reduces wear.

Solution: To maintain systems with adapter sleeves effectively:

Implement a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of components around the adapter sleeve.

Keep detailed records of all maintenance activities to track the condition and performance of adapter sleeves over time.
