XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics

Name: XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: XR766051
Price: 224.00 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	XR766051
MOQ:	5pcs
Price:	$219-$229
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T or western Union or PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/ISO14001/GJB9001

Material:

GCr15 Bearing Steel

Product Name:

Crossed Roller Bearing

ID(mm):

457.2

OD(mm):

609.6

Width(mm):

63.5

Precision Rating:

Structure:

Tapered Roller Bearing

Warranty:

12 Months

Packaging Details:

Packed in carton firstly,and then reinforced with wooden case for outer packing

Supply Ability:

3,000pcs per month

Product Description

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics

Product Overview

The XR766051 Cross Tapered Roller Bearing is a heavy-duty, high-precision bearing designed for mobile robotics, CNC systems, and advanced industrial equipment. With dimensions of 457.2mm inner diameter, 609.6mm outer diameter, and 63.5mm width, it follows imperial standards and is ideal for high-load, high-performance applications.

Engineered for demanding environments, this bearing delivers superior rigidity, stable motion control, and excellent load capacity, ensuring reliable performance in robotic mobility systems and precision machinery.

Model: XR766051
Size: 457.2x609.6x63.5mm
Type: Cross Tapered Roller Bearing
Inch series heavy-duty design
Optimized for mobile robotics applications

Key Features

Inch Size Design: Suitable for global equipment and imperial standard systems.
Heavy Duty Structure: Designed for high-load and high-torque applications.
High Rigidity: Cross tapered rollers ensure minimal deformation.
Precision Motion Control: Ideal for mobile robotics and automation systems.
Combined Load Capacity: Supports radial, axial, and moment loads simultaneously.
Long Service Life: Heat-treated bearing steel for durability.

Technical Specifications

Parameter	XR766051
Model	XR766051
Inner Diameter (ID)	457.2 mm
Outer Diameter (OD)	609.6 mm
Width (H)	63.5 mm
Type	Cross Tapered Roller Bearing
Structure	Crossed Tapered Rollers
Material	Bearing Steel
Preload	Custom
Accuracy Class	P5 / P4 optional
Application	Mobile Robotics, CNC Machines, Industrial Equipment

Applications

Mobile Robotics – High load capacity and precision for movement systems.
Industrial Robots – Stable and accurate motion control.
CNC Machine Tools – Reliable machining performance.
Heavy Equipment – Suitable for demanding operational environments.

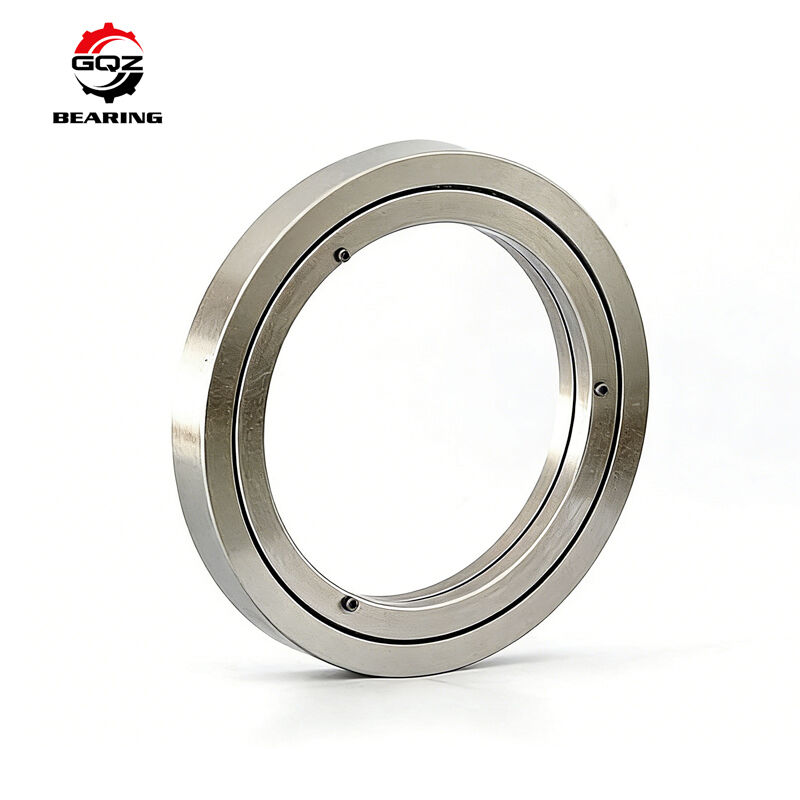

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics 0

Timken	KG	d	D	B	r	Cr (KN)	Co (KN)	Cr (KN)
-	4.9	150	230	30	1	95.2	156	111	279	1100
-	5.15	160	240	30	1.1	96.8	162	118	300	1000
-	6.7	200	280	30	1.5	102	175	120	320	9000
XR496051	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
XR496052	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
-	5.4	240	300	30	1	88	184	114	361	750
-	4.5	250	310	25	1	88	188	114	361	700
-	13	250	350	40	1.3	187	355	228	657	670
JXR637050	12.5	300	400	36.492	1.5	183	355	223	657	560
JXR637050	12.5	300	400	37	1.5	183	355	223	657	560
JXR678054	38	300	480	60	1.5	258	495	35	920	600
JXR652050	19.5	310	425	45	2.5	216	427	281	837	640
JXR678052	32	330.2	457.2	63.5	3.3	264	515	312	954	620
-	27	350	470	50	3.3	308	635	376	1180	560
JXR699050	30	370	495	50	3.3	93.6	-	119	-	600
-	15	400	480	40	1.1	216	497	281	957	430
-	46.5	400	550	60	2.5	429	920	523	1700	400
XR736052	27.5	432.003	571.5	38.1	3.3	83	910	530	1600	400
JXR766051	51	457.2	609.6	63.5	3.3	396	856	514	1680	420
JXR766052	62	424.95	614.924	65	3.3	470	960	600	1720	380
JXR820060	100	580	760	80	3.3	627	1380	765	2560	300
JXR820061	100	580	760	80	6.4	627	1380	765	2560	300
JXR836050	148	600	830	80	6.4	680	1460	820	2870	300
JXR8444050	150	685.8	914.4	79.375	6.4	693	1660	900	3250	260
JXR855053	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR855056	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR882054	185	901.7	1117.6	82.555	3	781	2060	1060	4290	200
JXR882055	185	901.7	1117.6	82.555	3.3	781	2060	1060	4290	200
JXR882058	158	939.8	1117.6	82.55	3	920	2580	1200	5000	200
-	215	950	1170	85	3	968	2690	1310	5600	215
JXR889058	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
JXR889059	358	1028.7	1327.15	95.25	3.3	1060	3100	1420	6020	450
JXR889060	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
-	350	1270	1524	95.25	3.3	1300	3830	1760	2980	95
JXR897051	500	1549.4	1828.8	101.6	3.3	1400	4510	1890	9400	80
-	675	1879.6	2197.1	101.6	5.4	1510	5240	2040	10900	43
-	1130	2463.8	2819.4	114.3	5.4	2330	8740	3150	18200	18200

Why Choose GQZ Bearing?

Precision Manufacturing Expertise
Stable Quality & Performance
Flexible Customization Options
Fast Delivery & Global Supply

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics 1

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics 2

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics 3

XR766051 Cross Tapered Roller Bearing 457.2x609.6x63.5mm for Mobile Robotics 4

FAQ

Q1: Is XR766051 suitable for mobile robotics applications?

A1: Yes, it is designed for high-load and precision motion systems in mobile robotics.

Q2: Is this an inch size bearing?

A2: Yes, it follows imperial dimensions (457.2×609.6×63.5mm).

Q3: Do you offer customization?

A3: Yes, we support customization for preload, accuracy class, and materials.

Enhance your robotic system with XR766051 Cross Tapered Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
