XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing

Brand Name:	GQZ
Model Number:	XSU140944
MOQ:	5pcs
Price:	$1209-$1230
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T or western Union or PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/ISO14001/GJB9001

Material:

GCr15 Bearing Steel

Product Name:

Crossed Roller Bearing

ID(mm):

1024

OD(mm):

1164

Width(mm):

Precision Rating:

Structure:

Tapered Roller Bearing

Warranty:

12 Months

Packaging Details:

Packed in carton firstly,and then reinforced with wooden case for outer packing

Supply Ability:

3,000pcs per month

Highlight:

Large slewing bearing 1024x1164x56mm

Cross roller CNC machine bearing

Robot bearing with high load capacity

Product Description

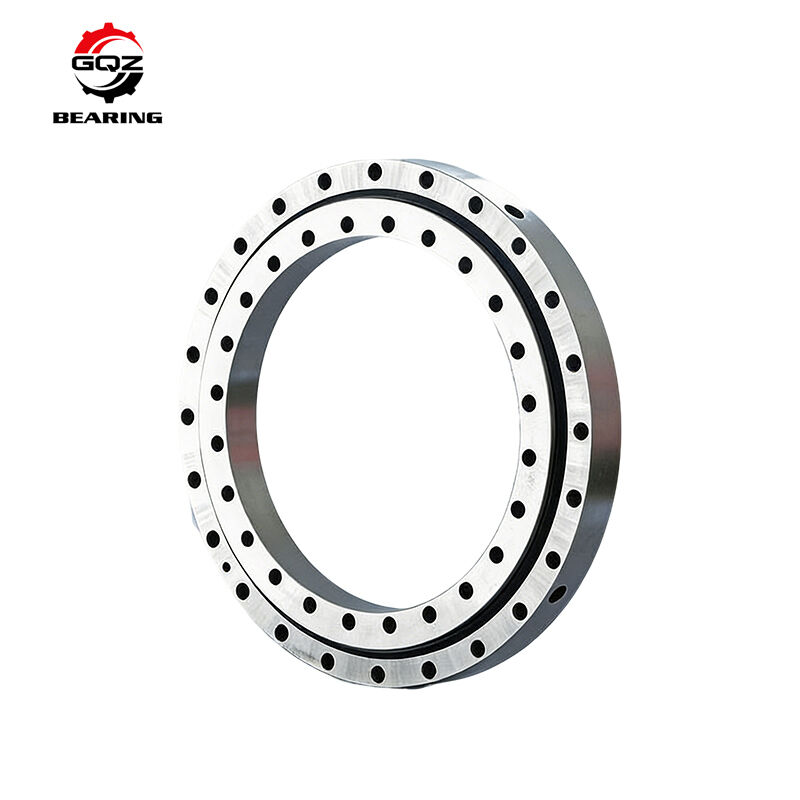

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing

Product Overview

The XSU1410944 Slewing Bearing is a high precision cross cylindrical roller bearing designed for CNC machine parts, rotary tables, industrial automation, and heavy-duty equipment. With dimensions of 1024x1164x56mm, this large slewing bearing delivers smooth rotation, high rigidity, and excellent load capacity.

Featuring a cross roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for CNC machinery, turntable bearings, and precision positioning systems.

This cross roller slewing bearing offers compact design, stable performance, and long service life, widely used in CNC equipment, automation systems, robotics, and industrial machinery applications.

Key Features

Large Slewing Bearing Design: Suitable for heavy-duty and large-scale applications.
Cross Cylindrical Roller Structure: Ensures high precision and smooth rotation.
High Load Capacity: Handles radial, axial, and moment loads simultaneously.
CNC Application Optimized: Ideal for precision machining systems.
Compact & Rigid Construction: Space-saving with excellent stiffness.
Durable Material: Heat-treated bearing steel for long service life.

Technical Specifications

Parameter	Specification
Model	XSU1410944
Inner Diameter (ID)	1024 mm
Outer Diameter (OD)	1164 mm
Width (H)	56 mm
Type	Slewing Bearing
Structure	Crossed Cylindrical Rollers
Material	Bearing Steel
Accuracy Class	P5 / P4 optional
Preload	Custom
Application	CNC Machine Parts, Rotary Tables, Automation Systems

Applications

CNC Machine Parts – High precision machining and positioning.
Rotary Tables – Smooth and accurate rotation.
Industrial Automation – Stable motion control systems.
Robotics – Precision movement in robotic platforms.

Product Series Specifications

INA	Weight (Kg)	Da	di	La	ni/na	Li	Di	da	A	B	C	D	Preload
XSU140414N	28	484	344	460	24	468	415	413	0.04	0.04	0.06	0.06	0.01-0.03
XSU140544N	38	614	474	590	32	598	545	543	0.04	0.04	0.07	0.06	0.01-0.03
XSU140644N	44	714	574	690	36	698	645	643	0.05	0.05	0.08	0.07	0.01-0.04
XSU140744N	52	814	674	790	40	798	745	743	0.05	0.05	0.09	0.08	0.01-0.04
XSU140844N	60	914	774	890	40	898	845	843	0.06	0.06	0.09	0.09	0.01-0.04
XSU140944N	67	1014	874	990	44	998	945	943	0.06	0.06	0.11	0.09	0.01-0.05
XSU141094N	77	1164	1024	1140	48	1148	1095	1093	0.07	0.07	0.11	0.11	0.01-0.05

Why Choose GQZ Bearing?

Slewing Ring & Cross Roller Expertise
High Precision Manufacturing
Stable Performance for CNC Systems
Customization & Global Delivery Support

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing 0

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing 1

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing 2

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing 3

XSU1410944 Large Slewing Bearing 1024x1164x56mm Cross Roller CNC Machine Bearing 4

FAQ

Q1: What type of bearing is XSU1410944?

A1: It is a slewing bearing with crossed cylindrical roller structure.

Q2: Is this bearing suitable for CNC machines?

A2: Yes, it is designed for high-precision CNC and automation systems.

Q3: Do you offer customization?

A3: Yes, we support customization for preload, accuracy class, and materials.

Upgrade your system with XSU1410944 Cross Roller Slewing Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
