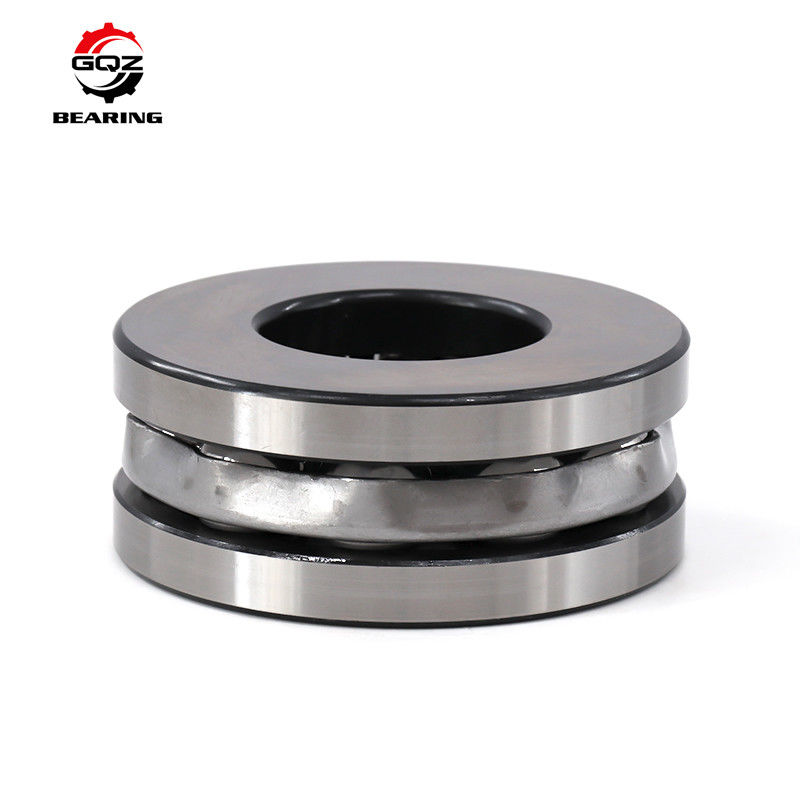

GQZ 51110 Single Direction Thrust Ball Bearing 50×70×14mm For Vertical Shaft And Press Equipment

Name: GQZ 51110 Single Direction Thrust Ball Bearing 50×70×14mm For Vertical Shaft And Press Equipment
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: 51110
Price: 499.10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	51110
MOQ:	100.PCS
Price:	negotiation
Delivery Time:	5 working days
Payment Terms:	T/T,Western Union,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/ISO14001/GJB9001

Structure:

Spherical

Lubriexcavatorion:

Grease And Oil

Appliexcavatorion:

Cars, Trucks And Other Machinery

Taper:

1:12

Load Type:

Radial And Axial Load

Outer Dia:

280mm

Rolling Element:

Steel Balls

Chrome Steel:

51200 Steel

Certifiexcavatorion:

ISO 9001:2000

Free Sample:

Available

Outer Dimension:

47-480mm

Sample:

Avaliable

Transport Package:

Standard Box Packing

Spherical:

Aligning Bearings

Lubrication:

Grease Or Oil

Speedrating:

Up To 10,000 RPM (depending On Size And Lubrication)

Quality:

High-Quality

Weight:

49.3

Other Material:

Stainless Steel

Packing:

Customer Requirement

Item:

Thrust Ball Bearing

Feature:

High Precision|single Direction

Precision Level:

P0|P6|P5|P4|P2

Balls Material:

Chrome Steel

Applications:

Electric Tools

Stock Quantity:

680.pcs

Vibration Grades:

Z1V1 ; Z2V2 ; Z3V3

Thickness:

25mm

Oem Service:

Custom Bearing's Size

Packaging Details:

Standard Carton Box

Supply Ability:

1000.pcs / Month

Product Description

1. Product Overview

51110 is single direction thrust ball bearing, composed of shaft washer, housing washer and ball & cage assembly. It can only sustain unidirectional axial load and cannot bear any radial load. Simple structure, easy installation, suitable for low and medium speed vertical rotating positions. Widely used for vertical pumps, machine tools, jack equipment, gear assemblies and general vertical machinery.

Formal quotation will be sent within 24 hours upon your inquiry.

2. Technical Specifications

Parameter	Value
Model	51110
Dimensions	d50 mm, D70 mm, T14 mm
Net weight	approx 0.16 kg
Dynamic load rating Ca	25.4 kN
Static load rating Coa	60.2 kN
Limiting speed	Grease 3600 rpm, Oil 4400 rpm
Structure	Single direction thrust ball bearing
Material	GCr15 bearing chrome steel, stamped steel cage
Clearance	Standard design
Precision class	P0, P6 optional

Complete dimension drawings and load data available on request.

3. Core Advantages

Professional single-direction axial bearing structure, excellent unidirectional axial load capacity
Compact thickness, saves axial installation space
Separable assembly: shaft washer, housing washer and ball cage can be mounted separately
Stable operation under medium-low speed continuous axial pressure
Simple structure, convenient maintenance and low replacement cost
Customizable options: OEM laser marking, high-temperature surface treatment
Effectively bear axial thrust and prolong service life of vertical mechanical assemblies.

4. Application Scenarios

Vertical water pumps, vertical fans
Machine tool spindle axial positioning components
Hydraulic jack, lifting equipment and press machinery
Light-duty vertical reducers and transmission devices
Textile machinery, office vertical rotating equipment
Mechanical positions mainly subjected to unidirectional axial thrust

5. Why Choose GQZ Bearing

25 years professional bearing manufacturer
Products exported to over 50 countries worldwide
Strict inspection on raw material hardness, surface finish, load capacity and rotational smoothness before delivery
24-hour professional technical support for model selection and installation guidance
Sufficient bulk stock for machinery distributors
We supply stable dimensional accuracy, reliable performance and long-term cooperative support.

6. Quality Control Process

GCr15 raw material chemical composition and hardness inspection
Complete quenching & tempering heat stabilization treatment
Precision superfinishing grinding for washers and steel balls
Cage forming and deburring processing
Full dimension tolerance, static & dynamic load and rotational performance testing

7. Request Quotation

If you need 51110 thrust ball bearings:

Send inquiry to obtain below supports:

Quick formal quotation within 24 hours
Professional installation suggestion for vertical shaft equipment
Custom marking and surface treatment solutions
Competitive factory direct price
Contact our sales team for full technical datasheets and formal offer.

8. FAQ

Q1: Main dimensions of 51110?

50×70×14 mm, single direction thrust ball bearing.

Q2: Load feature of 51110?

Only bears unidirectional axial load, cannot withstand radial load.

Q3: Installation requirement?

Only used for bearing axial thrust; avoid radial force during operation.
