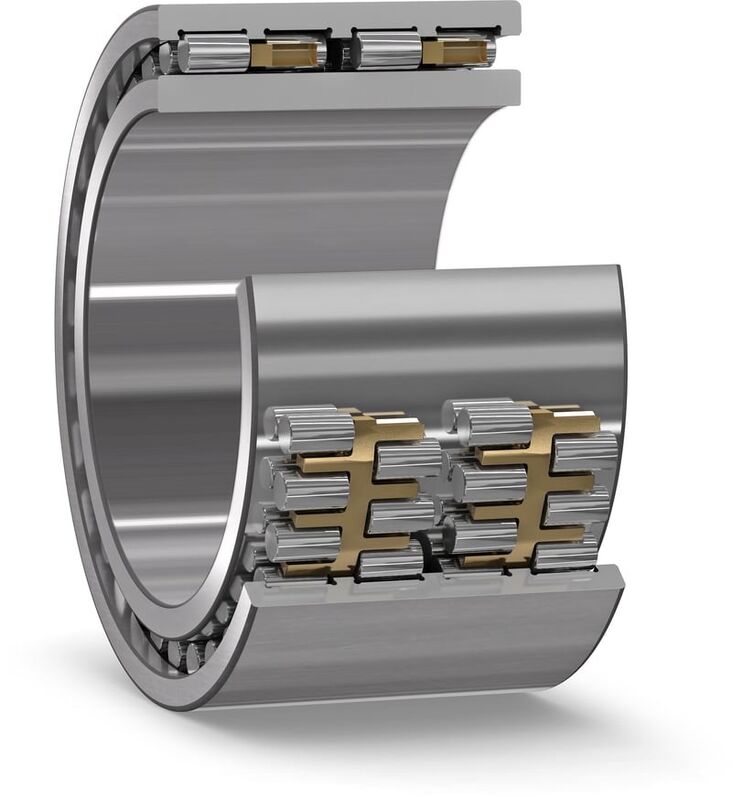

GQZ E5022NRNT Double Row Full Complement Cylindrical Roller Bearing 110×170×80mm For Crane Pulley Assemblies

E5022NRNT is double row full complement cylindrical roller bearing without cage. NR means outer ring with snap ring groove and equipped with retaining snap ring; NT stands for sealed reinforced structure. The full roller arrangement achieves maximum roller quantity, delivering extraordinary radial load capacity. It can withstand heavy radial load and limited bidirectional axial load. Widely adopted for crane pulleys, lifting sheaves, port hoisting machinery and heavy material handling equipment working under continuous heavy impact loads.

Formal quotation will be sent within 24 hours upon your inquiry.

Model: E5022NRNT

Dimensions: d110 mm, D170 mm, B80 mm

Net weight: approx 13.8 kg

Dynamic load rating Cr: 785 kN

Static load rating Cor: 1120 kN

Limiting speed: Grease 1600 rpm, Oil 2100 rpm

Structure: Double row full complement cylindrical roller bearing

Feature: NR outer ring snap ring groove + snap ring; NT reinforced sealing structure

Material: GCr15 bearing chrome steel

Clearance: Standard CN clearance; C3 optional

Precision class: P0 standard, P6 available

Complete dimension drawings and load data available on request.

1. Full complement roller design, maximum number of rollers, ultra-high static & dynamic load capacity
2. NR structure: outer ring snap ring groove with retaining ring for reliable axial positioning
3. NT optimized side sealing structure, reduce foreign matter intrusion for outdoor lifting conditions
4. Mainly bears heavy radial load, also supports limited bidirectional axial load
5. Robust ring for enduring frequent impact and alternating loads on crane pulleys
6. Customizable options: OEM laser marking, special clearance, enhanced anti-corrosion treatment
   Effectively reduce premature fatigue failure and extend service life of hoisting pulley assemblies.

• Mobile crane, tower crane pulley and sheave assemblies
• Port container hoisting machinery and lifting tackle
• Mining heavy transport vehicle wheel and supporting positions
• Steel plant lifting equipment and heavy overhead cranes
• Large material handling machinery and winch systems
• Equipment requiring extreme heavy radial load under low-to-medium speed operation

25 years professional bearing manufacturer

Products exported to over 50 countries worldwide

Strict inspection on raw material hardness, surface finish, load capacity and rotational smoothness before delivery

24-hour professional technical support for installation guidance on lifting equipment

Sufficient bulk stock for construction machinery and hoisting equipment distributors

We supply stable dimensional accuracy, reliable heavy-load performance and long-term cooperative support.

GCr15 raw material chemical composition and hardness inspection

Complete quenching & tempering heat stabilization treatment

Precision superfinishing grinding for bearing rings and rollers

Snap ring groove precision machining and deburring

Full dimension tolerance, static & dynamic load and rotational performance testing

If you need E5022NRNT full complement cylindrical roller bearings:

Send inquiry to obtain below supports:

• Quick formal quotation within 24 hours
• Professional installation suggestion for crane pulley applications
• Custom marking and special clearance solutions
• Competitive factory direct price
  Contact our sales team for full technical datasheets and formal offer.
