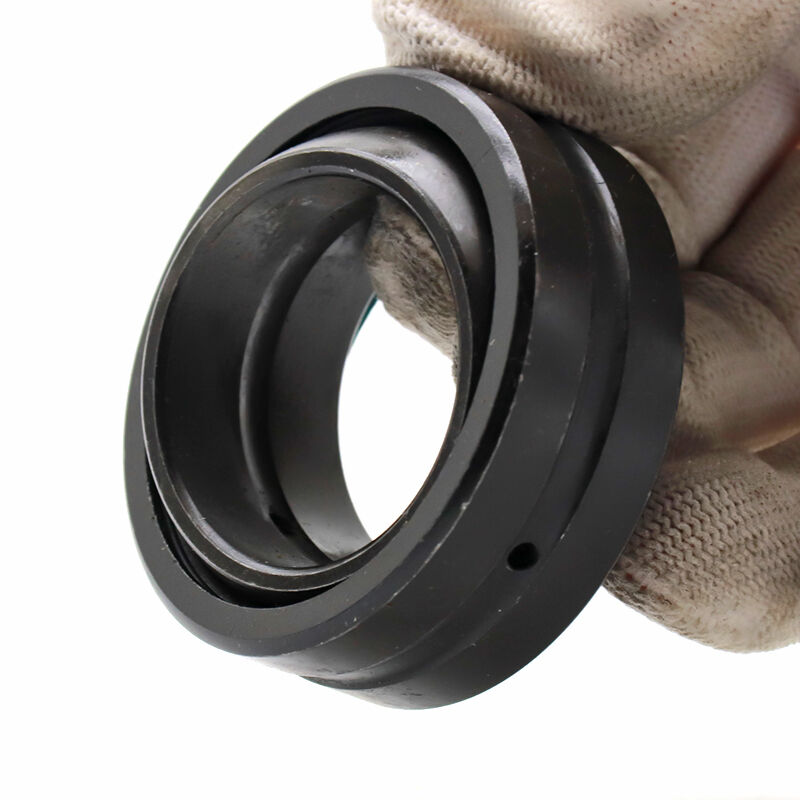

GQZ GE140ES-2RS Radial Spherical Plain Bearing 140×210×90mm With Double Rubber Seals For Hydraulic Equipment

GE140ES-2RS is radial spherical plain bearing. ES represents steel-on-steel sliding contact surface with phosphating treatment; 2RS stands for double-sided rubber sealing structure. It can withstand radial load together with moderate bidirectional axial load. The spherical sliding surface allows large angular deflection, compensating shaft misalignment, swing and oscillating motion. Widely used for hydraulic cylinders, construction machinery hinges, lifting equipment and engineering machinery articulated assemblies.

Formal quotation will be sent within 24 hours upon your inquiry.

Model: GE140ES-2RS

Dimensions: d140 mm, D210 mm, B90 mm

Inner ring width C: 70 mm

Net weight: approx 12.8 kg

Static load rating C0: 1320 kN

Operating mode: Oscillating, tilting and low-speed rotary motion

Structure: Radial spherical plain bearing, steel to steel sliding surface

Seal: 2RS double lip rubber sealing rings

Material: Inner & outer ring: GCr15 bearing steel

Lubrication: Outer ring equipped with lubrication hole; periodic greasing recommended

Complete dimension drawings and load data available on request.

1. ES steel-on-steel friction pair, high static load capacity, good wear resistance under heavy oscillating load
2. 2RS double-sided rubber seal prevents dust, mud and moisture intrusion, adapt to harsh outdoor environments
3. Spherical sliding surface allows angular deflection, effectively absorb assembly alignment errors
4. Suitable for oscillating, tilting motion and low-speed rotation scenarios
5. Outer ring lubrication hole facilitates regular grease replenishment to extend service life
6. Customizable options: OEM laser marking, surface strengthening treatment, special lubrication requirements
   Stable performance for engineering machinery hinge and hydraulic connection assemblies.

• Engineering machinery hydraulic cylinder end joints
• Excavator, loader hinge and connecting rod assemblies
• Lifting platform, crane articulated connection positions
• Agricultural machinery swing and hinge components
• Automobile heavy-duty suspension and steering connections
• Equipment requiring angular compensation under heavy static and oscillating loads

• 25 years professional bearing manufacturer
• Products exported to over 50 countries worldwide
• Strict inspection on raw material hardness, spherical surface finish and dimensional tolerance before delivery
• 24-hour professional technical support for installation and lubrication guidance
• Sufficient bulk stock for construction machinery and industrial distributors
• We supply stable dimensional accuracy, reliable heavy-load performance and long-term cooperative support.

• Bearing steel raw material inspection
• Quenching & tempering heat stabilization treatment
• Precision spherical grinding for inner and outer rings
• Seal groove precision machining and sealing assembly
• Full dimension tolerance and surface roughness testing

If you need GE140ES-2RS spherical plain bearings:

Send inquiry to obtain below supports:

• Quick formal quotation within 24 hours
• Professional installation and lubrication maintenance suggestions
• Custom marking and special surface treatment solutions
• Competitive factory direct price
  Contact our sales team for full technical datasheets and formal offer.
