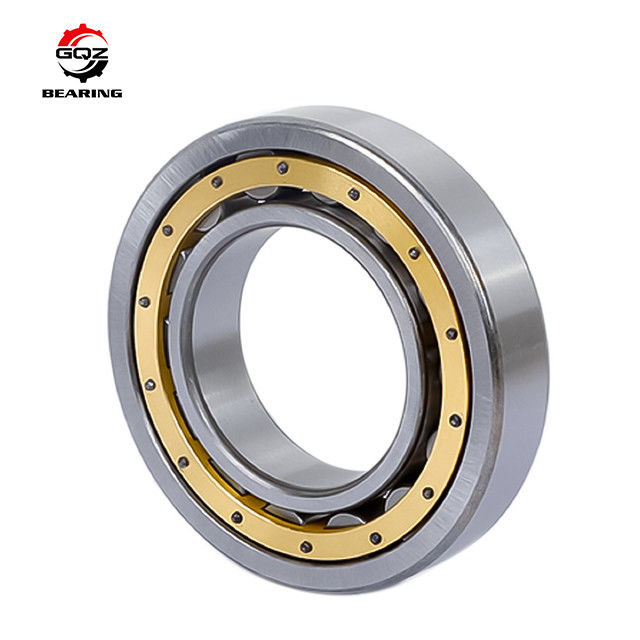

GQZ F-201380.RNU Full Complement Cylindrical Roller Bearing 30.4×52×22mm For Printing Machine And Hydraulic Equipment

F-201380.RNU is special full complement single row cylindrical roller bearing. RNU construction means without inner ring, outer ring with double ribs. The shaft journal is directly used as rolling raceway after quenching and precision grinding. Full roller layout maximizes roller quantity to achieve extraordinary radial load capacity. It allows limited axial floating movement, mainly withstand heavy radial load. Widely used for Heidelberg printing press rollers, hydraulic pump rotor supporting positions and special compact gearbox transmission assemblies.

Formal quotation will be sent within 24 hours upon your inquiry.

Model: F-201380.RNU

Dimensions: Fw30.4 mm, D52 mm, B22 mm

Net weight: approx 0.25 kg

Dynamic load rating Cr: 58.5 kN

Static load rating Cor: 76.2 kN

Limiting speed: Grease 4600 rpm, Oil 5500 rpm

Structure: Full complement cylindrical roller bearing, RNU type (without inner ring)

Material: GCr15 bearing chrome steel

Clearance: Standard CN clearance; C3 clearance available

Precision class: P0, P6, P5 optional

Complete dimension drawings and load data available on request.

1. RNU no-inner-ring structure, save radial installation space, simplify overall equipment structural layout
2. Full complement roller arrangement, maximum number of rollers, outstanding heavy radial load & impact resistance
3. Outer ring double ribs limit roller assembly falling off, allow slight axial floating compensation
4. Requires hardened & ground shaft surface to serve as inner raceway, compact assembly solution
5. Optimized roller contour, low vibration and stable operation under medium continuous load
6. Customizable options: OEM laser marking, special clearance, high-temperature strengthening treatment
7. Stable performance to reduce downtime for printing and hydraulic machinery.

• Heidelberg offset printing press roller supporting assemblies
• Hydraulic pump, hydraulic motor rotor bearing positions
• Compact special industrial gearboxes with narrow installation space
• Textile machinery, paper processing equipment rotating components
• Precision automation machinery requiring high radial rigidity
• Equipment allowing shaft surface to be processed as direct rolling raceway

• 25 years professional bearing manufacturer
• Products exported to over 50 countries worldwide
• Strict inspection on raw material hardness, surface finish, load capacity and rotational smoothness before delivery
• 24-hour professional technical support for installation and surface hardness requirement guidance
• Sufficient bulk stock for printing machinery and industrial distributors
• We supply stable dimensional accuracy, reliable heavy-load performance and long-term cooperative support.

• GCr15 raw material chemical composition and hardness inspection
• Complete quenching & tempering heat stabilization treatment
• Precision superfinishing grinding for outer ring and cylindrical rollers
• Full dimension tolerance, static & dynamic load and rotational performance testing
