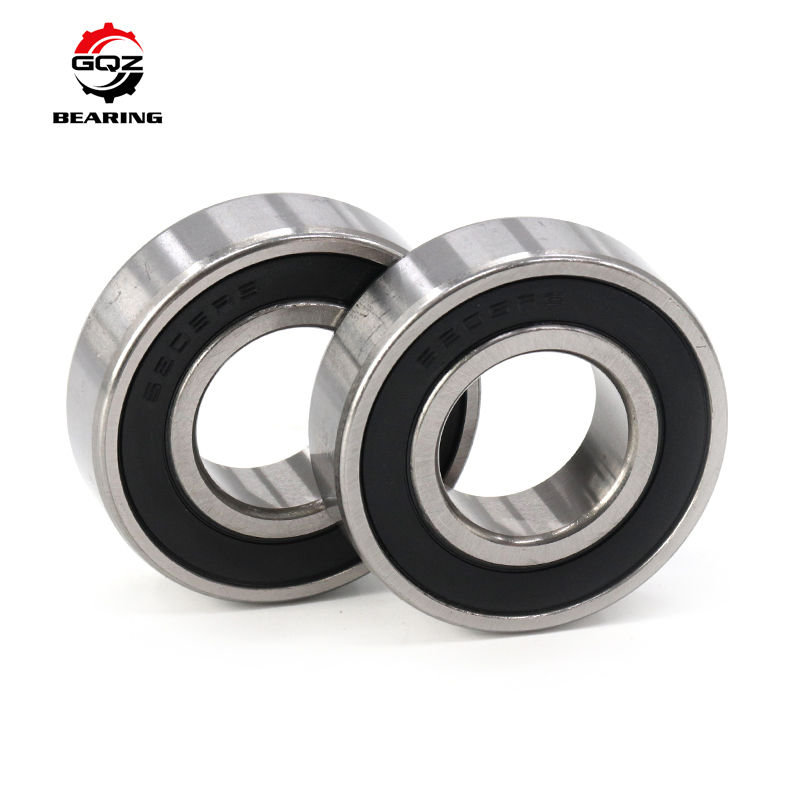

GQZ 6312-2Z/C3 Single Row Deep Groove Ball Bearing 60×130×31mm Double Metal Shielded C3 Clearance

Name: GQZ 6312-2Z/C3 Single Row Deep Groove Ball Bearing 60×130×31mm Double Metal Shielded C3 Clearance
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: 6312-2Z/C3
Price: 499.10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	6312-2Z/C3
MOQ:	100.PCS
Price:	negotiation
Delivery Time:	5 working days
Payment Terms:	T/T,Western Union,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/ISO14001/GJB9001

Sample:

Available

Oem:

Acceptable

Quality Standard:

ISO9001:2008

Inner Diameter:

95 Mm

Productname:

Deep Groove Ball Bearing

Quality:

P0、P2、P4、p5、p6

Character:

Antiskid

Number:

6306 C3

Bearing Type:

Deep Groove Ball Bearing

Noiselevel:

Low Noise Operation

Applicable Industries:

Other, Machinery Repair Shops

Cagematerial:

Pressed Steel / Nylon / Brass

Static Load Rating:

1.05KN

Retainer:

Nylon

Outside Diameter:

100mm-140mm

Dynamicloadrating:

Depends On Size (e.g., 5.6 KN)

Seals Type:

Applicable Models:

Auto Parts

Precision Rating:

Vibration:

Z1V1~Z4V4

Row:

Double Rows

Bearing Ring:

GCr15

Separated:

Unseparated

Hs Code:

8482102000

Stock Qty:

315.pcs

Speed:

4000rpm

Number Of Row:

Single Column

Thickness:

20 Mm

Certifiexcavatorion:

IS09001：2008

Trademark:

BUGAO

Packaging Details:

Standard Carton Box

Supply Ability:

1000.pcs / Month

Product Description

1. Product Overview

6312-2Z/C3 is single row deep groove ball bearing. 2Z stands for double-sided metal dust shields; C3 means enlarged internal clearance to offset thermal expansion. It bears radial load and minor bidirectional axial load, pre-greased for direct assembly. Widely applied in motors, pumps, fans, conveyors and medium-load rotary machinery.

Formal quotation will be sent within 24 hours upon your inquiry.

2. Technical Specifications

Model: 6312-2Z/C3
Dimensions: d60 mm, D130 mm, B31 mm
Net weight: approx 1.67 kg
Structure: Single row deep groove ball bearing
Material: GCr15 bearing chrome steel, stamped steel cage
Clearance: C3 increased clearance
Sealing: 2Z double-side metal shield
Alternative versions: Open / 2RS available

Complete dimension drawings and load data available on request.

3. Core Advantages

C3 clearance accommodates thermal expansion during high-temperature operation
2Z double metal shields prevent dry dust ingress
Supports radial load plus slight bidirectional axial load
Low friction, stable quiet medium-speed rotation
Standard metric size for convenient equipment replacement
Customizable: OEM laser marking, high temperature grease

4. Application Scenarios

Electric motors, cooling fans and blowers
Water pumps and small compressor assemblies
Belt conveyors, textile and packaging machinery
Agricultural equipment and general transmission units
Medium-speed rotary positions under dusty conditions

5. Why Choose GQZ Bearing

25 years professional bearing manufacturer, products exported globally.
Strict raw material inspection and precision grinding process.
24-hour technical support for model selection.
Ample stock for machinery distributors.
Precise dimensions and stable service performance.

6. Quality Control Process

GCr15 raw material quenching & tempering treatment
Precision superfinishing for bearing rings and steel balls
Shield assembly and pre-lubrication
Dimension, clearance and rotational noise testing

7. Request Quotation

If you need 6312-2Z/C3 deep groove ball bearings:

Send inquiry to obtain below supports:

Quick quotation within 24 hours
Professional matching suggestions
Optional open / 2RS solutions
Competitive factory direct price
Contact our sales team for full datasheets and formal offe
8. FAQ

Q1: What do 2Z and C3 represent?

2Z = double-sided metal dust shield; C3 = larger clearance than CN standard.

Q2: Main dimensions of 6312-2Z/C3?

60×130×31 mm deep groove ball bearing.

Q3: When to select C3 clearance?

Suitable for high speed, tight fit and equipment with significant temperature rise.
