GQZ HMK4030 Single Row Open Drawn Cup Needle Roller Bearing 40×50×30mm High Radial Load Capacity

Name: GQZ HMK4030 Single Row Open Drawn Cup Needle Roller Bearing 40×50×30mm High Radial Load Capacity
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: HMK4030
Price: 77.10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	HMK4030
MOQ:	100.PCS
Price:	negotiation
Delivery Time:	5 working days
Payment Terms:	T/T,Western Union,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/ISO14001/GJB9001

Feature:

Long Life

Precision Rating:

P0,P6,P5,

Gross Weight:

12.11kg

Type Name:

694

Precisiongrade:

Standard (P0), ABEC 1, ABEC 3, ABEC 5

Sample:

Acceptable

Origin:

Wuxi

Temperature:

S0, S1, S2, S3

Aligning:

Non-Aligning Bearing

Oem:

Available

Noise Level:

Z1,Z2,Z3,Z4

Customers:

COMA,Sumsung,etc

Seal Type:

ZZ, 2RS, Z, RS, RZ, 2RZ

Accuracy Class:

Width:

Varies By Size And Series

Productname:

Needle Roller Bearing

Noise:

Z1,Z2,Z3

Precision Degree:

P6,P5,P4

Lubrication:

Grease Or Oil

Sealingtype:

Open, Sealed, Shielded

Outerdiameter:

Varies (e.g., 20mm - 120mm)

Greese:

As You Requirement, Such As SRL ,PS2, A

Lead Time:

Within 3 Days

Number Of Row:

Single Line

Thickness:

26 Mm

Certifiexcavatorion:

ISO:9001

Stock Qty:

820.pcs

Sealing Solutions:

Seal On One Side Or Seal On Both Sides

Packaging Details:

Standard Carton Box

Supply Ability:

1000.pcs / Month

Product Description

1. Product Overview

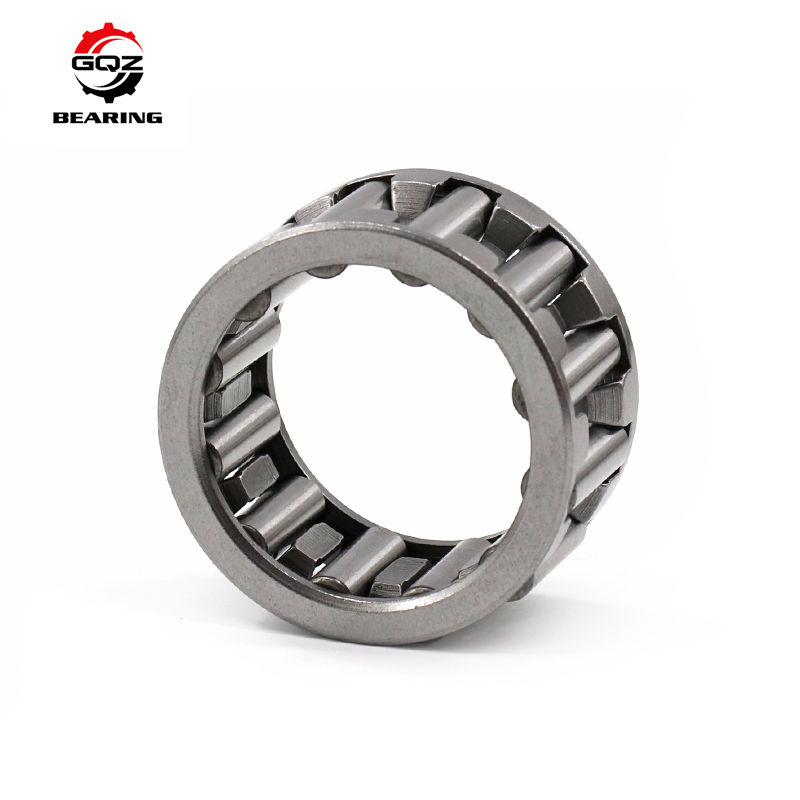

HMK4030 is single row open drawn cup needle roller bearing. Thin stamped outer cup design saves installation space. It delivers superior radial load capacity and allows limited axial displacement. Suitable for compact structure equipment without enough mounting room. Widely used on air compressors, automotive assemblies, textile machinery and medium-speed heavy-duty rotary equipment.

Formal quotation will be sent within 24 hours upon your inquiry.

2. Technical Specifications

Model: HMK4030
Dimensions: Fw40 mm, D50 mm, C30 mm
Net weight: approx 0.112 kg
Structure: Single row open drawn cup needle roller bearing
Material: GCr15 bearing chrome steel, steel cage
Feature: Open ends, no built-in seals; inner ring IR35X40X34 can be matched

Complete dimension drawings and load data available on request.

3. Core Advantages

Ultra-compact cross-section for limited housing installation space
High radial load capacity under continuous medium-speed operation
Open-ended design supports convenient re-lubrication maintenance
Thin drawn outer cup fits tightly into precision machined housing bore
Permits slight axial sliding to release thermal expansion stress
Customizable: OEM laser marking, high temperature special grease

4. Application Scenarios

Screw air compressor rotor auxiliary assemblies
Automotive transmission and engine auxiliary mechanisms
Textile equipment and packaging machinery rotary shafts
General industrial machinery with compact layout requirements
Equipment needing high load bearing within narrow installation space

5. Why Choose GQZ Bearing

25 years professional bearing manufacturer, products exported globally.

Strict raw material inspection and precision grinding process.

24-hour technical support for model selection.

Ample stock for machinery distributors.

Precise dimensions and stable service performance.

6. Quality Control Process

GCr15 raw material quenching & tempering treatment

Precision superfinishing for raceways and needle rollers

Internal clearance and cage matching inspection

Dimension tolerance and rotational performance testing

7. Request Quotation

If you need HMK4030 needle roller bearings: Send inquiry to obtain below supports:

Quick quotation within 24 hours
Inner ring matching suggestion
Competitive factory direct price

Contact our sales team for full datasheets and formal offer.

Wholesale High Speed Deep Groove Ball Bearings Hybrid Ceramic Ball Bearing 625 Bearings 2RS ZZ for Mechanical 1 GQZ HMK4030 Single Row Open Drawn Cup Needle Roller Bearing 40×50×30mm High Radial Load Capacity

8. FAQ

Q1: Main dimensions of HMK4030?: 40×50×30 mm single row open drawn cup needle roller bearing.
Q2: Load characteristic?: Mainly withstand heavy radial load, allows limited axial displacement.
Q3: Difference between HMK4030 and HK4030?: HMK4030 outer diameter 50mm; HK4030 outer diameter 47mm, cannot interchange.
