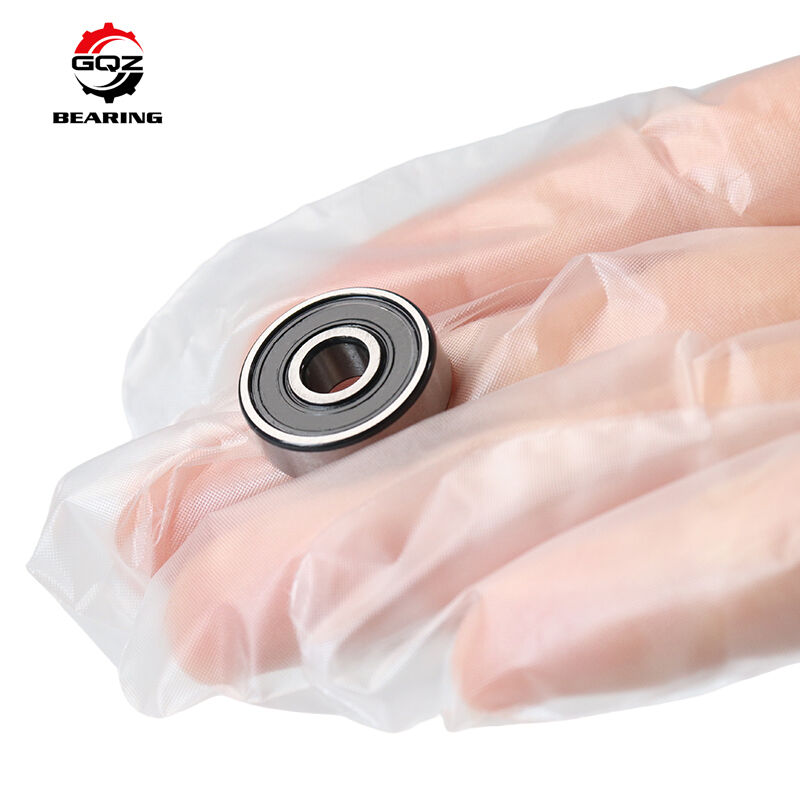

GQZ 6304-2RS Single Row Deep Groove Ball Bearing 20×52×15mm Double Contact Rubber Sealed Ball Bearing

Name: GQZ 6304-2RS Single Row Deep Groove Ball Bearing 20×52×15mm Double Contact Rubber Sealed Ball Bearing
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: 6304-2RS
Price: 499.10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	6304-2RS
MOQ:	100.PCS
Price:	negotiation
Delivery Time:	5 working days
Payment Terms:	T/T,Western Union,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/ISO14001/GJB9001

Retainer:

Special Steel

Bore Size:

11.992 - 12 Mm

Row:

Single Row

Precision Level:

P0,P6,P5,P4,P2

Innerring:

Single Or Double Piece

Oringin:

Wuxi China

Vibration:

V,V1,V2,V3,V4

Bearing Material:

G20Cr2Ni4A Or GCr15SiMn

Feature:

Long Life,High Speed,low Noise,durable

Certifiexcavatorion:

ISO:9001

Lubriexcavatore:

Oil Grease

Warranty:

12 Months

Outer Diameter:

320mm

Sample:

2-3 Working Days

Cage Material:

Metal|Brass

Dimension:

20×47×14mm

Outerdiameter:

Varies (e.g., 30mm - 200mm)

Market:

Global

Inner Diameter:

55mm

Quality:

ABEC-3/ABEC-5

Precision:

P0, P6, P5, P4

Original:

LuoYang China

Dynamic Load:

1970N

Bearingtype:

Rolling Element Bearing

Number:

32TM03 NX C3

Standard:

ISO 9001

Item:

Deep Groove Ball Bearing

Rows Number:

Single

Speedrating:

High Speed Capability

Precisiongrade:

Standard (ABEC 1, 3, 5, Etc.)

Noise Standard:

Zv1 Zv2 Zv3

Structure:

Deep Groove

Salt Spay Test:

168 Hours

Seals Type:

2RS

Size:

35*72*17mm

Precision Rating:

ABEC-5,7,9

Productname:

Deep Groove Ball Bearing

Performance:

High Speed

Seals:

Open

Availability:

Have Stocks

Packaging Details:

Standard Carton Box

Supply Ability:

1000.pcs / Month

Product Description

1. Product Overview

6304-2RS is single row deep groove ball bearing. 2RS stands for double-sided contact rubber seals which effectively block dust, debris and light moisture intrusion. It bears radial load and minor bidirectional axial load, pre-filled with lubricating grease for direct installation. Widely applied on electric motors, water pumps, farm machinery, conveyors and medium-load rotary machinery.

Formal quotation will be sent within 24 hours upon your inquiry.

2. Technical Specifications

Model: 6304-2RS
Dimensions: d20 mm, D52 mm, B15 mm
Net weight: approx 0.155 kg
Structure: Single row deep groove ball bearing
Material: GCr15 bearing chrome steel, stamped steel cage
Sealing: 2RS double contact rubber seal
Alternative versions: Open / 2Z metal shield variants available

Complete dimension drawings and load data available on request.

3. Core Advantages

Double rubber contact seals resist dust and slight water splash in working environment
Pre-greased construction supports maintenance-free continuous medium-speed operation
Handles radial load plus slight bidirectional axial thrust steadily
Low noise and low friction for long-time stable running
Standard metric size for global aftermarket direct replacement
Customizable: OEM laser marking, high-temperature special grease

4. Application Scenarios

Small electric motors, cooling fans and blowers
Water pumps and light-duty compressor assemblies
Agricultural machinery and farm transport equipment
Belt conveyors, textile and packaging machinery
Rotary shafts operating under dusty and slightly humid conditions

5. Why Choose GQZ Bearing

25 years professional bearing manufacturer, products exported globally.

Strict raw material inspection and precision grinding process.

24-hour technical support for model selection.

Ample stock for machinery distributors.

Precise dimensions and stable service performance.

6. Quality Control Process

GCr15 raw material quenching & tempering treatment

Precision superfinishing for bearing rings and steel balls

Seal assembly and grease filling processing

Dimension tolerance, clearance and rotational noise testing

7. Request Quotation

If you need 6304-2RS deep groove ball bearings:

Send inquiry to obtain below supports:

Quick quotation within 24 hours
Optional open / 2Z shielded alternatives
Competitive factory direct price

Contact our sales team for full datasheets and formal offer.

Wholesale High Speed Deep Groove Ball Bearings Hybrid Ceramic Ball Bearing 625 Bearings 2RS ZZ for Mechanical 1 GQZ 6304-2RS Single Row Deep Groove Ball Bearing 20×52×15mm Double Contact Rubber Sealed Ball Bearing

8. FAQ

Q1: What does 2RS represent?: 2RS = double-sided contact rubber sealing structure.
Q2: Main dimensions of 6304-2RS?: 20×52×15 mm single row deep groove ball bearing.
Q3: Difference between 2RS and 2Z?: 2RS rubber seal suits damp environments; 2Z metal shield is only for dry dusty conditions.
