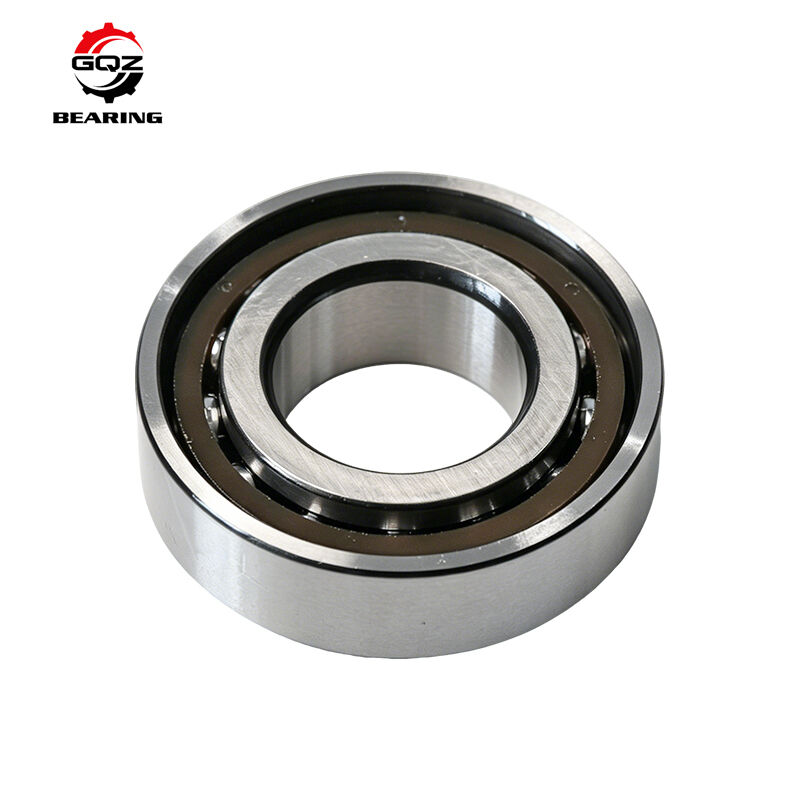

GQZ 7030ACM Single Row Angular Contact Ball Bearing 150×225×35mm 25° Contact Angle Open Type Brass Cage

7030ACM is standard single row open-type angular contact ball bearing.

• AC: 25° contact angle, balanced radial and axial load capacity
• M: Machined solid brass cage, stable guiding under heavy load and continuous rotation

Open structure supports grease or circulating oil lubrication. Single bearing withstands combined radial load and one-way axial load. It can be combined as DB back-to-back, DF face-to-face or DT tandem matched sets to bear bidirectional axial thrust. Suitable for medium-high speed, heavy alternating axial load working scenarios. Widely used for large machine tool spindles, heavy-duty ball screw supports, industrial gearboxes, compressors and large automation precision transmission equipment.

Formal quotation will be sent within 24 hours upon your inquiry.

Model

7030ACM

Dimensions

d150 mm, D225 mm, B35 mm

Min chamfer

r:2.1 mm; r₁:1.1 mm

Net weight

approx 4.10 kg

Structure

Single row angular contact ball bearing

Contact angle

25°

Material

Inner/outer ring: GCr15 bearing steel; machined brass cage

Structure form

Open type without seals

Basic dynamic load Cr

159100 N

Basic static load C0r

220600 N

Limiting speed

(grease):5000 rpm; (oil):7500 rpm

Additional Info

Complete dimension drawings and load data available on request.

1. 25° contact angle balances high-speed performance and axial load carrying capability
2. Machined brass cage features high rigidity, anti-deformation under heavy continuous load
3. Open design allows convenient oil circulation and periodic grease replenishment
4. Flexible duplex pairing: DB / DF / DT arrangement to meet different rigidity requirements
5. Standard ISO metric dimensions, fully interchangeable with mainstream brand specifications
6. Customizable: P5/P4 precision grade, different preload classes, OEM laser marking, high-temperature EP grease

• Large vertical & horizontal machining center main spindle assemblies
• Heavy-duty ball screw fixed-end support bearing units
• Industrial compressors, blowers and medium-speed heavy gearboxes
• Large automation positioning and rotary table equipment
• Mechanical systems subject to combined radial and alternating axial loads

25 years professional bearing manufacturer, products exported globally.

Strict precision grinding for raceways and steel balls.

Rigorous quality inspection for brass cage dimensional stability.

24-hour technical support for bearing pairing layout and preload selection.

Ample stock for machinery distributors.

Precise dimensions and stable service performance.

GCr15 raw material quenching & tempering hardness inspection

Precision superfinishing for raceway surfaces and steel balls

Contact angle, internal clearance and rotational runout testing

Cage flatness and assembly clearance inspection
