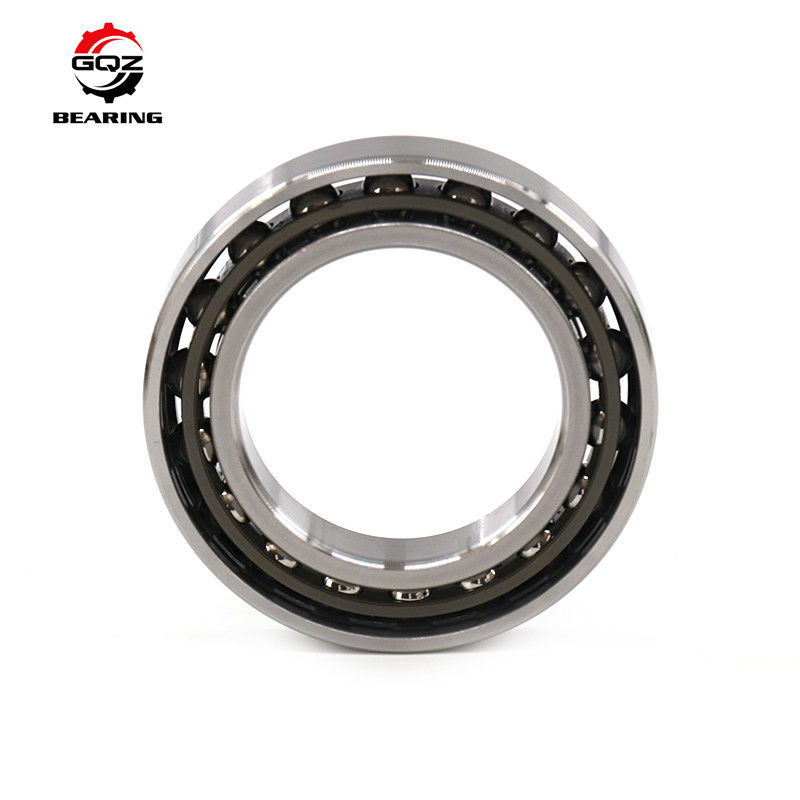

GQZ 7004-B-2RS Single Row Angular Contact Ball Bearing 20×42×12mm 40° Contact Angle Double Rubber Sealed

7004-B-2RS is standard single row angular contact ball bearing.

• B: 40° contact angle, superior axial load carrying capacity
• 2RS: Double-sided contact NBR rubber seals, effective against dust and water splash

  It bears combined radial load and one-way axial load. Single bearing can be arranged back-to-back, face-to-face or tandem paired to withstand bidirectional axial force. Sealed structure retains factory pre-filled grease for long maintenance-free operation. Suitable for medium-speed, dusty and humid working environments. Widely applied on hydraulic pumps, small spindles, packaging equipment, textile machinery and general automation rotary assemblies.

  Formal quotation will be sent within 24 hours upon your inquiry.

Model:

7004-B-2RS

Dimensions:

d20 mm, D42 mm, B12 mm

Minimum chamfer r:

0.6 mm

Net weight:

approx 0.068 kg

Structure:

Single row angular contact ball bearing

Contact angle:

40°

Material:

GCr15 bearing steel, pressed steel cage

Sealing:

Double-sided contact rubber seal

Standard clearance:

CN normal clearance; C3 clearance optional

Basic dynamic load Cr:

9180 N

Basic static load C0r:

6020 N

Limiting speed (grease):

24000 rpm

Complete dimension drawings and load data available on request.

1. 40° B contact angle delivers outstanding axial thrust bearing performance
2. Double contact rubber seals provide reliable protection against dust and liquid splashing
3. Pre-greased sealed construction reduces routine maintenance work
4. Flexible duplex pairing installation mode to satisfy different rigidity requirements
5. Standard ISO metric dimension, interchangeable with mainstream brand specifications
6. Customizable: P6 precision grade, C3 clearance, nylon cage, OEM laser marking, high-temperature grease

• Hydraulic pumps, compressors and fluid power equipment
• Small precision spindles and light-duty grinding equipment
• Packaging machinery, textile equipment and automated assembly lines
• Small fan units and general medium-speed rotary transmission devices
• Rotary machinery operating under dusty and humid conditions

• 25 years professional bearing manufacturer, products exported globally.
• Strict precision superfinishing for raceway surfaces.
• Standard seal tightness and grease filling testing process.
• 24-hour technical support for bearing matching and installation guidance.
• Ample stock for machinery distributors.
• Precise dimensions and stable service performance.

• GCr15 raw material quenching & tempering hardness inspection
• Precision superfinishing for raceways and steel balls
• Seal assembly, internal clearance grouping and rotational smoothness testing
• Dimensional tolerance and surface roughness inspection

If you need 7004-B-2RS angular contact ball bearings:

Send inquiry to obtain below supports:

• Quick quotation within 24 hours
• Open type / ZZ shield variant consultation
• Optional C3 clearance and nylon cage solution
• Competitive factory direct price Contact our sales team for full datasheets and formal offer.
