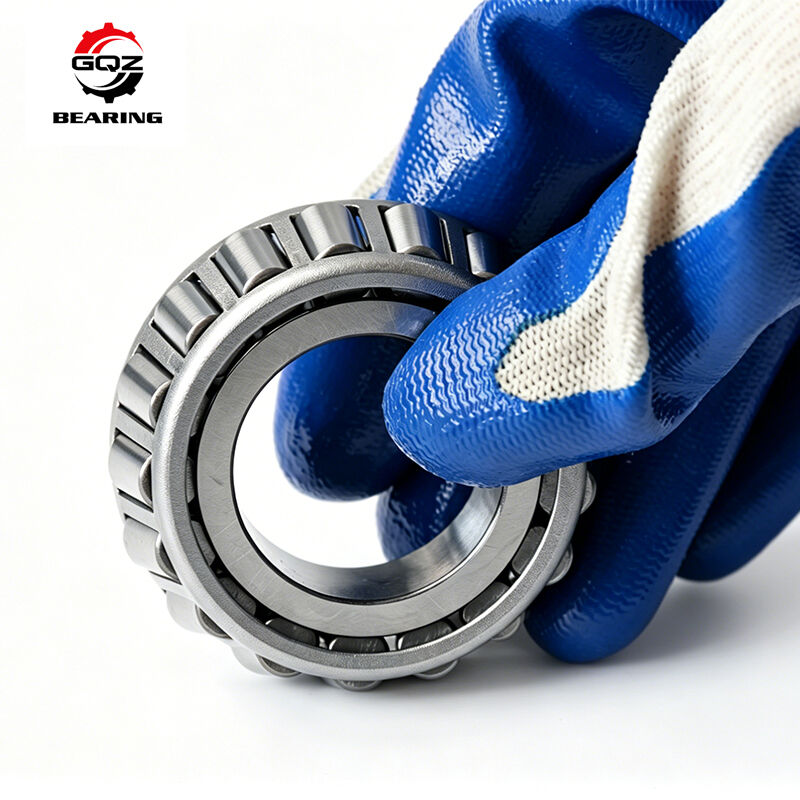

GQZ HM926740/10 Inch Tapered Roller Bearing HM926740/HM926710 114.3×214.312×55.563mm Heavy Duty Assembly

HM926740/10 is inch-size single row tapered roller bearing assembly, consisting of inner cone HM926740 and outer cup HM926710.

Separable construction allows independent installation of cone assembly and outer ring. It bears combined radial load and one-way axial load simultaneously. Tapered raceway design provides excellent load capacity and anti-shock performance. Widely used in heavy-duty truck axles, construction machinery, mining equipment, gear drives and large transportation machinery subjected to heavy impact loads.

Formal quotation will be sent within 24 hours upon your inquiry.

Model

HM926740/10 (HM926740 / HM926710)

Dimensions

d=114.3 mm, D=214.312 mm, T=55.563 mm

Net weight

approx 8.4 kg

Structure

Single row inch tapered roller bearing, cone + cup separable unit

Material

GCr15 bearing steel, pressed steel cage

Basic dynamic load Cr

382000 N

Basic static load C0r

550000 N

Limiting speed (grease)

1600 rpm

Complete dimension drawings and load data available on request.

1. Separable cone and cup design simplifies mounting, disassembly and maintenance
2. Outstanding capability to bear combined radial and single-direction axial loads
3. High shock resistance, stable performance under heavy impact working conditions
4. Standard inch dimension, fully interchangeable with international mainstream brands
5. Optimized roller contact surface reduces edge stress and extends service life
6. Customizable: OEM laser marking, special extreme pressure grease, precision tolerance grade

• Heavy-duty truck, trailer and commercial vehicle axle assemblies
• Construction machinery, excavator and loader transmission components
• Mining equipment, quarry machinery and heavy conveyor systems
• Industrial heavy gearboxes and low-speed heavy rotary equipment
• Large agricultural machinery and off-road vehicle power transmission units

25 years professional bearing manufacturer, products exported globally.

Precision grinding for tapered raceways and rollers, strict contact pattern inspection.

Full dimensional verification for inch series bearings.

24-hour technical support for installation preload adjustment guidance.

Ample stock for machinery distributors.

Precise dimensions and stable service performance.

GCr15 raw material quenching & tempering hardness inspection

Precision superfinishing for tapered raceways and rollers

Contact trace, clearance and rotational smoothness testing

Dimension tolerance and surface defect inspection

If you need HM926740/10 tapered roller bearings:

Send inquiry to obtain below supports:

• Quick quotation within 24 hours
• Interchangeable model cross reference consultation
• Bulk order preferential factory price
  Contact our sales team for full datasheets and formal offer.
