GQZ W209PPB5 Spherical Outer Square Bore Agricultural Ball Bearing 34.925mm Square Shaft 85mm Outer Diameter Multi Lip Seal

Name: GQZ W209PPB5 Spherical Outer Square Bore Agricultural Ball Bearing 34.925mm Square Shaft 85mm Outer Diameter Multi Lip Seal
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: W209PPB5
Price: 1,577.10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	W209PPB5
MOQ:	100.PCS
Price:	negotiation
Delivery Time:	5 working days
Payment Terms:	T/T,Western Union,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001/ISO14001/GJB9001

Lubrication:

Pre-lubricated With Grease

Speedrating:

High Speed Capability

Clearance:

C0,C2,C3,C4

Separted:

Unseparated

Characteristic:

High Speed And High Rigidity

Applicable Industries:

Machinery Repair Shops, Other

Packing:

Singe Carton Packing

Ring Separation:

Separable Ring

Locking Device:

Dual Set Screw 120° Offset

Housing Type:

FB204

Rings Material:

100Cr6 / GCr15

Load Capacity:

High Load Capacity

Precsion Level:

P6/P5/P4/P2

Precision Level:

P0|P6|P5|P4|P2|P0,P6,P5,P4,P2

Certifiexcavatorion:

ISO-9001

Sample:

Width:

Varies (e.g., 14mm - 40mm)

Customized:

Acceptable

Inner Diameter:

6mm

Hs Code:

8482200000

Deliver Time:

3~4 Work Days In Normal

Precisiongrade:

Standard To High Precision

Cagematerial:

Steel Or Brass

Bore Diameter:

17 Mm

Bore Type:

Cylindrical

Row:

Double Row

Materical:

GCr15

Housing:

F218

Radial Clearance:

C0, C3, C4

Quality Standard:

ISO9001:2000

Inner Ring:

Extended Both Sides

Usage:

Industrial,machinery,bearing Housing

Warranty:

1 Year Manufacturer Warranty

Shaft Diameter:

28 Mm

Quality System:

ISO9001-2008

Bearing Size:

30*62*48 Mm

Cor:

120.273 Lbs

Characteristics:

High Temperature Resistance

Stock:

390.pcs

Samples:

Available

Model:

LE 310 2F

Sizerange:

10mm To 200mm Inner Diameter

Innerdiameter:

Varies (e.g., 10mm - 100mm)

Color:

Black, Grey, White, Red

Productname:

Agriculture Bearings

Durability:

High Durability For Harsh Environments

Rolling Colummn Number:

Double Row

Sealingtype:

Rubber Seal / Metal Shield

Same Bearing:

22217EK Bearing

Dimension:

20*47*45mm

Bearing Material:

Chrome Steel

Vibrationresistance:

High Vibration Resistance

Operatingspeed:

Suitable For Medium To High Speeds

Shaft Dia:

40mm

Mounting Type:

Press Fit / Slip Fit

Installationtype:

Press Fit / Bolt-on

Bearing Number:

UC207

Seals Type:

ZZ 2RS OPEN,ZZ,2RS,Open

Package:

Original Packing

Housing Number:

P203

Housing Material:

Cast Iron HT200

Static Load Rating:

4.75 KN

Vibration:

Z1V1|Z2V2|Z3V3

Free Samples:

Available

Thickness:

18.288/12mm

Certifiexcavatore:

ISO9001:2000 TS16949

Rolling Body:

Spherical Roller Bearing

Bore:

12 Mm

Available Samples:

YES

Grease Fitting:

Integrated, Standard M6 Thread

Bearing Model:

UCF207

Market:

Europe Or USA Or Russia Or Japan

Industry:

Industrial Reducer Bearings

Corrosionresistance:

Yes, Treated For Corrosion Resistance

Ouside Diameter:

380mm

Port:

Shanghai /Shenzhen

Origin:

Ningbo

Row Type:

Single Row

Precision Rating:

Part Number:

F-236120/7594460

Temperaturerange:

-30°C To 120°C

Dynamic Load Rating:

10.8 KN

Packaging Details:

Standard Carton Box

Supply Ability:

1000.pcs / Month

Product Description

1. Product Overview

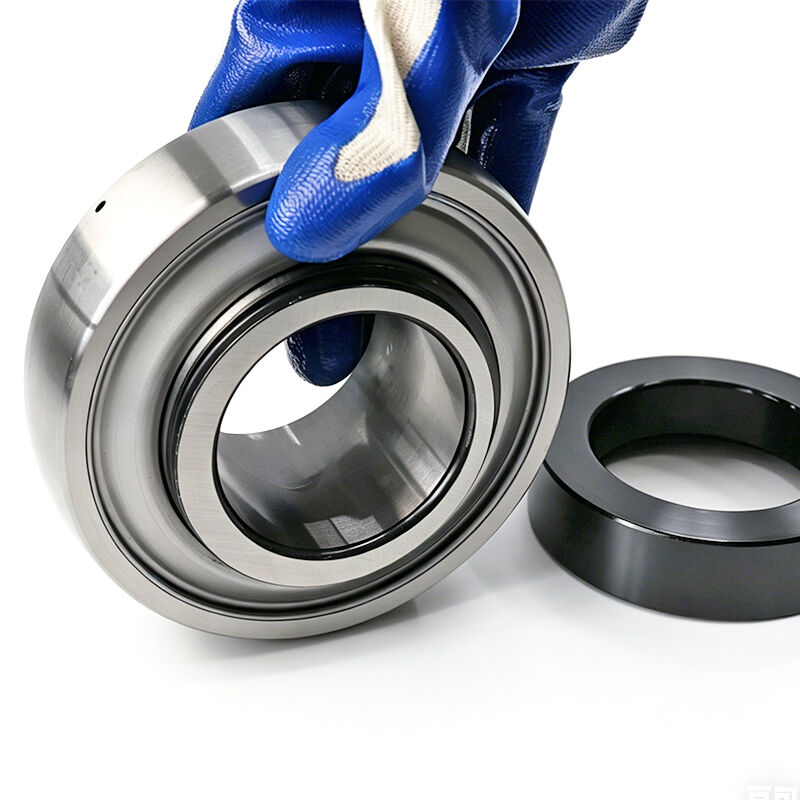

The W209PPB5 is heavy-duty agricultural square bore ball bearing with spherical outer ring and multi-layer composite mud-proof seals. Designed for 1-3/8 inch square drive shafts, it fits perfectly on disc harrows, round balers and combine harvesters. Spherical outer surface provides self-aligning function to compensate minor assembly misalignment. Non-relubricated sealed construction serves as reliable interchange replacement for farm tillage equipment.

👉 Get a quote within 24 hours for your project

2. Technical Specifications

Model: W209PPB5
Square Bore (d): 34.925 mm (1-3/8 inch)
Outer Diameter (D): 85 mm
Inner Ring Total Width (B): 28.6 mm
Outer Ring Width (C): 24.6 mm
Structure: Single row deep groove ball bearing, spherical O.D., square inner bore
Material: GCr15 chrome bearing steel
Seal Type: Multi-layer composite dust & mud resistant lip seal
Relubricable: Non-relubricable, permanently pre-greased
Basic Dynamic Load Cr: 31600 N
Basic Static Load C0r: 20800 N
Approx Net Weight: 0.66 kg

👉 Full technical data and drawings available upon request

3. Key Advantages

Special square inner bore tightly locks agricultural square shafts to prevent slipping under heavy field load
Spherical outer ring realizes self-alignment to absorb minor installation misalignment
Multi-layer reinforced seals effectively block mud, crop residues, dust and water splash
High toughness bearing steel withstands continuous vibration and impact during field operation
Factory pre-filled long-life agricultural grease, maintenance-free sealed structure
Custom options: OEM laser marking, anti-rust surface treatment, special low-temperature grease

👉 Reduce field maintenance frequency and extend service life of agricultural equipment

4. Applications

This bearing is widely used in:

Disc harrow, soil tillage and planting agricultural machinery
Round baler, rotary rake and combine harvester transmission parts
Farm grain conveying and straw crushing equipment
Agricultural roller hubs and land preparation machinery

👉 Ideal for customers looking for reliable and long-life bearing solutions

5. Why Choose GQZ Bearing

25+ years experience in agricultural special bearing manufacturing
Exported to 50+ countries worldwide
Rich experience in OEM & interchange square bore farm bearing projects
Strict full-process quality inspection before shipment
Fast response within 24 hours for technical consultation
Stable bulk supply for agricultural machinery aftermarket distributors

👉 We focus on quality, reliability, and long-term partnership

6. Quality Control

Raw material hardness inspection for GCr15 bearing steel
Precision grinding & superfinishing of raceway and square bore
Heat treatment metallurgy and hardness control
Seal tightness, load & rotation smoothness testing
Final dimensional and appearance inspection before delivery

👉 Ensuring consistent stable performance for every bearing

7. Get a Quote Now

Looking for a reliable bearing supplier?

👉 Send your inquiry to get:

Fast quotation within 24 hours
Professional engineer technical support
Custom bearing solution suggestions
Competitive factory direct price

👉 Click “Send Inquiry" or contact us now

Wholesale High Speed Deep Groove Ball Bearings Hybrid Ceramic Ball Bearing 625 Bearings 2RS ZZ for Mechanical 1 GQZ W209PPB5 Spherical Outer Square Bore Agricultural Ball Bearing 34.925mm Square Shaft 85mm Outer Diameter Multi Lip Seal

8. FAQ

Q1: Can you provide custom bearings?

Yes, we support OEM and custom production based on drawings and load requirements.

Q2: What is your delivery time?

Standard models: 7–15 days

Custom products: depending on specifications

Q3: Do you support large bulk orders for agricultural aftermarket?

Yes, we provide stable mass supply for long-term cooperative distributors.
