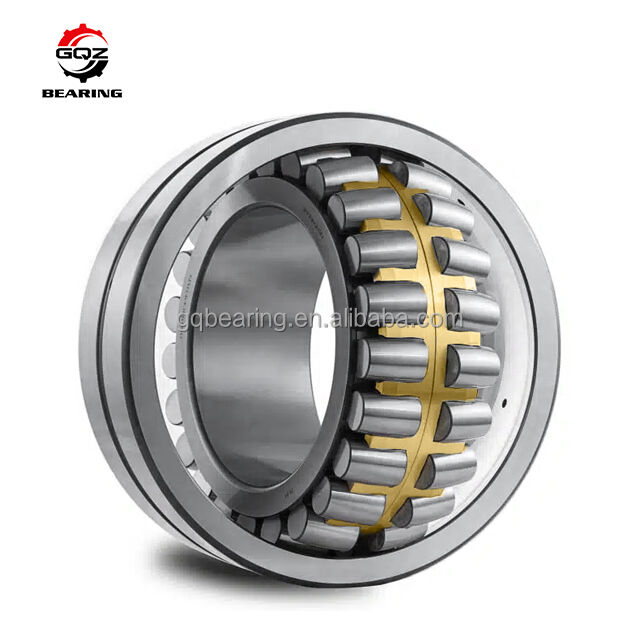

36690/20 Double Row Spherical Roller Bearing 100x215x73mm Heavy Load Mining Crusher Bearing

1. Product Overview

36690/20 is double row heavy-duty spherical roller bearing, standard metric dimension 100mm inner bore × 215mm outer diameter × 73mm width.
Model Code Explanation:

- 36690/20: Standard heavy mining series spherical roller bearing, split code model commonly used in crushing and vibrating machinery
- Structure characteristic: Double row symmetric spherical rollers, spherical outer ring raceway, strong self-aligning performance, can bear huge combined radial load and bidirectional heavy axial load
Inner ring, outer ring and spherical rollers adopt high purity GCr15 bearing steel, after overall quenching and superfinishing treatment. Machined solid brass cage separates rollers evenly, avoids roller skew under severe vibration and impact load. Large roller contact area brings outstanding overload resistance and fatigue life. Open structure adapts circulating oil lubrication, suitable for continuous high-impact heavy-duty working conditions. Widely applied to stone crusher, vibrating screen, cement kiln supporting roller, mining conveyor roller, ball mill auxiliary shaft and all heavy vibration industrial equipment with shaft deflection.

2. Technical Specifications

Mounting dimension drawings, crusher assembly matching guides and heavy impact vibration durability test reports can be provided on customer request.

3. Core Advantages

• Spherical outer ring raceway + double row spherical roller design, excellent self-aligning ability, allows shaft deflection within ±2°, adapt to equipment foundation deformation and installation misalignment of vibrating screens and crushers.
• Double row large-size spherical rollers, ultra-large contact area, superior dynamic and static load capacity, stable operation under frequent heavy impact load of stone crushing production line.
• Integral machined brass cage, high strength and wear resistance, not easy to deform under long-term severe vibration, effectively eliminate roller skew and abnormal noise.
• High purity quenched GCr15 steel raw material, uniform metallographic structure, strong anti-fatigue and anti-spalling performance, greatly extend service life under cyclic impact load.
• Open through-type design without sealing barrier, circulating oil can fully circulate inside bearing, rapid heat dissipation to avoid high-temperature oil carbonization and bearing burning loss during continuous heavy-load operation.
• Unified interchangeable industry standard dimensions, fully compatible with global mainstream 36690/20 mining spherical roller bearings, direct replacement without modifying crusher housing and shaft structure.
• Multiple clearance options available: C3 general industrial clearance, C4 special enlarged clearance for vibrating screen, eliminate heat expansion jamming during long-time high temperature operation.
• Rich customizable options: Single/double lip contact seal upgrade, high temperature resistant bearing steel variant, OEM laser marking on outer ring, neutral export anti-rust carton packaging, extreme pressure heavy-duty grease pre-filling.

4. Application Scenarios

36690/20 heavy-duty self-aligning spherical roller bearing is high-impact heavy-load rotary spare part matched with 100mm shaft mining and cement heavy equipment:

• Jaw crusher, cone crusher, impact crusher main shaft support bearing assemblies
• Linear vibrating screen, circular sieve excitation shaft and roller support bearing sets
• Cement rotary kiln supporting roller, cooler transmission heavy load bearing components
• Mine large belt conveyor driving roller and tensioning roller bearing positions
• Mineral processing ball mill, rod mill auxiliary transmission rotating parts
• Sand making machine, aggregate sorting machinery heavy vibration limit bearings

Aftermarket interchangeable mining dedicated double row spherical roller bearing
Heavy impact self-aligning bearing solution for crusher manufacturers, cement plant equipment OEM factories and mining machinery bulk maintenance procurement.

5. Why Choose GQZ Bearing

• We have 25 years of mature professional manufacturing experience for heavy mining series spherical roller bearings including 36690/20 crusher and vibrating screen dedicated models.
• Our 36690/20 bearings adopt unified international heavy machinery standard dimensions, consistent dynamic/static load parameters, GCr15 integral quenching heat treatment and brass cage precision machining standards, fully dimensionally interchangeable with imported original brand mining spherical roller bearings.
• Complete OEM & ODM customized service system, supporting C3/C4 multi-clearance group selection, sealing structure transformation, high temperature raw material upgrade and personalized outer ring marking demands.
• Strict pre-delivery full quality inspection workflow: GCr15 steel raw material composition and hardness test, spherical roller automatic sorting screening, long-cycle alternating heavy impact vibration rotation aging test, cage tensile strength full batch inspection.
• Professional mining spherical roller bearing technical team provides one-to-one heavy radial-axial combined load matching calculation, crusher shaft interference fit tolerance design and circulating oil cooling lubrication maintenance guidance within 24 working hours.
• Standardized heavy spherical roller bearing forging & grinding production workshop provides competitive factory direct bulk wholesale price, stable long-term mass supply for global mining, cement and aggregate processing machinery spare parts purchasers.
• We specialize in heavy-duty self-aligning spherical roller bearings for mining equipment, strict spherical raceway superfinishing and brass cage anti-vibration quality control, committed to long-term stable win-win cooperation with heavy impact vibration transmission equipment suppliers.

6. Quality Control

• Raw material chemical composition, hardness and fatigue resistance inspection for GCr15 inner/outer ring and spherical roller blanks
• Precision forging & CNC turning forming processing, multiple stress relief tempering cycles, ultra-precision superfinishing grinding for spherical inner and outer raceway surfaces
• Large spherical roller high-temperature integral quenching, mirror polishing and high-precision automatic sorting production line
• Solid brass cage precision turning & drilling forming process, whole bearing assembly clearance inspection, heavy-duty extreme pressure grease quantitative filling procedure
• Targeted professional performance testing: 36690/20 long-cycle crusher alternating heavy impact vibration rotation aging test, mine dust mixed high temperature environment anti-abrasion durability simulation test, self-aligning deflection performance detection
• Comprehensive re-inspection of overall dimensional tolerance, inner bore roundness and outer ring surface smoothness before anti-rust oil coating and export moisture-proof carton packaging.

Each production batch of 36690/20 bearings undergoes stone crusher continuous cycle heavy impact load simulation test to guarantee stable self-aligning anti-vibration heavy-load rotary support performance for 100mm shaft mining heavy transmission systems.

7. Get A Quote Now

If you need 36690/20 100x215x73 open heavy-duty double row spherical roller bearings for stone crusher / vibrating screen manufacturing, cement kiln heavy transmission assembly and mining equipment maintenance bulk matching, send your purchase demand directly.
Complete professional one-stop supporting services after sending inquiry:

• Formal official detailed quotation reply within 24 working hours
• One-to-one heavy radial + bidirectional axial combined impact load matching calculation, crusher shaft press-fit installation and circulating oil cooling lubrication technical support provided by professional mining spherical roller bearing engineers
• Customized bearing performance upgrade options including C4 enlarged vibration clearance and double lip reinforced dust seal modification
• Favorable factory direct bulk wholesale price for large quantity single model orders of 36690/20

Please provide purchase quantity, actual working conditions (frequent heavy impact vibration / mine dust high temperature environment / large shaft deflection self-aligning demand) to obtain complete official quotation documents.
