Tapered Roller Bearing
Created with Pixso. 32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

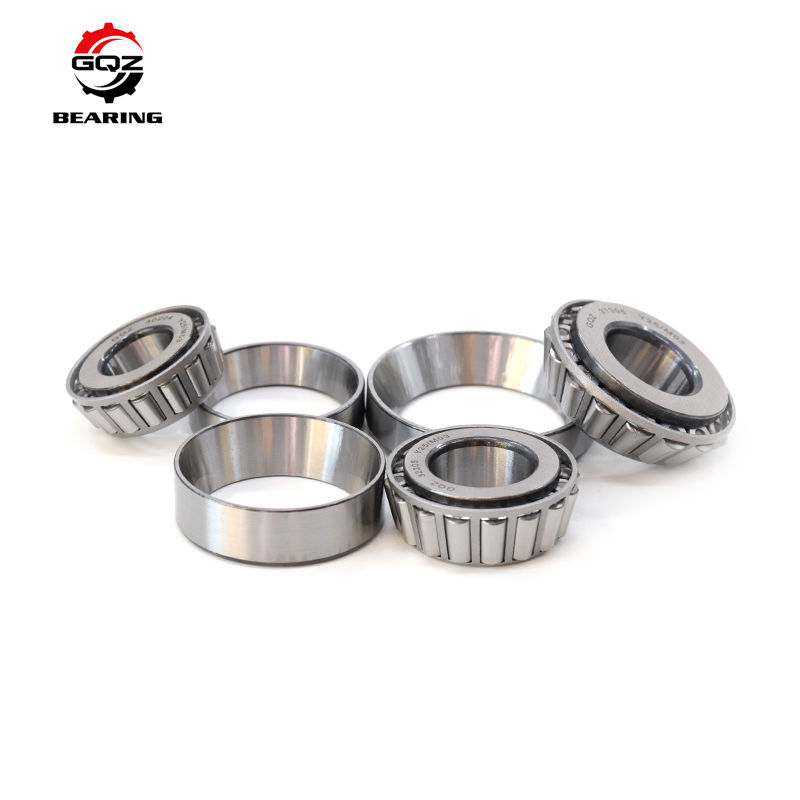

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

Brand Name: GQZ /OEM
Model Number: 32213
MOQ: 1 PCS
Price: USD 0.1-0.9
Delivery Time: 3-5 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015
Precision Rating:
P0/P6
Material:
GCr15 Chrome Bearing Steel
Number Of Row:
Single Row
Bearing Model:
32213
Outer Diameter(D):
120mm
Seals Type:
Open
Inner Diameter(d):
65mm
Width(B):
32.75mm
Packaging Details:
in individual packing box
Supply Ability:
100000 Sets per month
Highlight:

32213 tapered roller bearing 65x120x32.75mm

,

single row tapered roller bearing for construction machinery

,

tapered roller bearing with warranty

Product Description
32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

Product Overview
  • Tapered roller design handles heavy combined radial and axial loads
  • Thickened cross‑section delivers higher load capacity than standard 302 series
  • Separable construction simplifies mounting disassembly and inspection
  • Robust steel cage improves impact resistance and operational stability
  • GCr15 chrome bearing steel provides high hardness and wear resistance
  • Suitable for harsh working conditions with heavy‑duty requirements
  • *Need a quick quote? Just send us your bearing model & quantity — we’ll get back to you fast.
Key Specifiions
Item Specification
Bearing Model 32213
Bearing Type Tapered Roller Bearing
Bore(d) 65 mm
Outer Diameter(D) 120 mm
Width(B) 32.75 mm
Basic Dynamic Load(Cr) 178.0 kN
Basic Static Load(C0r) 202.0 kN
Limiting Speed(Grease) 3600 r/min
Seal Type Open
Cage Material Steel Cage
Material GCr15 Chrome Bearing Steel
Tolerance Class P0
Number Of Row Single Row
Internal Clearance CN(Normal Clearance)
Weight 1.38 kg
Main Features
  • 32213 is single‑row tapered roller bearing with heavy‑load capacity for combined loads.
  • Large taper angle improves unidirectional axial load bearing performance.
  • Separable inner assembly and outer ring simplify installation and maintenance work.
  • High‑purity GCr15 bearing steel delivers high hardness and excellent wear resistance.
  • Standard steel cage maintains stable rotation under continuous heavy‑duty operation.
  • Robust structure fits heavy‑duty transmission scenarios with compact overall dimensions.
Typical Appliions
  • Heavy‑duty gearbox and speed reducer units
  • Automotive axle and wheel hub transmission parts
  • Medium‑heavy construction machinery rotating shafts
  • Agricultural heavy‑load transmission equipment
  • Conveyor systems with heavy combined load requirements

*Ready stock. Short lead time. Fast delivery. Send us your bearing list and let’s get started!

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

32213 Tapered Roller Bearing 65x120x32.75mm Single Row for Construction Machinery

FAQ

Q1: What is 322 series bearing?

A1: It is single‑row thick cross‑section tapered roller bearing.

Q2: What loads can it carry?

A2: It bears heavy combined radial and one‑way axial loads.

Q3: Is 322 series bearing separable?

A3: Yes, inner roller assembly and outer ring can be separated.

Q4: Is preload adjustment needed?

A4: Proper preload adjustment is required on installation.

Q5: What are typical applications?

A5: Mainly for gearboxes, axles and construction machinery.
