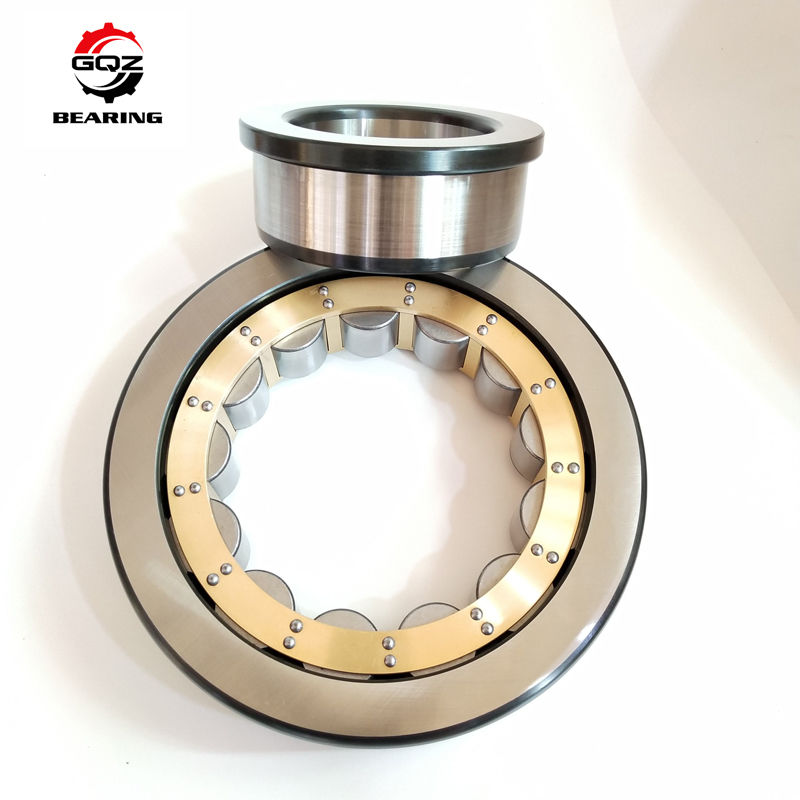

Cylindrical Roller Bearing NN3020HSRT6KC1NA

Name: Cylindrical Roller Bearing NN3020HSRT6KC1NA
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: NN3020HSRT6KC1NA
Price: 10 USD
Availability: InStock

Brand Name:	GQZ
Model Number:	NN3020HSRT6KC1NA
MOQ:	1
Price:	10
Delivery Time:	5 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Cable:

With Cable

Stock Qty:

185.pcs

Feature:

Inch Taper Roller Bearings

Sealingtype:

Sealed, Shielded, Open

Bearing Material:

Chrome Steel

Innerdiameter:

Varies (e.g., 10mm - 100mm)

Retainer:

Stainless Steel/Chrome

Row No:

Double Row

Work Speed:

20000RPM

Inner Diameter:

100mm

Service:

OEM Customized Services

Loadcapacity:

Dynamic And Static Load Ratings Specified Per Model

Seal Material:

Rubber

Packaging Details:

standard export box

Supply Ability:

1000/month

Highlight:

Cylindrical Roller Bearing NN3020HSRT6KC1NA

Automotive Cylindrical Roller Bearing

High-Speed Cylindrical Roller Bearing

Product Description

Model NO.

NN3020HSRT6KC1NA

Outer Dimension

Medium and Large(120-190mm)

Material

Bearing Steel

Spherical

Non-Aligning Bearings

Load Direction

Radial Bearing

Separated

Unseparated

Brand

Auto

Packaging

Wooden Case

Transportation

Sea/Air/Express

Payment

T/T

Transport Package

Wooden Case

Specification

Depends on quantity

Trademark

AUTO

Origin

China

HS Code

8482500090

Production Capacity

1000000PCS/Year

Product Description

The rolling body of the cylindrical roller bearing is the centripetal rolling bearing of the cylindrical roller bearing. The internal structure of cylindrical roller bearing is arranged in parallel with rollers, and spacer or spacer block is installed between rollers, which can prevent the inclination of rollers or the friction between rollers and effectively prevent the increase of rotary torque.

Cylindrical roller and raceway are linear contact bearings. Large load capacity, mainly bear radial load. The rolling body has little friction with the rim of the ring and is suitable for high-speed rotation. According to whether the ring has flanges, it can be divided into NU, NJ, NUP, N, NF and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings. The bearing is a detachable structure with inner ring and outer ring.

Cylindrical roller bearings with inner ring or outer ring without flanging, the inner ring and outer ring can move relative to the axis, so they can be used as free-end bearings. One side of the inner ring and outer ring has double stops, and the other side of the ring has a single stop cylindrical roller bearing, which can bear a certain degree of axial load in one direction. Steel plate cage or solid cage made of copper alloy is generally used. But some parts use polyamide forming retainers.
