Created with Pixso. 6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

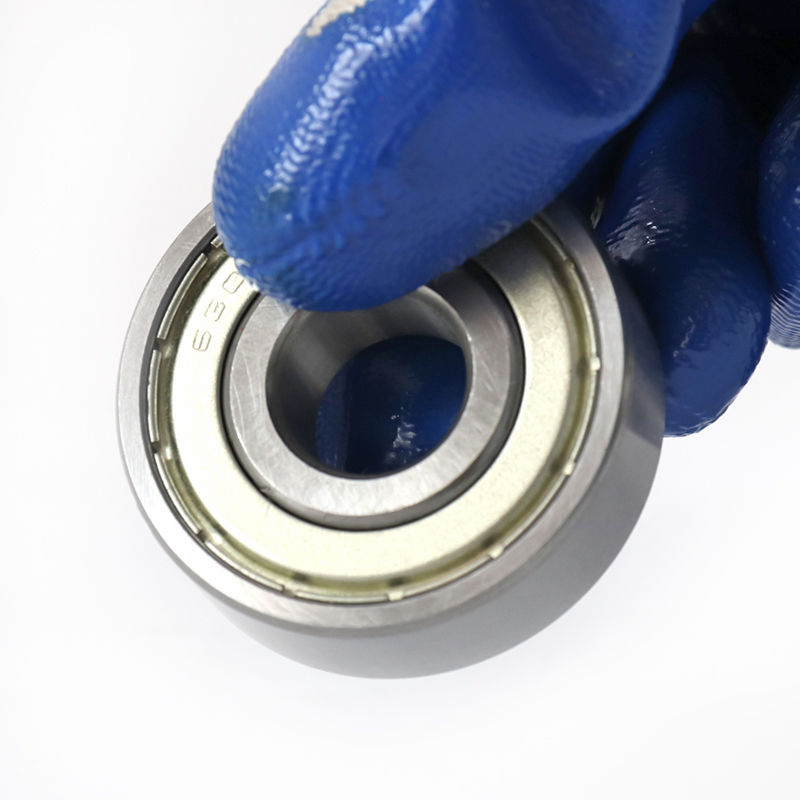

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

Brand Name: GQZ /OEM
Model Number: 6202‑2Z/C3
MOQ: 1 PCS
Price: USD 0.05-0.08
Delivery Time: 3-5 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015
Width(B):
11mm
Number Of Row:
Single Row
Precision Rating:
P0/P6
Inner Diameter(d):
15mm
Material:
GCr15 Chrome Bearing Steel
Seal Type:
2Z Double Metal Shield
Outer Diameter(D):
35mm
Bearing Model:
6202‑2Z/C3
Packaging Details:
in individual packing box
Supply Ability:
100000 Sets per month
Highlight:

6202-2Z/C3 deep groove ball bearing

,

15x35x11mm industrial ball bearing

,

deep groove ball bearing for rotating shaft

Product Description
6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

Product Overview

  • 6202‑2Z/C3 is single‑row deep groove ball bearing with double metal shields and C3 enlarged clearance.
  • It mainly takes radial load and can also bear small bidirectional axial loads for small rotating parts.
  • Factory pre‑greased, 2Z metal shields keep dust out to lower regular maintenance work.
  • C3 extra clearance suits conditions where shaft gets hot and expands during running.
  • Made of standard bearing steel, it runs stably for small motors and general‑purpose equipment.

*Need a quick quote? Just send us your bearing model & quantity — we’ll get back to you fast.

Key Specifications
Item Specification
Bearing Model 6202‑2Z/C3
Bearing Type Deep Groove Ball Bearing
Bore(d) 15 mm
Outer Diameter(D) 35 mm
Width(B) 11 mm
Basic Dynamic Load(Cr) 8.06 kN
Basic Static Load(C0r) 3.75 kN
Limiting Speed(Grease) 22000 r/min
Seal Type 2Z Double Metal Shields
Cage Material Sheet Steel Cage
Material GCr15 Chrome Bearing Steel
Tolerance Class P0
Number Of Row Single Row
Internal Clearance C3
Weight 0.045 kg
Main Features
  • 2Z double metal shields offer reliable dust protection without contact friction loss.
  • C3 larger internal clearance accommodates thermal expansion under high‑temperature running.
  • Supports radial load and bidirectional axial load for multi‑direction force conditions.
  • Factory pre‑filled grease allows direct installation with no extra lubrication needed.
  • Sheet steel cage keeps rolling elements stable under continuous high‑speed rotation.
  • Robust standard structure, easy sourcing and cost‑effective for volume industrial matching.
Typical Applications
  • General‑purpose electric motors and driving motor assemblies
  • Conveyor systems and logistics transport machinery
  • Fans, blowers and high‑temperature running mechanical parts
  • Pumps and light‑duty industrial transmission units
  • General workshop machinery and rotating shaft support points

*Ready stock. Short lead time. Fast delivery. Send us your bearing list and let’s get started!

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

6202‑2Z/C3 Deep Groove Ball Bearing 15x35x11mm for Industrial Rotating Shaft

FAQ

Q1: What do 2Z and C3 stand for?

A1: 2Z is double metal dust shields, C3 is enlarged clearance for high‑speed high‑temperature use.

Q2: Are 2Z/C3 bearings pre‑greased?

A2: Yes, factory pre‑lubricated for fast installation and less maintenance.

Q3: Why choose C3 clearance?

A3: It compensates shaft thermal expansion to prevent bearing jamming.

Q4: Is 2Z bearing waterproof?

A4: No, only dust‑proof. Choose 2RS for wet working conditions.

Q5: What loads can 2Z/C3 take?

A5: Mainly radial loads, plus moderate bidirectional axial loads.
