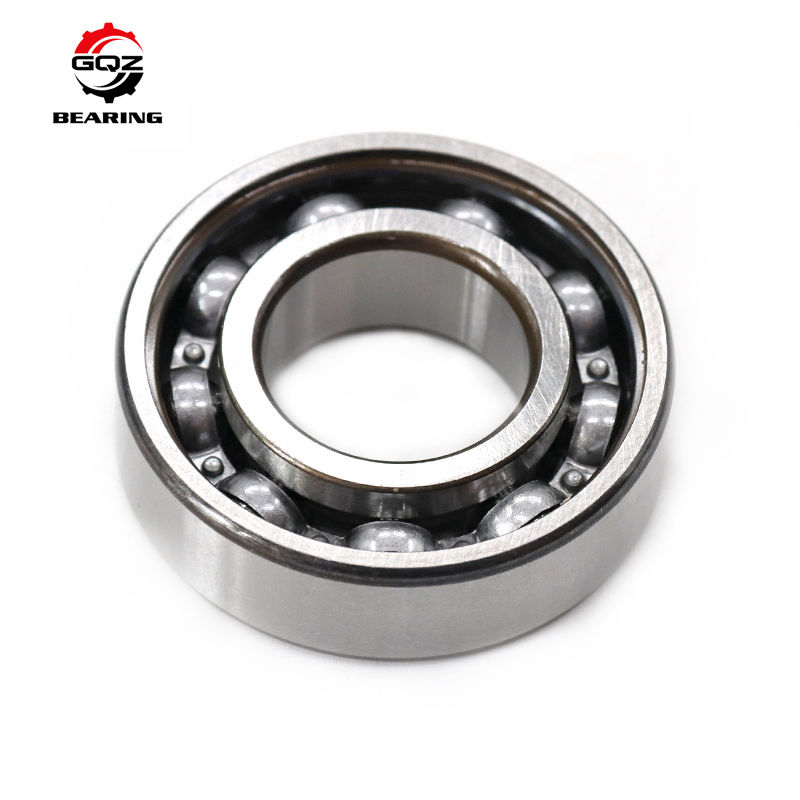

16008 40x68x9mm Thin Section Open Single Row Deep Groove Ball Bearing

1. Product Overview

16008 belongs to 16000 series thin-section single row open deep groove ball bearing, standard metric dimension 40×68×9mm, ultra-narrow thin cross-section design to save axial installation space and reduce equipment overall weight. Open type structure allows continuous circulating oil & grease lubrication; super-finished deep raceway can bear radial load and bidirectional light axial load simultaneously, featuring low noise, low friction and stable high-speed rotation performance. Equipped with high-precision steel balls and stamped steel cage, stable operation under long-term light & medium load. Widely used in textile high-speed spindles, printing machine paper feed rollers, precision automation equipment, small industrial high-speed motors, optical testing instruments and lightweight conveyor machinery.

2. Technical Specifications

Model: 16008
d=40mm, D=68mm, B=9mm
Min chamfer r=0.3mm
Dynamic load Cr=13.8kN, Static load C0r=10.2kN
Grease limiting speed=10000r/min, Oil limiting speed=12000r/min
Net weight=0.125kg
Structure: Single row deep groove, open type without shield/seal, stamped steel cage
Material: Vacuum smelting GCr15 bearing steel, hardness HRC60-65
Clearance: Standard CN, C2/C3 customized available
Precision: P0 standard, P6/P5/P4 optional
Operating temperature: -30℃ ~ 120℃
Dimension drawings and high-speed durability test reports available on request.

3. Core Advantages

• Ultra-thin 9mm width thin-wall design, greatly reduces axial occupation space for compact miniaturized equipment
• Open structure supports centralized circulating lubrication, suitable for uninterrupted long-running production lines
• Mirror super-finished raceway minimizes friction and running noise, consistent performance under continuous high-speed operation
• Lightweight thin ring structure lowers equipment overall load, perfect for precision optical and lightweight automation devices
• Standard interchangeable metric size, universal replacement for mainstream textile, printing and automation OEM spare parts
• Multiple customizable versions: nylon/brass cage, C3 loose clearance, stainless steel anti-corrosion type, special low-viscosity high-speed grease
• Strict dimensional runout control, stable rotation accuracy for measuring instruments and optical turntables

4. Application Scenarios

• Textile machinery: High-speed spinning spindles, loom transmission rollers, winding machine rotary components
• Printing & packaging equipment: Offset press paper rollers, light packaging machine rotating assemblies
• Precision automation: Robot auxiliary shafts, semiconductor handling equipment, lightweight conveyor rollers
• Small power equipment: Mini high-speed industrial motors, cooling fans, small generator rotating parts
• Optical & testing instruments: Measuring turntables, medical diagnostic equipment, laboratory precision rotary mechanisms
  Fit OEM assembly and aftermarket replacement of compact light-load high-speed precision rotating machinery.

5. Why Choose GQZ Bearing

25 years professional manufacturer of 16000 series thin section deep groove ball bearings. Adopt high-purity vacuum smelting GCr15 steel with complete quenching and tempering heat treatment, stable anti-fatigue performance under long-time high-speed light load. Full OEM & ODM customization support for cage material, clearance grade, precision class and special lubricant. Complete strict inspection workflow: raw material hardness test, CNC ultra-precision raceway superfinishing, high-grade steel ball sorting and high-speed rotation aging test. 24-hour professional technical support for thin-wall shaft fit tolerance and circulating lubrication scheme design. Factory direct bulk price, sufficient 16008 bearing spot stock for global textile, printing and automation machinery manufacturers.

6. Quality Control

1. Raw material chemical composition and hardness inspection
2. Integral quenching and stress relief tempering to eliminate internal residual stress
3. CNC ultra-precision inner & outer ring raceway mirror superfinishing
4. High-precision steel ball screening and stamped steel cage stamping forming
5. Dust-free assembly with low-drag high-speed mechanical pre-grease filling
6. Continuous high-speed rotation aging and wear resistance cycle testing
7. Full dimension inspection, anti-rust oil coating, neutral moisture-proof export carton packaging
   Each batch passes rotation smoothness and noise test to guarantee stable long-term high-speed precision operation for compact industrial equipment.

7. Get A Quote

Send inquiries for 16008 thin section open deep groove ball bearings used on textile spindles, printing rollers and precision automation motors.
Available services:

1. Standard formal quotation document delivered within 24 working hours
2. Technical guidance for thin-wall shaft fit tolerance and circulating lubrication layout
3. Upgrade options: P5 high precision grade, C3 loose clearance, nylon cage, low-noise synthetic high-speed grease
4. Competitive factory bulk unit price for large quantity orders
   Please state order quantity, rotating speed and working environment to receive complete quotation documents.
