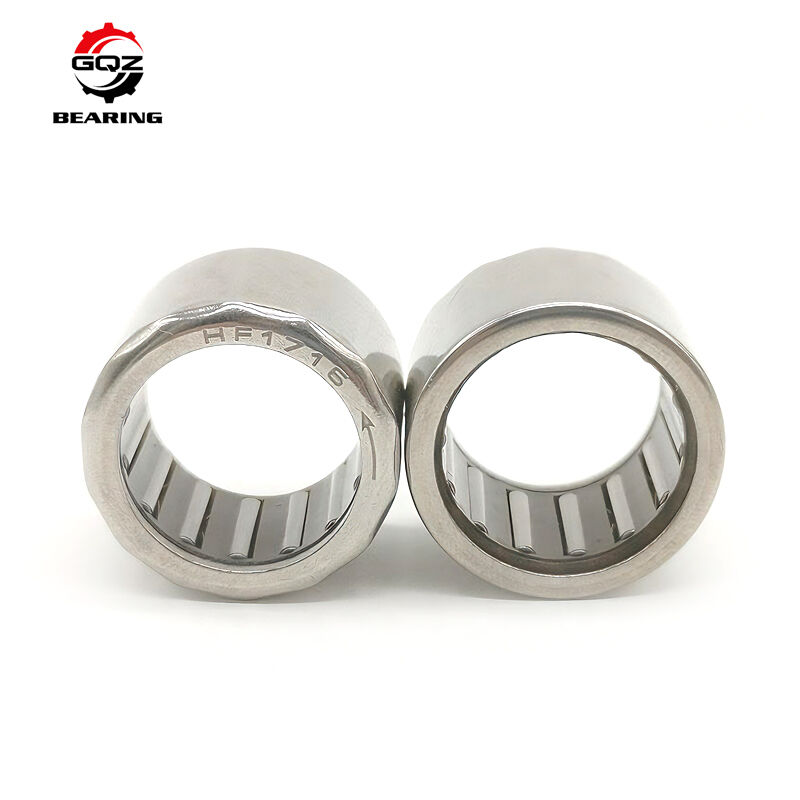

HF172316 One Way Needle Roller Bearing 17×23×16mm for Fitness Equipment

Name: HF172316 One Way Needle Roller Bearing 17×23×16mm for Fitness Equipment
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: HF172316
Price: 0.01 USD
Availability: InStock

Brand Name:	GQZ /OEM
Model Number:	HF172316
MOQ:	1 PCS
Price:	USD 0.01-0.08
Delivery Time:	3-5 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015

Inner Diameter D:

17 Mm

Material:

GCr15 Chrome Bearing Steel

Bearing Model:

HF172316

Width B:

16 Mm

Seal Type:

Open

Outer Diameter D:

23 Mm

Packaging Details:

in individual packing box

Supply Ability:

100000 Sets per month

Highlight:

One Way Needle Roller Bearing 17x23x16mm

Needle Roller Bearing for Fitness Equipment

HF172316 Needle Roller Bearing with Warranty

Product Description

HF172316 One Way Needle Roller Bearing 17×23×16mm for Fitness Equipment

Product Overview

HF172316 is drawn cup one-way needle roller clutch bearing. It locks torque in one rotation direction and freewheels reversely. Built with stamped outer cup, GCr15 needles and spring assembly, compact size for unidirectional overrunning applications.

*Need a quick quote? Just send us your bearing model & quantity — we’ll get back to you fast.

Key Specifications

Item	Spec
Model	HF172316(HF1716)
Bore(d)	17 mm
Outer Diameter(D)	23 mm
Width(B)	16 mm
Structure	Drawn cup, single row one-way clutch
Material	Stamped steel outer cup, GCr15 needle rollers, nylon retainer & spring
Function	One-way locking, overrunning torque transmission
Dynamic Load(C)	7.2 KN
Static Load(C0)	9.8 KN
Application	Fitness equipment, conveyor, small motor, textile machinery

Main Features

One-way locking & overrunning freewheel
Thin drawn cup structure, compact radial installation
GCr15 needle rollers, stable torque transmission
Integrated spring & retainer, simple assembly
Low friction, reliable unidirectional control
Ready stock, support OEM

Typical Applications

Fitness gym equipment
Small motor overrunning clutch
Conveyor anti-reverse mechanism
Textile machinery
Packaging & printing auxiliary devices

*Ready stock. Short lead time. Fast delivery. Send us your bearing list and let’s get started!

Why Choose GQZ Bearing

30 years professional bearing industry experience
ISO certified strict quality inspection
Flexible OEM & private label customization
3-5 days fast delivery for stocked bearings
Full bearing series, universal interchangeable size
Factory direct price & reliable after-sales service

HF172316 One Way Needle Roller Bearing 17×23×16mm for Fitness Equipment

FAQ

Q1: What is HF172316 bearing?

A: HF172316 is drawn cup one-way needle roller clutch bearing for unidirectional torque transmission and anti-reverse rotation.

Q2: Dimension of HF172316?

A: 17×23×16mm, also marked as HF1716.

Q3: Can it bear heavy radial load?

A: Mainly for one-way clutch function, limited radial load. Use with matched support bearing for heavy radial working condition.

Q4: Material of HF172316?

A: Stamped steel outer cup; GCr15 needle rollers; nylon retainer with spring.

Q5: What is the working principle?

A: Lock shaft in one direction and free rotation in reverse to prevent backspin.

*Need custom bearings? Share your drawings, specifications or requirements — we’ll find the right solution for you.
