LEF218-2F 4-Bolt Flange Bearing, Eccentric Lock, Double 2F Mud-Proof Seals

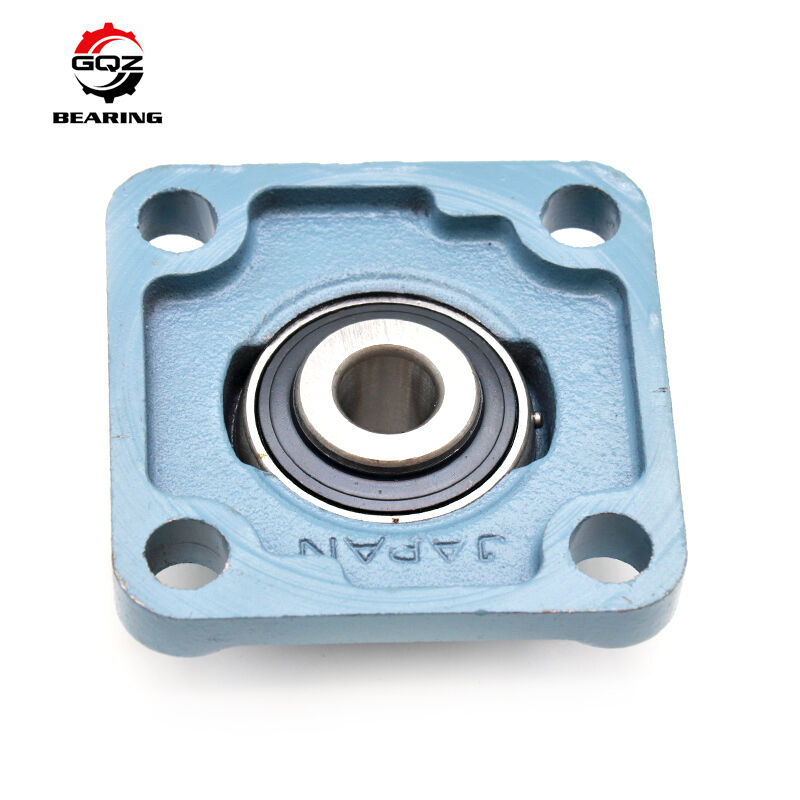

LEF218-2F four-bolt square cast iron flange bearing unit, matched with YEL218-2F double extended inner ring eccentric lock insert bearing. Double-sided 2F composite seal adopts metal flinger + NBR lip two-stage barrier to block mud, crop residues, heavy dust and cooling water splashes. Eccentric locking collar tightly clamps double extended inner ring for stable single-direction rotation under long heavy vibration. Spherical outer ring offers ±2.5° self-alignment to compensate shaft assembly misalignment. Side grease nipple supports periodic supplementary lubrication. Widely used for large grain harvesters, heavy belt conveyors, grain sorting lines and heavy feed processing equipment. Get quotation within 24 hours

1. Dual 2F anti-fouling sealing system: Outer metal flinger throws mud clumps via centrifugal force; inner rubber lip blocks fine dust and water mist, far superior anti-mud performance than single 2S rubber seals for muddy outdoor working conditions.
2. Eccentric collar delivers uniform full-circle clamping force, reliable anti-loosening under continuous heavy vibration, no scratches on shaft surface, specially designed for fixed single rotation heavy equipment.
3. HT200 grey cast iron square flange housing, high integral rigidity, thick wall anti-impact, quick bolt mounting and disassembly for easy routine maintenance.
4. ±2.5° self-aligning spherical outer ring eliminates assembly offset internal stress, reduces abnormal bearing friction, wear and running noise.
5. Reserved side grease fitting hole for regular grease replenishment, extends bearing service life and cuts equipment shutdown maintenance downtime.
6. GCr15 fully heat-treated bearing steel, high dynamic & static load capacity, excellent wear resistance and impact resistance for long-hour non-stop heavy-duty operation.
7. Standard unified metric dimensions, fully interchangeable with single-seal LEF218 for direct heavy mud-proof sealing upgrade.

Reduce maintenance frequency and guarantee stable long-term operation of heavy farm & industrial machinery

Large grain harvesters, heavy field rotary tillers Heavy-duty belt conveyors, grain drying & sorting production lines Large feed processing equipment, light mining transport rollers Dusty, humid, muddy indoor and semi-outdoor heavy production equipment

Dimension drawings and spec sheets can be provided upon request

25+ years professional manufacturer of 2F sealed eccentric lock four-bolt flange bearing units. Every batch passes mud resistance aging, vibration endurance and heavy load durability tests before delivery. Support OEM custom anti-rust coating, housing paint color and sealing upgrade schemes. Fast formal quotation and one-on-one professional installation technical support within 24h for all RFQs. Stable mass production capacity to meet long-term bulk order demands from global machinery manufacturers.

Factory direct price, consistent stable quality and on-time batch delivery for overseas buyers

• Raw GCr15 bearing steel hardness & chemical composition inspection
• HT200 cast iron housing tensile strength & toughness test
• High-precision raceway grinding surface roughness inspection
• 2F double composite seal mud splash cycle aging durability test
• Eccentric collar anti-slip vibration impact test
• Low-noise continuous rotation heavy load performance test
• Full dimension sorting & 100% visual appearance inspection before packing

All LEF 218 2F bearing units pass multi-process strict quality inspection before shipment

2F two-stage composite seal first repels large mud blocks by centrifugal metal flinger, then isolates tiny dust and water mist with inner rubber lip, effectively preventing mud intrusion for outdoor agricultural machines working in muddy fields.

Heavy equipment with 4-hole flat mounting base running in fixed single rotation, such as large harvesters, heavy conveyors and grain processing machines exposed to mud and dust.

Yes, inner bore, outer diameter and flange mounting dimensions follow unified international metric standards, no modification to equipment mounting base during replacement.
