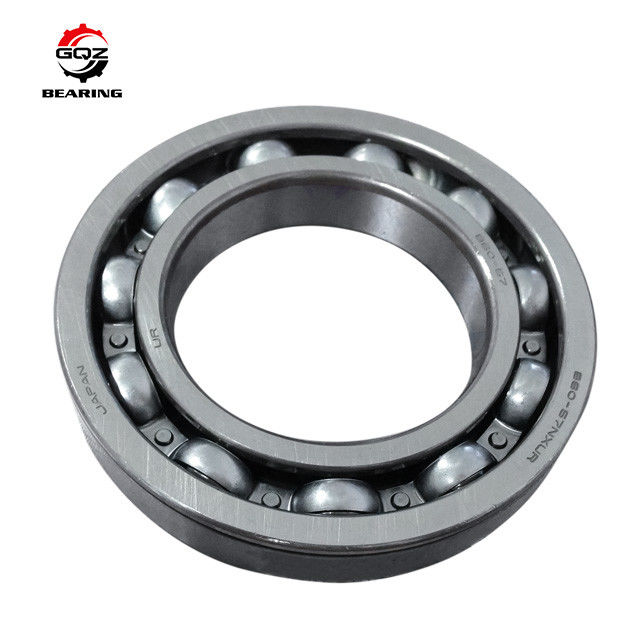

HTFB31-16A1 Open Deep Groove Auto Gearbox Bearing

HTFB31-16A1 non-standard open deep groove ball bearing, size 31×80×16mm, upgraded version of HTFB31-16 for auto manual and automatic gearbox differential and intermediate shafts. Open design without rubber seals, matched stamped steel cage and C0 standard clearance. It bears radial load and slight bidirectional axial load, stable low-noise high-speed operation under frequent shifting vibration. Made of fully quenched high-purity GCr15 steel with tighter dimensional tolerance, fully interchangeable with original HTFB31-16A1. Complete formal quotation will be provided within 24 hours upon inquiry.

• Open design enables smooth gear oil circulation and good heat dissipation, no rubber seal aging risk under long-term high temperature oil soaking
• Optimized superfinished raceway, lower friction coefficient, stable running under continuous gear shifting impact
• High-hardness purified GCr15 steel with excellent wear and fatigue resistance, prolong transmission service life
• Upgraded dimensional tolerance for higher assembly matching accuracy, direct replacement without modifying gearbox parts
• Light stamped steel cage reduces rotation inertia, fits continuous medium-high speed transmission working conditions
• Standard P0 precision, P6/C3 clearance customizable to meet vehicle OEM assembly standards

Passenger car gearbox differential shafts, vehicle transmission intermediate shafts, light commercial vehicle reducers, small agricultural machinery transmission components.

25+ years professional manufacturer of HTFB series non-standard vehicle gearbox bearings. All finished bearings pass high-speed rotation, shock load and fatigue durability tests before delivery. Support customized anti-rust coating and high-temperature gearbox lubricant filling service. One-on-one installation technical guidance and fast quotation within 24h for all RFQs. Stable mass production supports long-term bulk orders for machinery factories and global distributors, factory direct price, stable quality and on-time batch delivery.

• Raw steel hardness & composition incoming inspection
• Raceway high-precision superfinishing roughness detection
• Open bearing oil circulation high-temperature aging test
• Vibration high-speed fatigue rotation test
• Full dimension tolerance sorting inspection
• 100% visual appearance check before packaging
• Random sampling performance test before shipment
• All HTFB31-16A1 bearings pass multi-process strict factory inspection.

Send bulk inquiry for HTFB31-16A1 open transmission bearings and obtain:

1. Complete formal detailed quotation within 24 hours
2. Standard dimension drawings & press-fit installation guidance
3. Custom anti-rust treatment and special gearbox lubricant filling service
4. Exclusive long-term bulk factory wholesale price without intermediate markup

Large-volume OEM cooperation is welcome anytime.

Q1: What is the difference between HTFB31-16A1 and HTFB31-16?
A1: HTFB31-16A1 adopts tighter dimensional tolerance control, higher assembly precision, suitable for high-precision gearbox matching requirements.
Q2: Difference between open bearing and rubber sealed bearing?
A2: Open structure has no rubber seals, relies on circulating gear oil for lubrication and cooling for internal gearbox positions; sealed bearings apply to external dusty shafts with grease lubrication.
Q3: Can HTFB31-16A1 replace original bearing directly?
A3: Yes, inner bore, outer diameter and width dimensions are fully consistent, no modification to gearbox housings or shafts needed.
